i5 All-Americas TV Antenna System

The i5 is a significant addition to Intellian's TVRO product lineup and has also created another size category for marine satellite TV systems. The unique form factor is directly addresses the needs of offshore cruising vessels ranging from 40-60' in length.

The radome diameter of the i5 is 61cm (24") and it delivers extended coverage with a compact size. Intellian's signature iQ2 technology delivers quicker and quieter signal tracking and simple installation for the ultimate customer experience. The system's Wi-Fi enabled antenna control unit (ACU), provides the option to manage the system wirelessly via PC or Mobile Device, using Intellian's graphically intuitive control application, Aptus.

Features:

Just the Right Fit

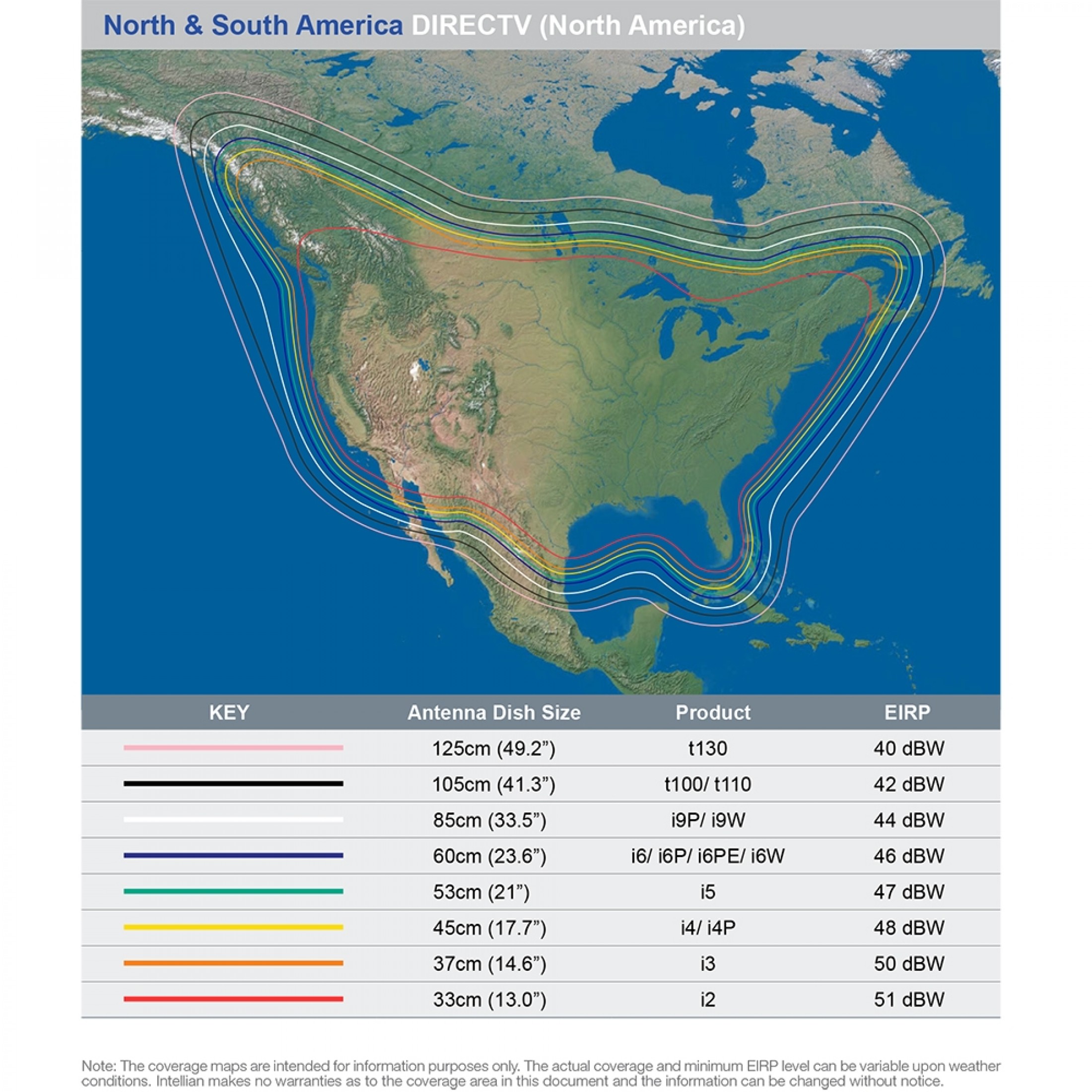

The i5 is the world's first 20" satellite TV antenna purpose built for offshore cruising vessels in the 40-60' range. It's performance enables reception of TV service throughout the Bahamas, Caribbean and Mexico, while it's size is better suited for vessels under 60' in length.

Simple & Easy installation

With a single cable to connect the antenna and the ACU, the i5 system is quick and easy to install. Our intuitive ACU features a front panel display with functional keys and requires minimal setup so you can begin to enjoy TV programs in no time.

SWM-16 Kit - 16 CH Single Wire Multi-Switch (SWM)

Allows any transponder from DIRECTV 99/101 and 103/119 satellites to be independently selected and distributed via one of eight designated SWM output frequencies. Two output channels provides two outputs of 8 transponders for a total of 16 tuners.

Features:

• Die-cast housing is suitable for both indoor and outdoor use
• Flex-Port input allows for integration of the DTV95 international programing satellite

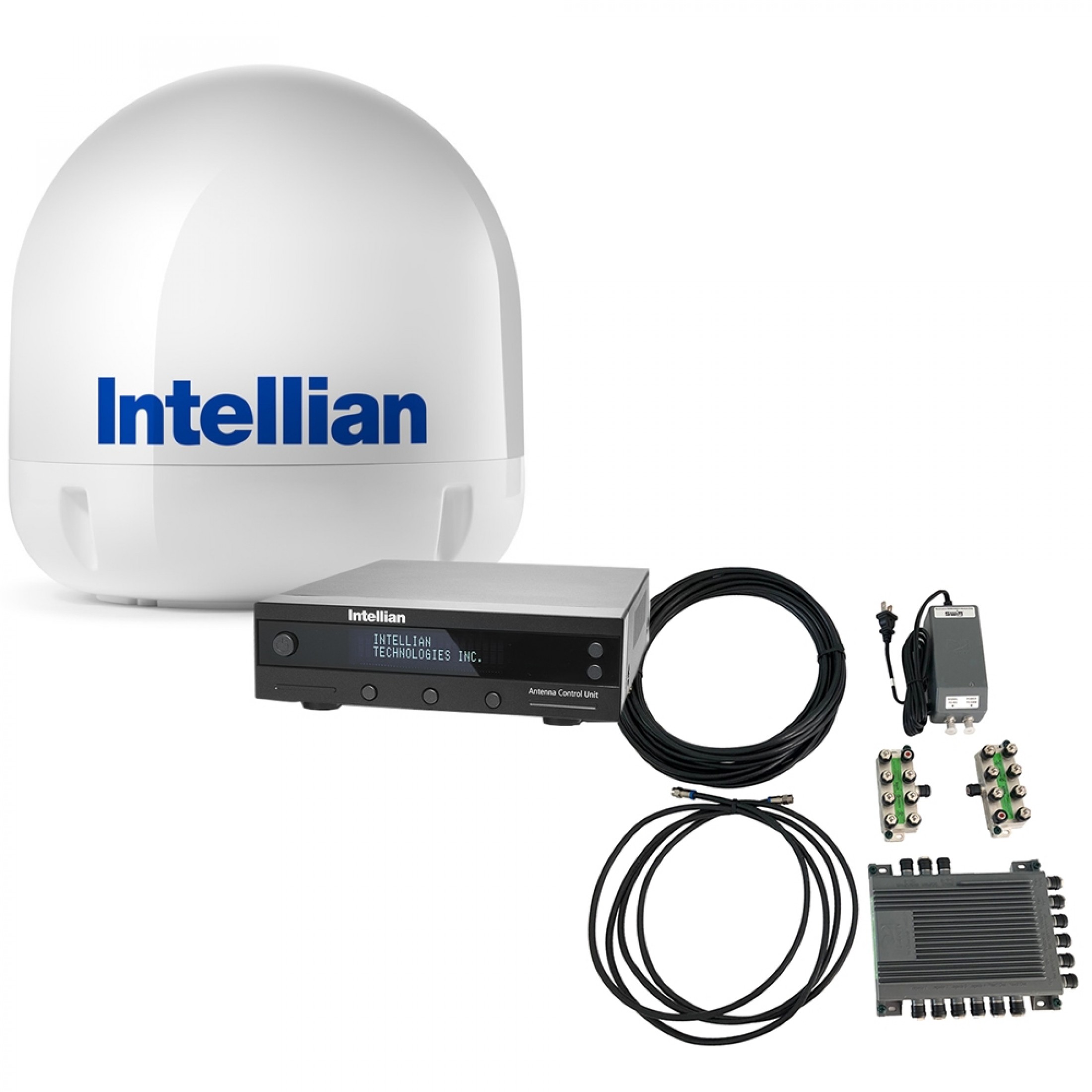

SWM-16 Kit includes the following components:

• 1x DTV SWM16 Multiswitch (Green Label)
• 1x DTV 29v SWM power inserter (Grey model)
• 2x DTV 8-Way SWM splitters (Green Label)
• 1x 15M RG6 75Ohm Coax (Solid Copper Core)
• 1x 3M RG6 75Ohm Coax (Solid Coper Core)

*Note: The compatibility with the various DTV satellites does not indicate all will be available on every installation. The available DTV satellites will depend on the antenna used.
