GPSMAP® 1042xsv with GMR 18HD+ Radar & GT52HW-TM

GPSMAP®1042xsv

Experience an advanced all-in-1 solution with our 10-inch GPSMAP® 1042xsv keyed combo. Features a large, bright screen coupled with a keypad interface and multifunction control knob. Comes with built-in Garmin CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar. Supports Panoptix™ all-seeing sonar, premium Garmin sonar Modules and a wide range of transducers (sold separately). Enjoy built-in wireless for Garmin mobile apps. Garmin Marine Network support allows sharing of sonar, maps, user data, radar, IP cameras and Panoptix sonar among multiple units. Plus, there's NMEA 2000® and NMEA 0183 support for network connectivity, including autopilots, digital switching, weather, media, VHF, AIS and other sensors. These units also include integrated ANT® support for use with quatix® 3 marine watch, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls. Preloaded premium mapping features include both U.S. LakeVü HD maps and BlueChart® g2 HD charts plus Quickdraw Contours software and the Quickdraw Community on Garmin Connect™ online network.

Features:

• Large, bright 10-inch screen with keypad interface and multifunction control knob
• Built-in Garmin CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar (transducers sold seperately)
• Supports Panoptix™ all-seeing sonar and premium Garmin sonar modules
• Built-in wireless capabilities for Garmin mobile apps and VIRB® action camera integration
• Supports Garmin Marine Network; allows sharing of sonar, radar, maps, user data, radar, IP cameras and Panoptix™ sonar among multiple units
• NMEA 2000® and NMEA 0183 support for network connectivity, including autopilots, digital switching, weather, media, VHF, AIS and other sensors
• Preloaded with both US LakeVü HD maps and BlueChart® g2 HD charts
• Includes Quickdraw Contours map drawing software
• Built-in SailAssist features, including laylines, race features, set and drift, wind data and more
• Integrated ANT® support for use with quatix® 3 marine watch, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls

GMR 18HD+ Radar

The streamlined GMR 18 HD+ dome radar delivers 4 kW of transmit power and clear echo definition at all ranges to enhance situational awareness. You can overlay radar images onto your chartplotter map page. However, for best overlay results, an optional autopilot or heading sensor is recommended. MARPA target tracking is also available when combined with a multifunction display and heading sensor (sold separately). Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions. Dynamic Sea Filter automatically adjusts sea clutter depending, on sea conditions. Features 8-bit true color resolution for a clear presentation on your chartplotter screen. The compact GMR 18 HD+ is a good choice for boats with limited room for radar placement.

Features:

• Streamlined 18-inch 4kW dome radar
• Deliver 4kW of transmit power and clear echo definition at all ranges
• Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions
• Dynamic Sea Filter automatically adjusts gain to changing sea conditions
• Overlays the radar image on the chartplotter map page (autopilot or heading sensor is recommended for best results)
• MARPA target tracking when combined with a multifunction display and heading sensor (sold separately)
• Beam angles: 5.0° horizontal, 25° vertical
• Max range: 36 nautical miles
• Minimum range: 20 meters
• Rotation speed: 24 revolutions/minute
• No complex user settings; easy to install and start using

In The Box:

• GPSMAP 1042xsv chartplotter
• Power/data cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable (2 m)
• 8-pin transducer to 12-pin sounder adapter cable
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation
• GMR 18 HD+ radome
• Mounting hardware kit
• Power cable (15 m/49.21 ft)
• Network cable (15 m/49.21 ft)
• Installation instructions
• Mounting template

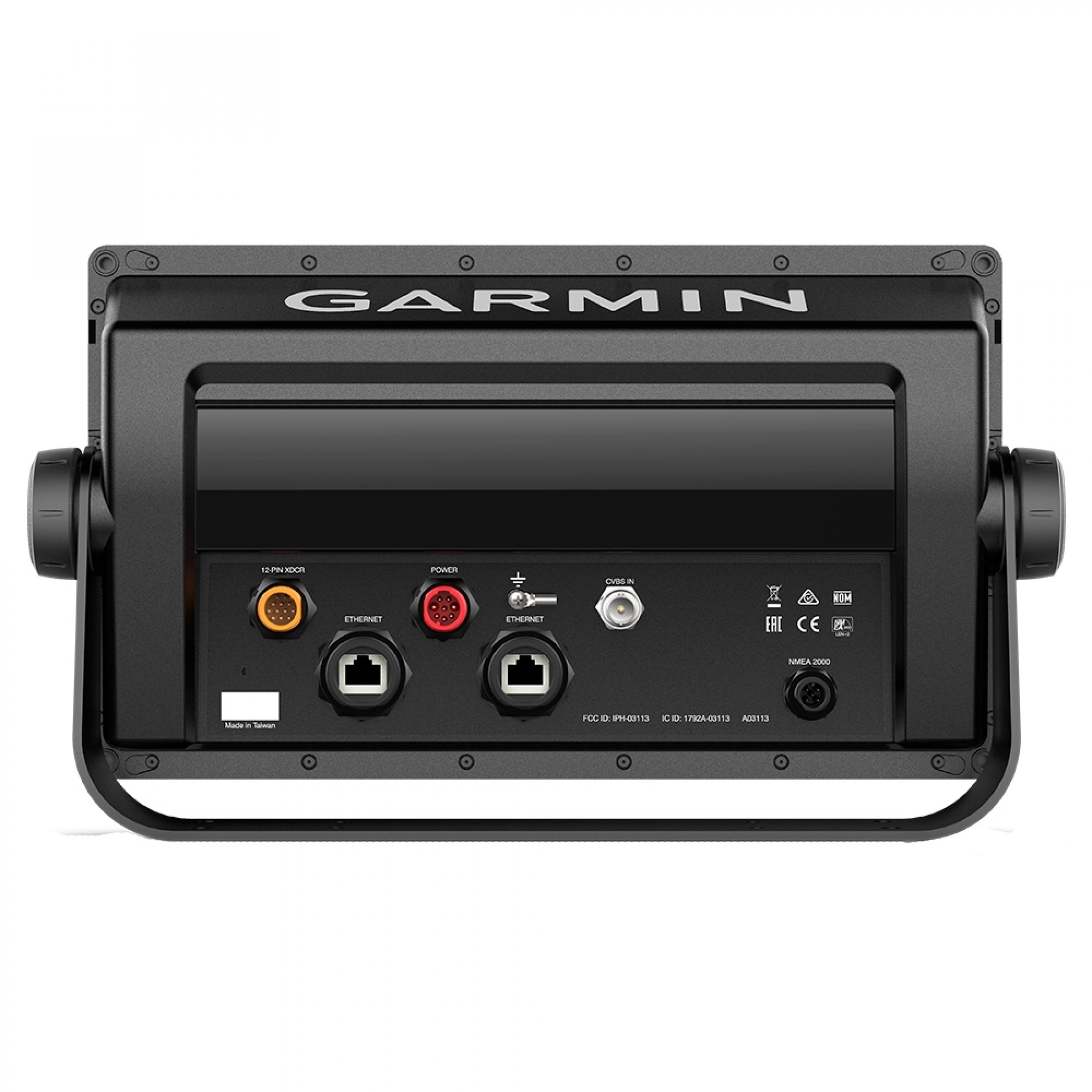

Connections:

• Garmin Marine Network™ Ports: 2
• Transducer Ports: 1 (12 Pin)
• NMEA 2000® Port: 1
• NMEA 0183 Input Ports: 1
• NMEA 0183 Output Ports: 1
• Video Input Ports:  1 BNC
• Video Output Ports: No
• Wireless Connectivity: Yes
