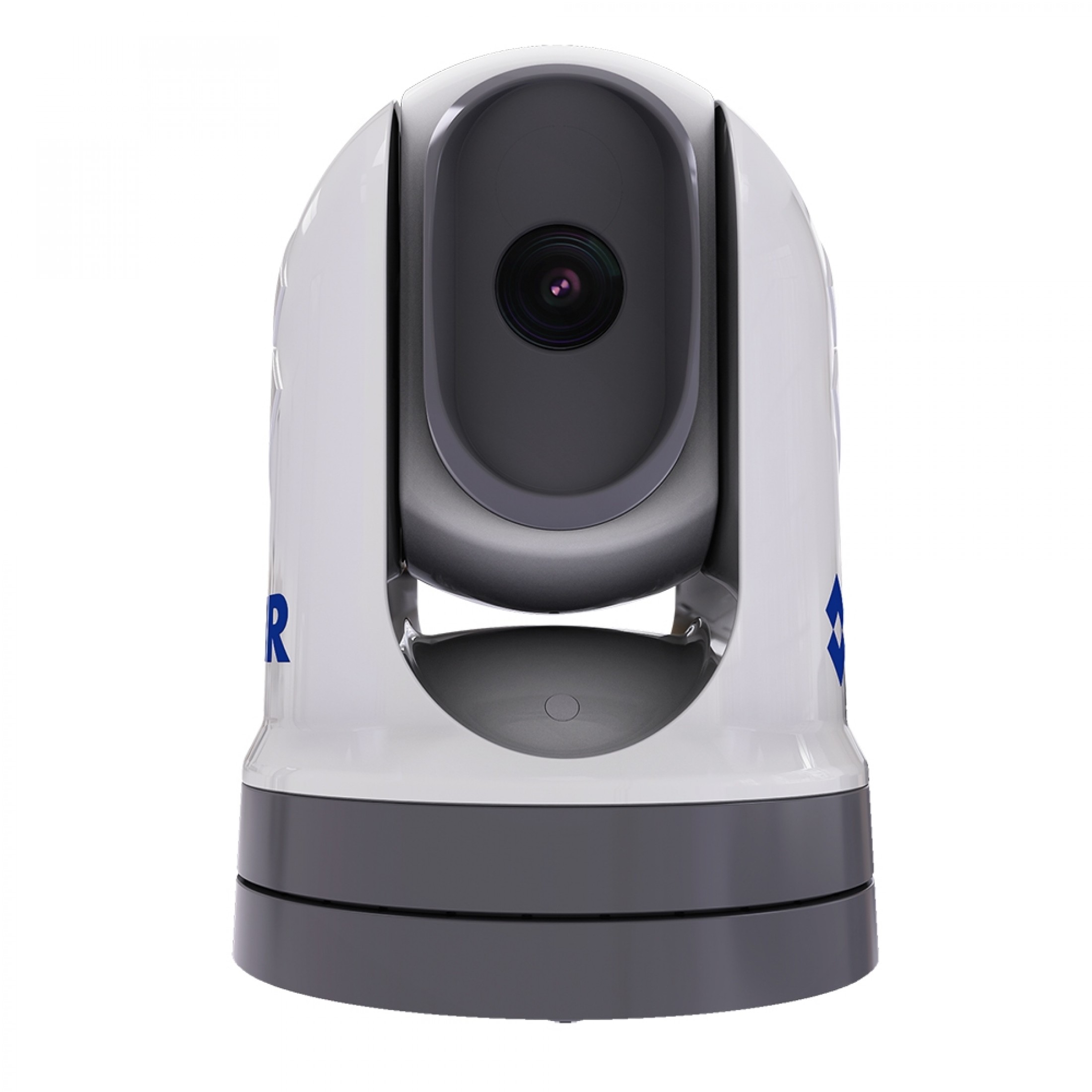

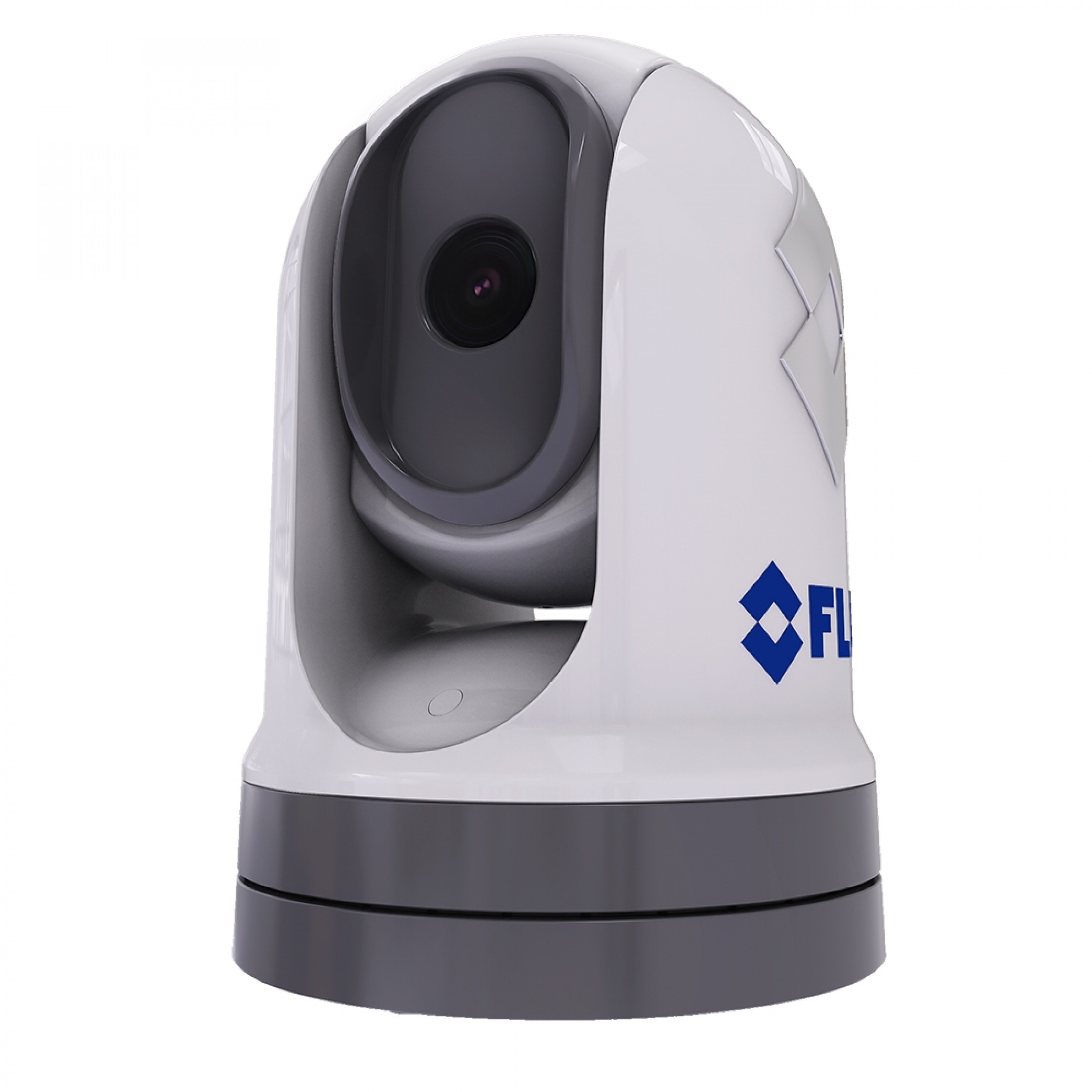

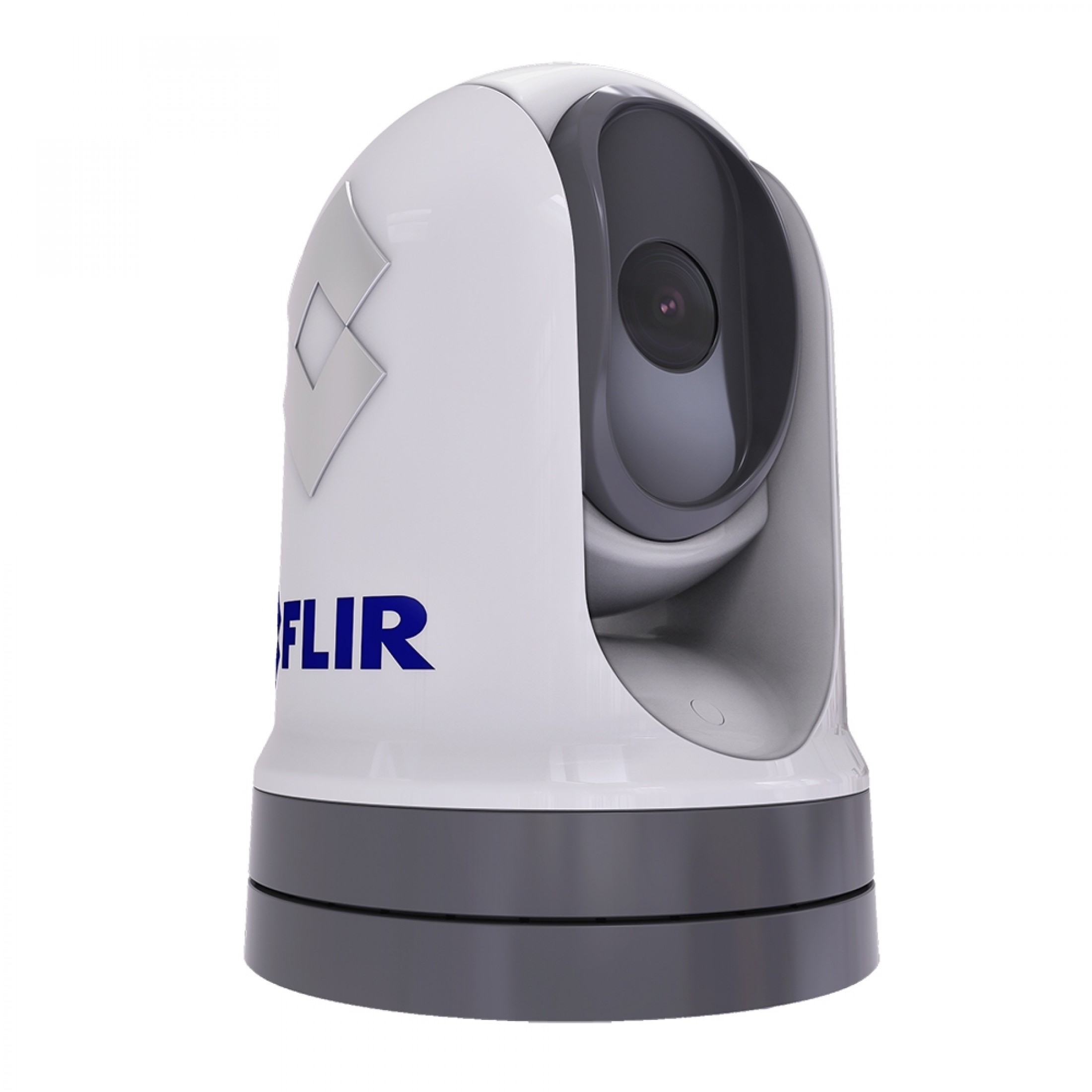

FLIR M332 Single Payload 30 Hz Thermal Camera No JCU 320 x 256 24D HFoV

FLIR M332 Single Payload

Thermal Camera No JCU 640 x 480 24D HFoV

Model: M332

Pairing a rugged, all-weather design with one of the most advanced FLIR thermal imaging cores, the M332 and M364 deliver awareness-enhancing thermal vision for law enforcement, commercial, and recreational applications. Advanced gyro-stabilization and high-performance thermal imaging detect obstacles and targets in complete darkness and heavy seas, allowing safe navigation in the most challenging conditions.

Thermal imaging offers vision in complete darkness, glare, and light fog.

Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.

Exceptional connectivity with navigation and security systems.

Specifications

General
Detector Type	320 x 256 VOx Microbolometer
Field of View	24° x 18°
Image Processing	FLIR Proprietary Digital Detail Enhancement
HD-SDI Lossless Video Output	Yes
Network Video Output	Single H.264 Network Video Stream
Pan & Tilt Adjustment Range	360° Continuous Pan, ± 90° Tilt
Pan/Tilt	Yes
Connections & Communications
Analog Video Output	NTSC/PAL User Settable
Analog Video Connector Types	BNC
Environmental
Automatic Window Defrost	Standard at Power-Up
EMI	IEC60945
Lightning Protection	Standard
Operating Temperature Range	-13°F to +131°F (-25°C to +55°C)
Salt Mist	IEC60945
Shock	15g vertical, 9g horizontal
Storage Temperature Range	-30°F to +158°F (-30°C to +70°C)
Vibration	IEC60945
Water Ingress	IPX6 (heavy seas, power jets of water)
Wind	100 knots (115.2 MPH)
Sand & Dust Ingress	Mil-Std-810E or IP6X
Marine Imaging & Optical
Focus	Fixed 12ft (3m) to infinity
Thermal Imaging
Continuous E-Zoom	8x
Focal Length - Thermal	9.1mm
Video Refresh Rate - Thermal	30 Hz

What's in the Box:

M332 Camera
Camera base-seal
Camera gasket
RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.)
Right-angled RayNet-to-RayNet cable 3 m (9.8 ft.)
Right-angled BNC-to-BNC cable 3 m (9.8 ft.)
Right-angled 3-pin power cable 3 m (9.8 ft.)
Mounting riser
9. 3 x camera fixings: nuts, dome nuts, spring and flat washers, threaded studs

SKU: #229401632860647
Weight: 19.05 lbs
Brand: FLIR Systems

Model: E70527
Shipping Dimensions: 12.00" x 20.00" x 12.00"

Owner Manuals

FLIR M332 Single Payload 30 Hz Thermal Camera No JCU 320 x 256 24D HFoV - Owner Manual
