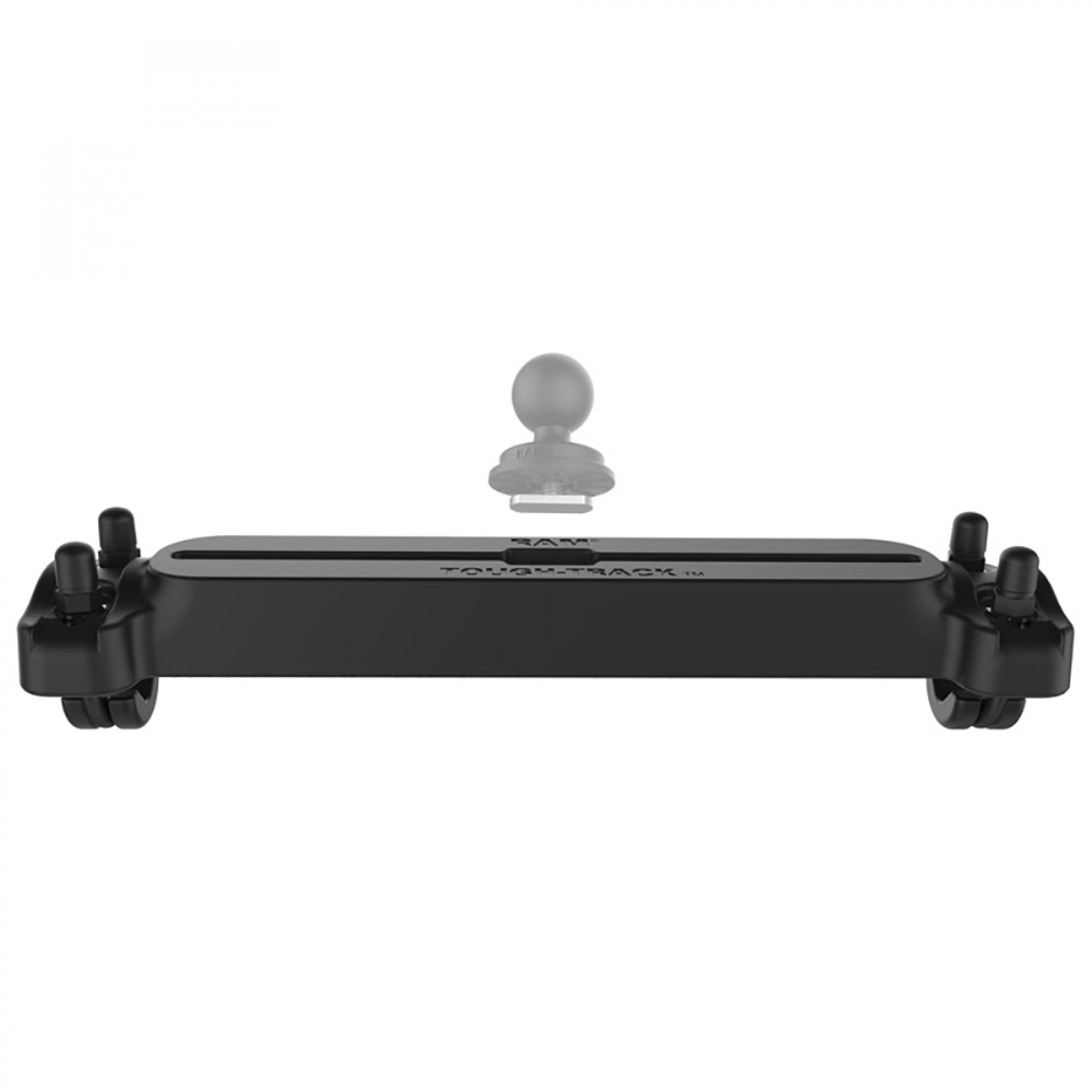

RAM® Tough-Track™ - 12" Track f/5/8" - 1-1/4" Rails

With the RAM® Tough-Track™ for tubes, bars, and rails, create an ideal track mounting surface compatible with a wide variety of RAM® Track Ball™ mounts and components. This 12” RAM® Tough-Track™ features a two-hole AMPS hole pattern on the side for attaching a RAM® diamond base. All necessary U-bolt hardware is included to attach the RAM® Tough-Track™ from 5/8” to 1 1/4” tubes, bars, and rails. Hardware for attaching to a 1 ½” tube, bar, or rail is available separately. Other options for attaching to irregular shaped rails include the RAM® Torque™ and strap clamp.

Hardware Included:

• (2) 1/4"-20 x 1.75" U-Bolts
• (2) 1/4"-20 x 2.5" U-Bolts
• (2) U-Bolt Spacers
• (4) #12 Stainless Steel Washers
• (4) 1/4"-20 Nylock Washers
• (4) Rubber Caps

Dimensions:

• Inside Track Length: 9"

Clamp Range:

• .625" - 1.25" diameter

Materials:

• High strength composite
