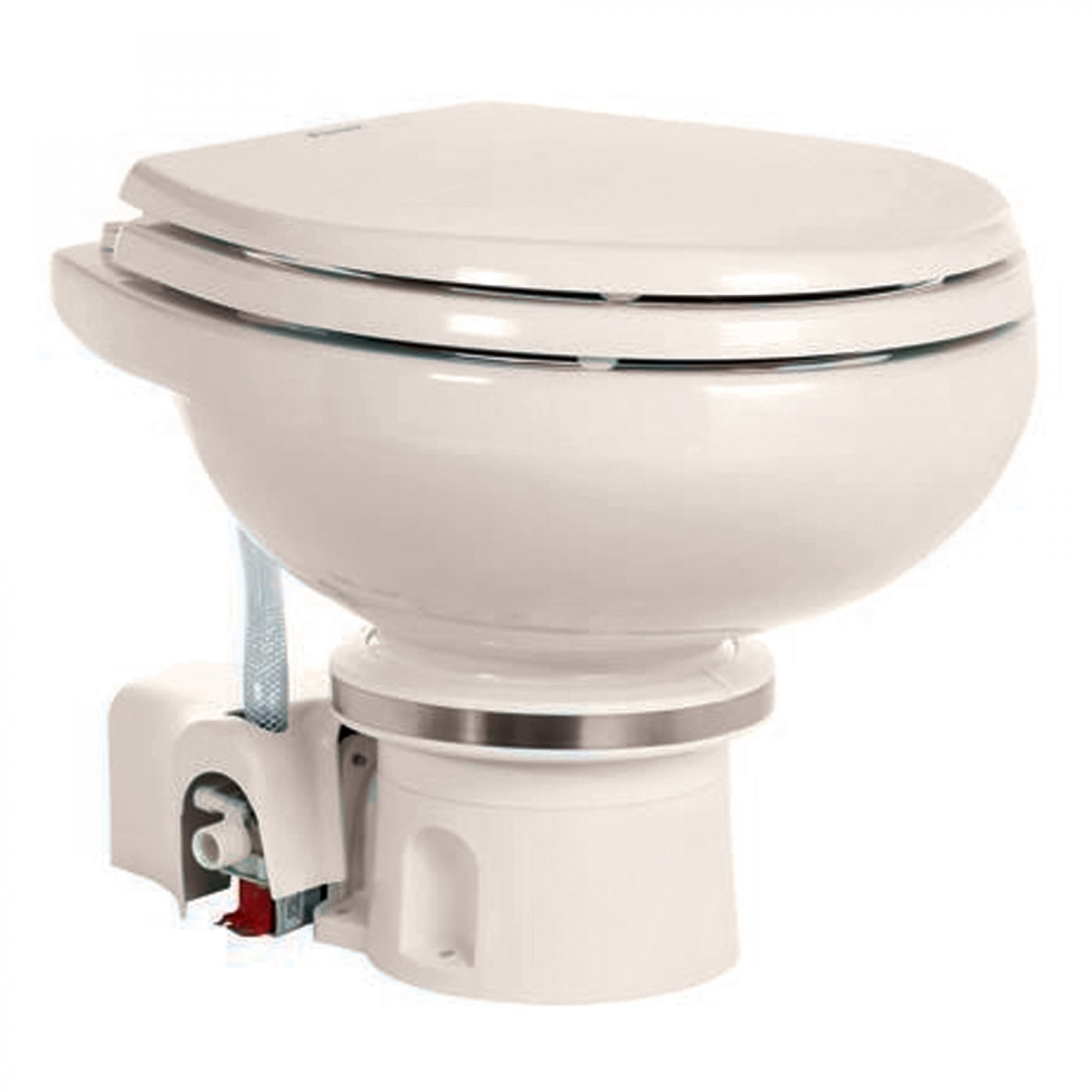

MasterFlush 7120 Bone Electric Macerating Toilet with Orbit Base - Fresh Water

MasterFlush 7100 series toilets, featuring an omnidirectional rotating base, provide the only full 360 degrees of bowl-to-base rotation in a basic macerator toilet. The base can be positioned in any configuration to maximize even the smallest installation space, all while providing a residential-size seat and bowl.

Employing the same large enameled seat and deep ceramic bowl size of a residential round-front toilet, the 7100 toilet series introduces a new path to better comfort for owners of small boats. Smoothly contoured seat-to-bowl design conveys an expensive look - without the extra cost. And the deep, rounded slope adds not only to the appearance, but also to splash-resistance during use and while underway.

As with all Dometic MasterFlush toilets, the 7100 series assures trouble-free, odor-free performance by virtue of its unmatched maceration effectiveness.  A rugged, glass-filled nylon twin impeller instantly draws effluent into the macerating chamber, where the 10-bladed stainless steel cutting wheel pulverizes waste and ejects it to the discharge line/holding tank.

It's also perfect for retrofitting.

Benefits:

• Dual-stage impeller/macerator fully processes waste for thorough pump-out
• Full 360-degree ORBIT bowl-to-base rotation allows limitless base positioning in small spaces and diverse layouts
• Small footprint - fits in most any head compartment
• Uses as little as 1/3-gallon (1.2 l) per flush
• Comes with DFS-1F Flush Switch

Technical Specifications:

• Water Supply - Onboard Fresh Water
• Toilet technology - Macerator
• Method of operation - Flush switch
• Height - 14.75"
• Width - 15"
• Depth - 19"
• Input voltage - 12V
• Circuit breaker fuse - 25AMP

In the Box:

• Macerator toilet
• Single-function flush switch DFS-1F
• 1.5" Discharge fitting
• Floor mounting hardware kit
• Water supply hose kit
• Installation instructions, operating manual, quick-start guide

Legacy P/N 304712003
