Furuno GP170 5.7" Color GPS Imo Approved

$2,964.50 (Available - Call for Info 877-999-3699)
Furuno
Reviews (0)

Furuno GP170 5.7" Color GPS Imo Approved

$2,964.50 (Available - Call for Info 877-999-3699)

Furuno GP170 IMO Color GPS

Model: GP170
  • Augmentation to enhance precision by utilizing SBAS
  • Full compliance with IMO MSC. 114 (73) and IEC 61108-4
  • 10 Hz (0.1 second) position update rate making steady own ship tracking possible
  • Front... Read More...

SKU: #299541632861191 | Model: #GP170

Share:

Description Returns

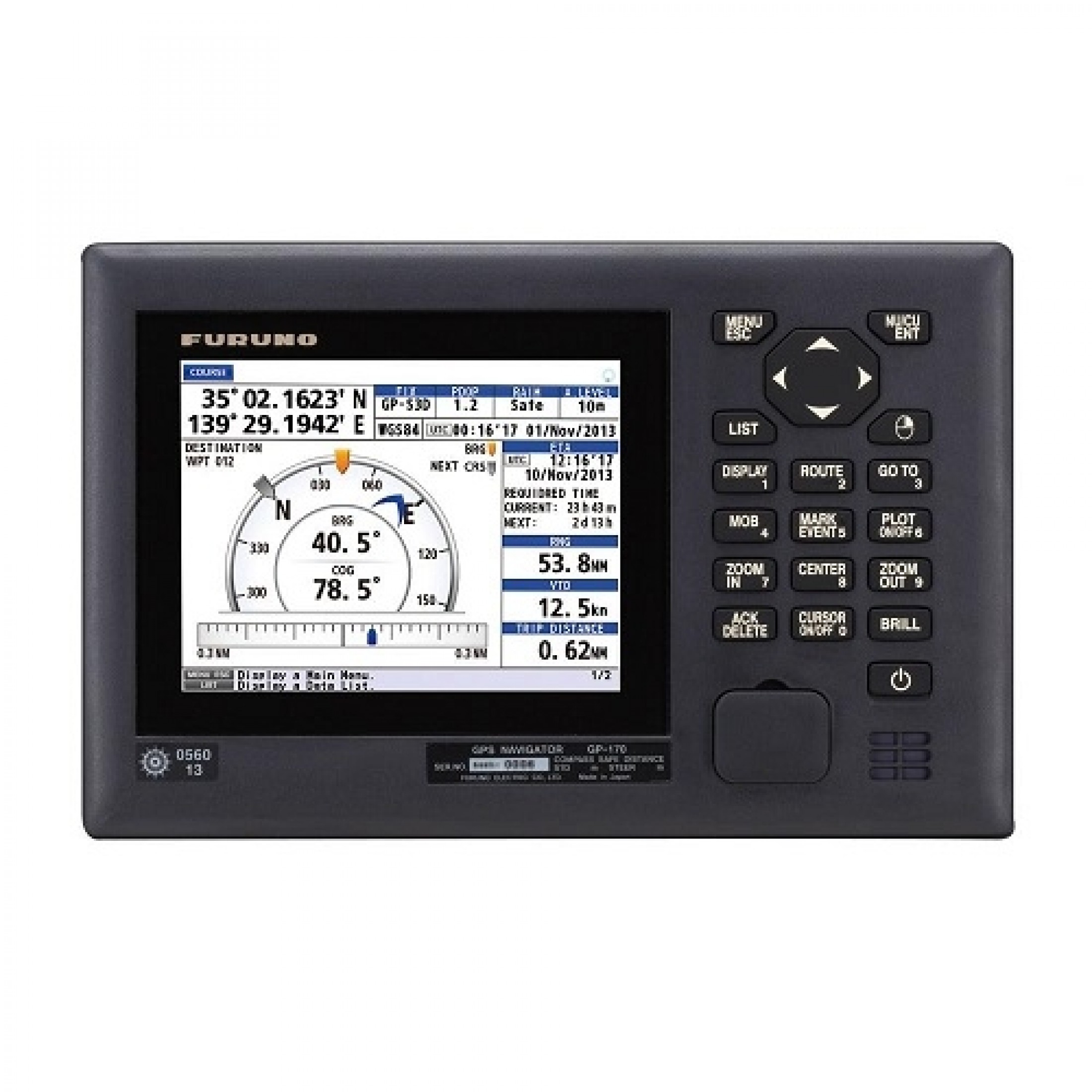

Furuno GP170 IMO Color GPS

Model: GP170
  • Augmentation to enhance precision by utilizing SBAS
  • Full compliance with IMO MSC. 114 (73) and IEC 61108-4
  • 10 Hz (0.1 second) position update rate making steady own ship tracking possible
  • Front panel USB port for export/import of routing data, menu settings and user settings
  • BAM (Bridge Alert Management) ready
  • LAN interface for efficient network integration into bridge system (IEC 61162-450)
  • Simplified menu operation
  • Enhanced route planning/management function

Furuno’s GP170 is a highly stable and reliable position fixing system for ocean going ships, large yachts, ferries and commercial vessels. It is an ideal position sensor for Radar, AIS, ECDIS, Autopilot, Echo Sounder and other navigation and communications equipment. Its newly designed GPS chip and antenna deliver enhanced stability and precision in position fixing. Noise rejection capabilities are incorporated in the new receiver, delivering anti-jamming function as well as a high level of tolerance towards multi-path mitigation. Tolerance towards multi-path mitigation is further enhanced when the GPA020S or GPA021S antenna unit is utilized.

A variety of display modes are available including Plotter, Course, Highway, Data and Integrity. The Integrity display mode delivers a highly accurate Skyplot presentation of currently viewable satellites, status on GNSS/SBAS signal reception including strength and SNR, and elevation angles of available satellites, as well as detailed information about available beacon stations.

Specifications
Receiver
Number of ChannellsGPS:12Ch
SBAS 2 Ch
AccuracyGPS - Not exceeding 10m (2 drms, HDOP <4)
WAAS - Not exceeding 3m (2 drms, HDOP <4)
MSAS - Not exceeding 7m (2 drms, HDOP <4)
Trackign velocity1,000 kn
Position fixing time90 seconds when cold start
Position update rate1 second standard, 0.1 sec max
Display unit
Screen size5.7" color LCD
reslution640 x 480
Brightness700 sc/m2
Display modesPlotter, highway, course, data, integrity
Memory1,000 points for ship's track with comments up to 20 characters; 2,000 points for waypoints; 100 routes 9 containing upt o 1,000 waypoints per route)
AlertDifferential positioning interruption, HDOP overshoot, own ship positioning fail, own ship position lost, BEACON signal lost, Beacon malfunction, antenna short-circuit
NoticeArrival and anchor watch, XTE, Speed, Trip
Integrity indicationSafe, Unsafe, Caition
PortsSerial ports: 2 ports (In/Out), 1 port (Out) IEC 61162-1, 1 port (in/Out) IEC 61162-2; Ethernet: 1 port IEC 61162-450; USB 1 port ( front panel)
Envirioment
Input Voltage12-24vDC
Dimensions9.84" w x 6.29" H x 3.5" D

What's in the Box:
  • GP170 Display
  • GPA017S Antenna
  • 15m Antenna cable
  • Powercord
  • Operators Manual
  • Installation Manual
  • Operators Guide
  • Fuse 3A
  • Cable Tie
  • Self tapping screw x 4
  • LCD Cleanign cloth

  • SKU: #299541632861191
  • Weight: 11.90 lbs
  • Brand: Furuno
  • Model: GP170
  • Shipping Dimensions: 0.00" x 0.00" x 0.00"
