Humminbird HELIX5 Chirp GPS 5" WVGA Sonar GPS G2

Humminbird Helix 5 CHIRP GPS G2

Model: 410210-1
UPC: 082324049026

Exclusive Multi-Range Chirp -- View low, mid and high Chirp ranges, either individually or all at once.
SwitchFire Sonar -- Take command of how your sonar returns appear with our Clear and Max Modes.
Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
GPS antenna built into the head unit
Up-gradable Software -- Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section of the site.
The Humminbird UniMap is a built-in map covering the contiguous US coastline, inland lakes and rivers at 30 meters per pixel resolution.
Make a map where there is no map. Our patent pending AutoChart Live allows you to create digital, detailed maps live and on the water. You can also use it to enhance your existing charts.
Micro SD Card Reader - Use for advanced cartography or to save screenshots, sonar recordings and waypoints or to update your units software
SmartStrike takes you straight to the action by showing you where the fish are biting at any given moment.

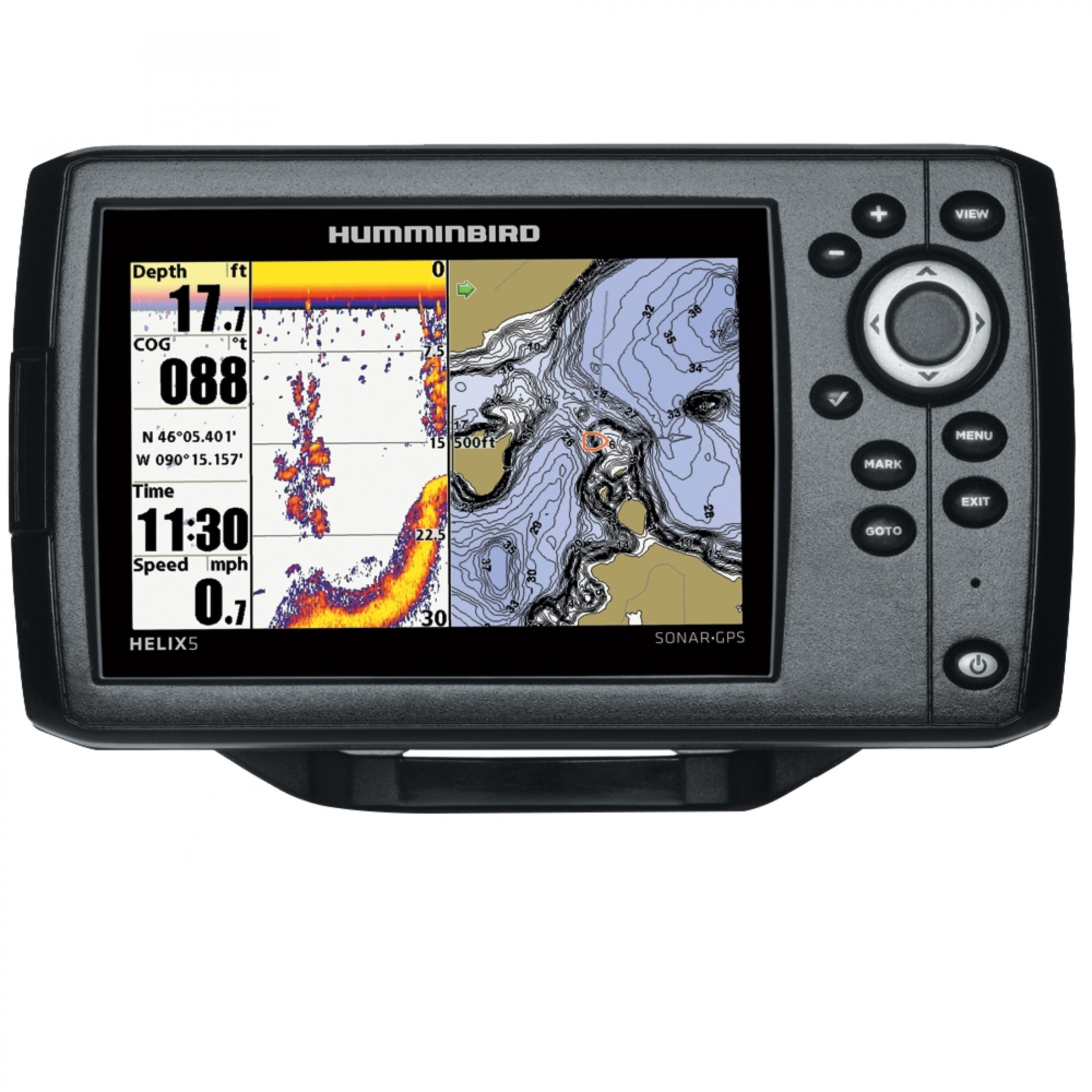

?The HELIX 5 CHIRP GPS G2 with our new user interface and operating system, features ?a brilliant 800H x 480V, 5" 256 color display with backlight. CHIRP DualBeam PLUS sonar with 4000 watts PTP power output, Precision Internal GPS Chartplotting with built-in UniMap cartography with a micro SD card slot for optional maps or for saving waypoints. Maximize your angling experience with the Humminbird HELIX 5 CHIRP GPS G2 fishfinder system.

CHIRP Frequencies (Out of Box Transducer)
83 kHz: 75-95 kHz
200 kHz: 175-225 kHz

Maximum Depth: 1500 feet

Specifications

Display size	5"
Display resolution	800 x 480
Display type	Color TFT
Display colors grayscale	16-bit
Standard sonar	CHIRP/DualBeam PLUS
Standard sonar coverage	20° & 60° @ -10db
Standard sonar frequency	200/83 kHz
Target separation	2.5in
Power output RMS	500 watts
Power output Peak to Peak	4000 watts
Depth capability	1500 ft
Temperature	Built-in transducer
Speed	GPS Spped
Backlight	LED
GPS receiver	Yes
GPS Tracking	Yes
GPS chartplotting	Yes
Waypoints, routes, track/points	2,750, 47, 50/20,000
Optional mapping	Humminbird, navionics+, Navionics Platinum
Switchfire sonar	Yes
Split screen zoom	Yes
Split screen bottom lock	Yes
Large digit view	Yes
Card slots	1 Micro SD
Input Voltage	10.8-20 VDC
Input Draw	600mA
Dimensions	Gimbal Mount:7.55"W x 4.64"H x 3.3"D Indash Mount:7.55"W x 4.28"H x 1.13"D

What's in the Box:

Helix 5 CHIRP GPS G2
Bracket
Powercord
XNT 9 20 T transom mount
Documentation

SKU: #308861632859425
Weight: 3.60 lbs
Brand: Humminbird

Model: 410210-1
Shipping Dimensions: 0.00" x 16.00" x 10.00"
