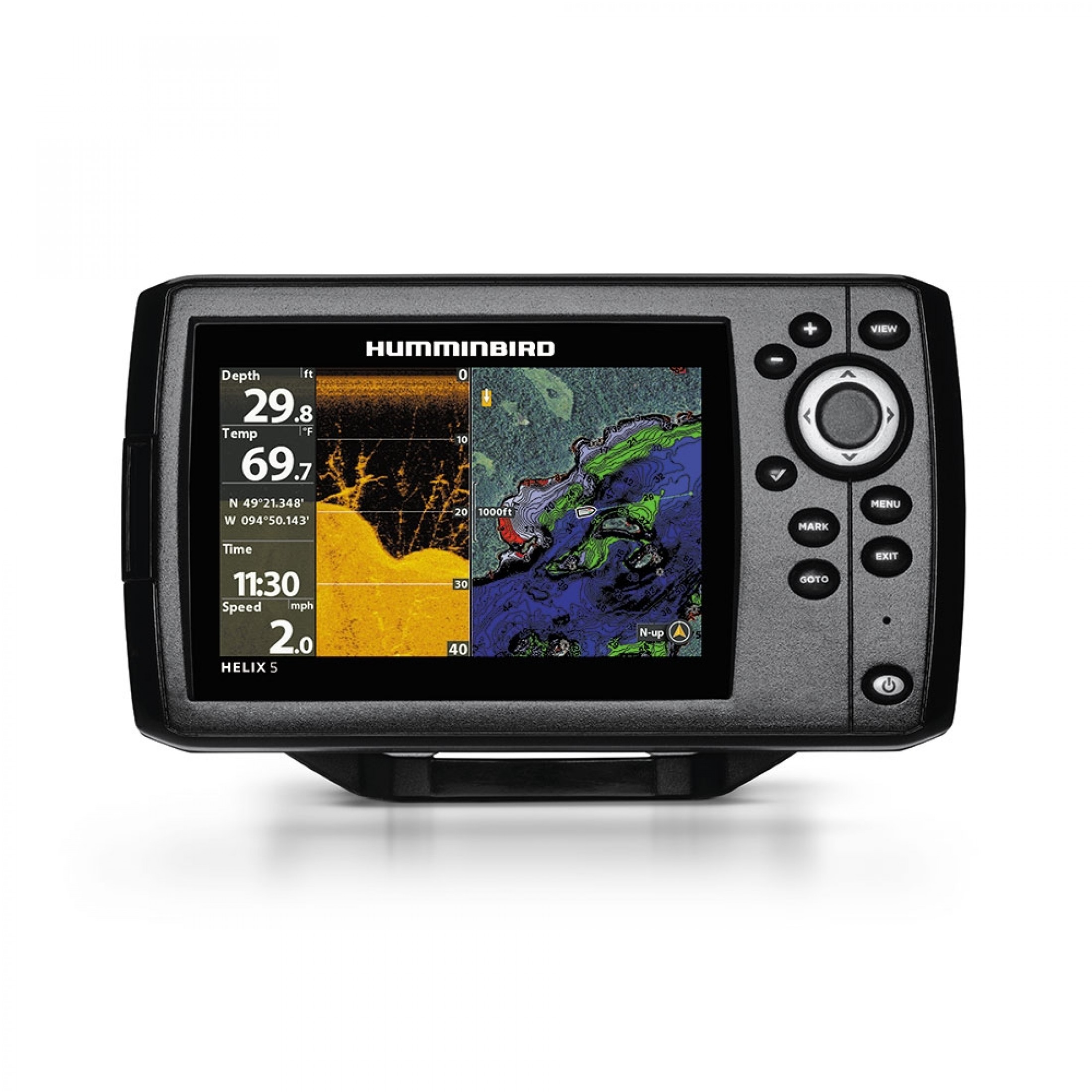

Humminbird HELIX5 Chirp DI 5" WVGA Sonar GPS G2

Humminbird HELIX 5 CHIRP DI GPS G2 Fishfinder Chartplotter

Model: 410220-1
UPC: 082324049040

Exclusive Multi-Range Chirp -- View low, mid and high Chirp ranges, either individually or all at once.
Down Imaging Sonar -- Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves.
SwitchFire Sonar -- Take command of how your sonar returns appear with our Clear and Max Modes.
DualBeam Plus Sonar - Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
Internal GPS - GPS antenna built into the head unit
Up-gradable Software -- Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section of the site.
The Humminbird UniMap is a built-in map covering the contiguous US coastline, inland lakes and rivers at 30 meters per pixel resolution.
Micro SD Card Reader - Use for advanced cartography or to save screenshots, sonar recordings and waypoints or to update your units software.
SmartStrike - SmartStrike takes you straight to the action by showing you where the fish are biting at any given moment.
AutoChart Live - Make a map where there is no map. Our patent pending AutoChart Live allows you to create digital, detailed maps live and on the water. You can also use it to enhance your existing charts.

The HELIX 5 CHIRP DI GPS G2 with our new user interface and operating system, features ?a brilliant 800H x 480V, 5" 256 color display with backlight. CHIRP Down Imaging and DualBeam PLUS sonar with 4000 watts PTP power output, Precision Internal GPS Chartplotting with built-in UniMap cartography with a micro SD card slot for optional maps or for saving waypoints. Maximize your angling experience with the Humminbird HELIX 5 CHIRP DI GPS fishfinder GPS system.

CHIRP Frequencies (Out of Box Transducer)
455 kHz: 420-520 kHz
800 kHz: 790-850 kHz
Maximum Depth: 600 feet

Specifications

Display size	5 in
Display resolution	800 x 480
Display type	Color TFT
Display colors grayscale	16-bit
Standard sonar	CHIRP/Down Imaging/Dual Beam PLUS
Standard sonar coverage	16°, 28°, 45° & 75° @ -10db
Standard sonar frequency	200/455/800 kHz
Target separation	2.5 in
Power output RMS	500 watts
power output peak to Peak	4000 watts
Depth capability	600 ft
Temperature	Built-in transducer
Speed	GPS Speed Included
Backlight	LED
PC Connect	Optional
Switchfire sonar	Yes
Split screen zoom	Yes
Split Screen Bottom Lock:	Yes
Large digit view	Yes
Card reader	Yes 1 slot
Waypoints, Routes, Tracks/Points:	2,750, 47, 50/20,000
Optional mapping	Humminbird, Navionics+, and Navionics Platinum
Input Voltage	10.8-20 VDC
Input Draw	650mA
Dimensions	Gimbal Mount:7.55"W x 4.64"H x 3.3"D Indash Mount:7.55"W x 4.28"D x 1.13"D

What's in the Box:

Helix 5 DI G2
Bracket
Powercord
XNT 9 DI T
Documentation

SKU: #308871632859425
Weight: 4.00 lbs
Brand: Humminbird

Model: 410220-1
Shipping Dimensions: 0.00" x 15.00" x 10.00"
