Maretron 0-500 PSI Transducer

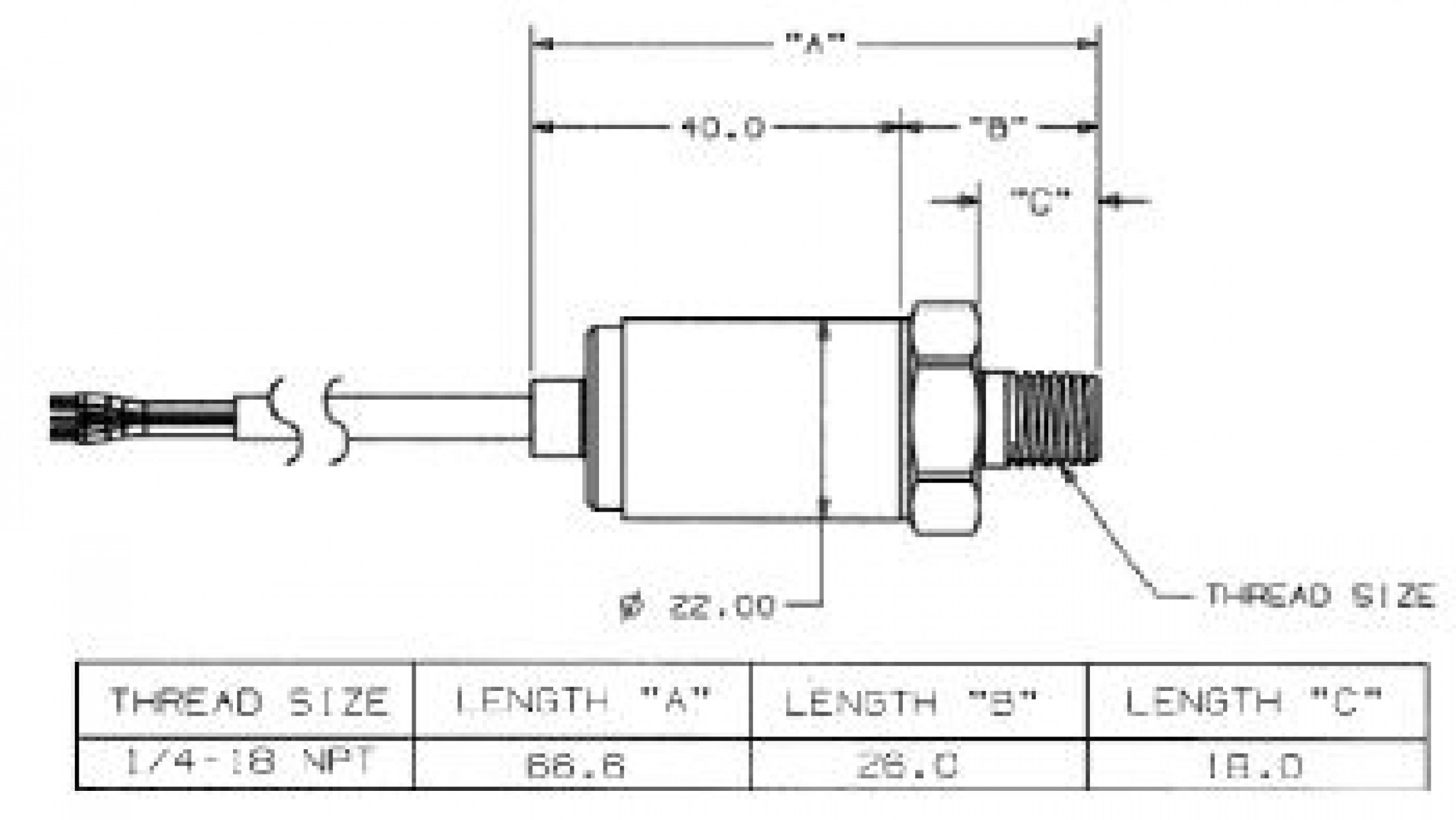

Pressure Transducer Mechanical Drawing

Pressure Transducer Specifications Part Number	Range	Accuracy	Type
PT-0-3PSI-01	0 to 3 PSI (0.21 bar)	± 2% Full Scale	Gauge
PT-0-5PSI-01	0 to 5 PSI (0.34 bar)	± 2% Full Scale	Gauge
PT-0-10PSI-01	0 to 10 PSI (0.69 bar)	± 2% Full Scale	Gauge
PT-0-50PSI-01	0 to 50 PSI (3.45 bar)	± 1% Full Scale	Gauge
PT-0-100PSI-01	0 to 100 PSI (6.89 bar)	± 0.5% Full Scale	Gauge
PT-0-500PSI-01	0 to 500 PSI (34.47 bar)	± 0.5% Full Scale	Absolute
PT-0-3000PSI-01	0 to 3000 PSI (206.84 bar)	± 0.5% Full Scale	Absolute

Specification	Value
Operating Temperature	-40°C to 105°C
Storage Temperature	-40°C to 105°C
Proof Pressure	2.4 Full Scale
Burst Pressure	2.4 Full Scale
Reverse Voltage Protection	± 16V over 5 Minutes
Construction	304L stainless steel
Pressure/Temperature Cycles	0 to FS @ 8Hz; and ?40°C to 105°C for > 1.8x106 cycles
Thermal Shock	105°C to ?40°C, 0.5 hr soaks at Temp. (2s Transfer) for 300 cycles
Vibration	100 to 2000 Hz, 20g Sinusoidal, 3 Axes for 144 hours
EMC Compatibility	10 Volts/meter per EN 61000-4-3
Humidity	85°C and 90% to 95% R. H. for 250 hours
Weight	85g

SKU: #317921632861362
Weight: 1.00 lbs
Brand: Maretron

Model: PT-0-500PSI-01
Shipping Dimensions: 0.00" x 0.00" x 0.00"
