Raymarine EV300 Solenoid Autopilot

Raymarine EV300 Solenoid

Autopilot

Model: T70160

For vessels with solenoid controlled hydraulic steering
Evolution Ai for superior performance
No calibration required
SeaTalkNG Network Compatible
ACU-300 auxiliary power to SeaTalkNG network

Evolution EV-300 Solenoid Autopilot Kit without Drive for Power Vessels by Raymarine®. No fuss, easy to install and robust - the Evolution autopilot combines Raymarine's autopilot expertise, FLIR Systems' R&D, and advanced aerospace guidance technology to create Evolution Ai control algorithms that deliver a new level of accurate autopilot control.

Specifications

ACU Nominal Power supply	12 V or 24 V
ACU Operating voltage range	10.8 V to 31.2 V dc
ACU Power consumption (standby) — main power supply	300 mA (12 / 24 V)
ACU Power consumption(standby) — SeaTalkng power supply	20 mA (12 V)
ACU SeaTalkng LEN (Load Equivalency Number)	1
ACU SeaTalkng LEN (Load Equivalency Number)	3 A at 12 V (fuse protected at 3 A)
ACU Data connections	SeaTalkng
ACU Waterproofing rating	drip resistant
ACU Operating temperature	-20°C to +55°C (-4°F to +131°F)
ACU Relative Humidity	max 93%
ACU Weight	2.2 kg (4.84 lbs)
EV Sensor Nominal Power supply	12 V (powered by SeaTalkng system)
EV Sensor Operating voltage range	10.8 V to 15.6 V dc
EV Sensor Power consumption	30 mA
EV Sensor SeaTalkng LEN (Load Equivalency Number)	1
EV Sensor Waterproofing rating	IPX 6
EV Sensor Operating temperature	-20°C to +55°C (-4°F to +131°F)
EV Sensor Relative Humidity	max 93%
EV Sensor Sensors	3-axis digital accelerometer; 3-axis digital compass and 3-axis gyro digital angular rate sensor
EV Sensor Weight	0.29 kg (0.64 lbs)

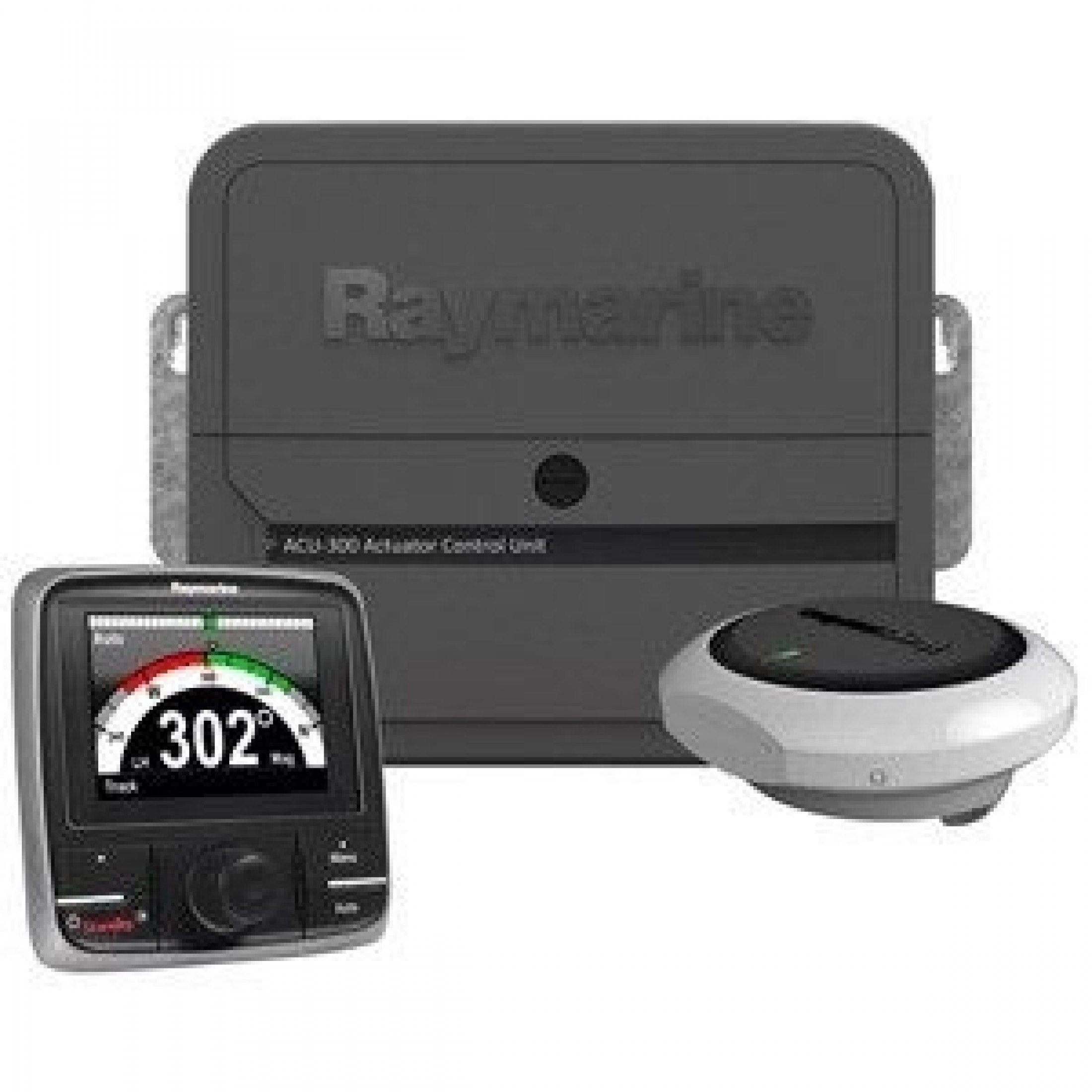

What's in the Box:

EV-1 Sensor Core
p70R Autopilot Control Head
ACU-300 Actuator Control Unit (Includes the M81105 Rotary Rudder Reference)
Evolution Cabling Kit
EV Unit O-Ring Pack (set of 2)
Wall Mounting Bracket

SKU: #335551632861537
Weight: 15.00 lbs
Brand: Raymarine

Model: T70160
Shipping Dimensions: 0.00" x 0.00" x 0.00"
