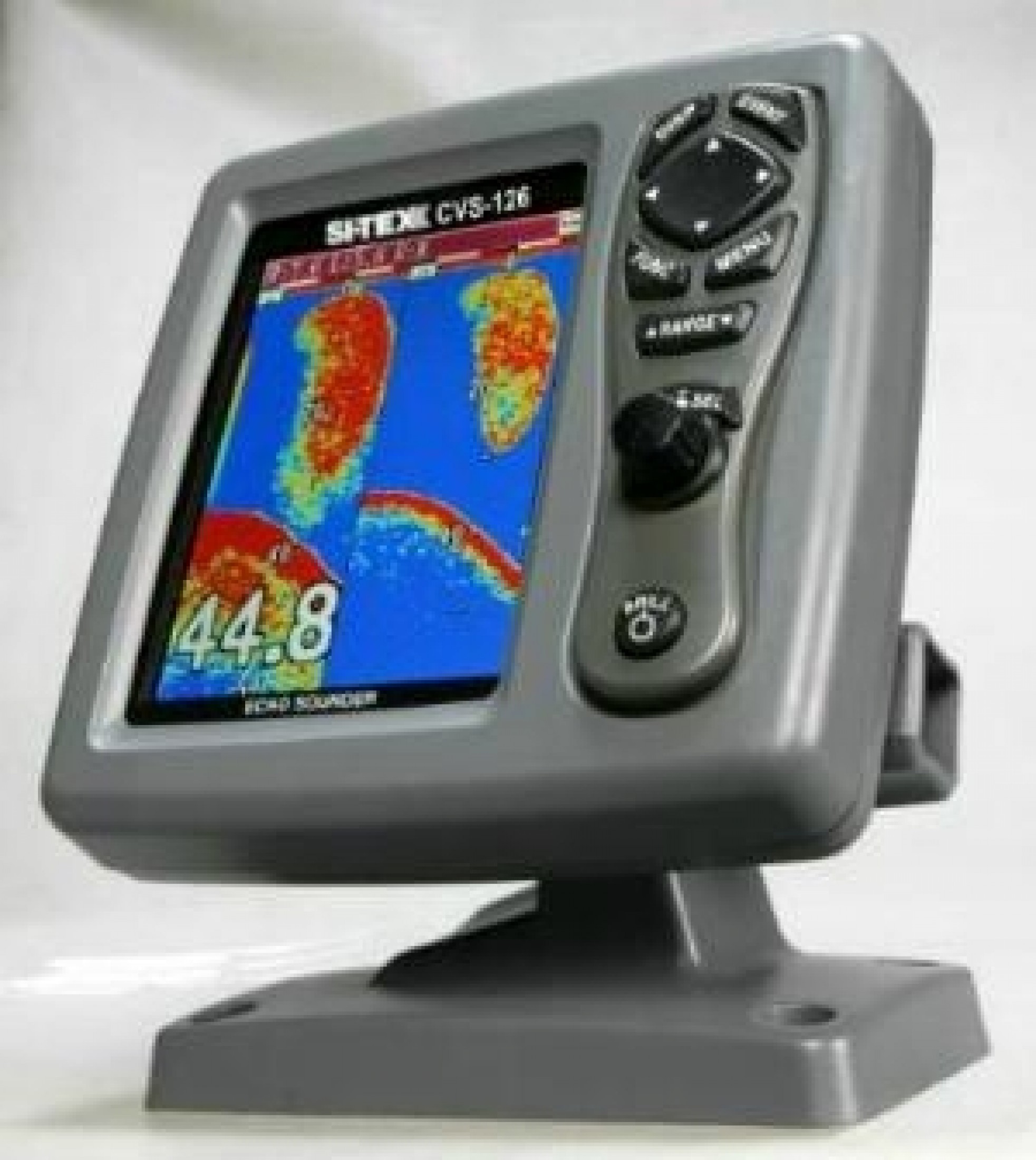

Sitex CVS126 5.7" Color LCD Sounder W/O Transducer

Digital signal processing
SI-TEX's state-of the-art digital signal processor offers advanced filtering capabilities. The SI-TEX Digital Filtering feature eliminates clutter by filtering out the noise to provide a clear detailed image that enhances fish targets in shallow and deep depths. Making it easy to differentiate between baitfish, larger fish, schools of fish and the sea floor.
Sona-Tone
Exclusive Sona-Tone identifies what's under your boat with different sounds for fish and schools of fish. So you will not miss any good opportunites even if you are away from the CVS-126.
Automatic Functions
For best performance the Auto Function mode chooses the most reliable setting for such functions as Gain, Range and Shift. The optimum settings are continuously selected automatically. (GAIN, RANGE, SHIFT)
Fishing Hot Spots
Leads you back to your favorite fishing hot spots or other previously saved positioning in memory with input from optional GPS sensor.
Store the Image
YouStores up to 10 screen images in built-in memory for recalling later by "one-touch". Great for recalling a potential hot spot for review later.
Easy Operation
Easy access to all system functions with simply arranged keypad, dedicated-functions keys, rotary-knob control of Gain/Selection and comprehensive on-screen menus.
Sunlight Viewable
Brilliant 5.7" color LCD display with 8, 16, or 64 color levels and an anti-reflective coating for excellent readability in direct sunlight.

SI-TEX CVS-126 Digital Echo Sounder- Specifications
Display	5.7" TFT Color LCD (240 x 320 pixels)
Display Colors	8, 16, 64 or monochrome
Power Requirments	10.8 ~31.2V DC.
Power Consumption	10w or less at 12V DC
Operating Frequency	Dual Frequency 50/200 kHz
Output Power	600W
Display Modes	Normal (H/L), zoom (H/L) dual-frequency, NAV 1, NAV 2, A-scope
Zoom Modes	Bottom, Bottom discrimination, Zoom, Bottom zoom, Bottom follow zoom
Depth Ranges*	8 ranges from 0 to 2800"
Zoom Ranges	10 to 650'
Audible Alarm	Fish, bottom, depth, temperature, speed , arrival, XTE**
Image Speed	9 levels plus stop (2/1, 1/1, Stop, 1/1.5, 1/2, 1/2.5, 1/3, 1/3.5, 1/4, 1/4.5)
Image Shift	Auto or Manual (0 to 1000')
Auto Functions	Depth range, Shift and Gain
Languages	English, Spanish, French, Greek, Italian, Japanese, Korean, Chinese, Thai
Distance Unit	ft, m, fm, 1, FM
Input Format	NMEA0183 (GGA, GLL, ZDA, VTG, RMC, MTW, VHW, MWV, HDT)
Output Format	NMEA0183 (DBT, DPT, GGA, GLL, MTW, RMC, TLL, VHW, VTG, ZDA, HDT, MWV)
Other Functions	Interference rejection, Color rejection, Depth marker (VRM), Event Memory, Panel illumination, Draft adjustment, Temperature correct, Boat speed correct, White line, Sona-Tone?, Display memory, Waypoint navigation, Power reduction, Built-in simulator
Waterproof Rating	IPX 5
Operating Temperature	5° to 131°F (-15° to +55°C)
Case Size/Weight	7.2"W x 7.2"H x

SKU: #339681632859539
Weight: 10.10 lbs
Brand: Si-tex

Model: CVS126
Shipping Dimensions: 0.00" x 0.00" x 0.00"
