Seaview PMADM3M1 Dual Mount Aft Rake Requires Plate

Description Returns

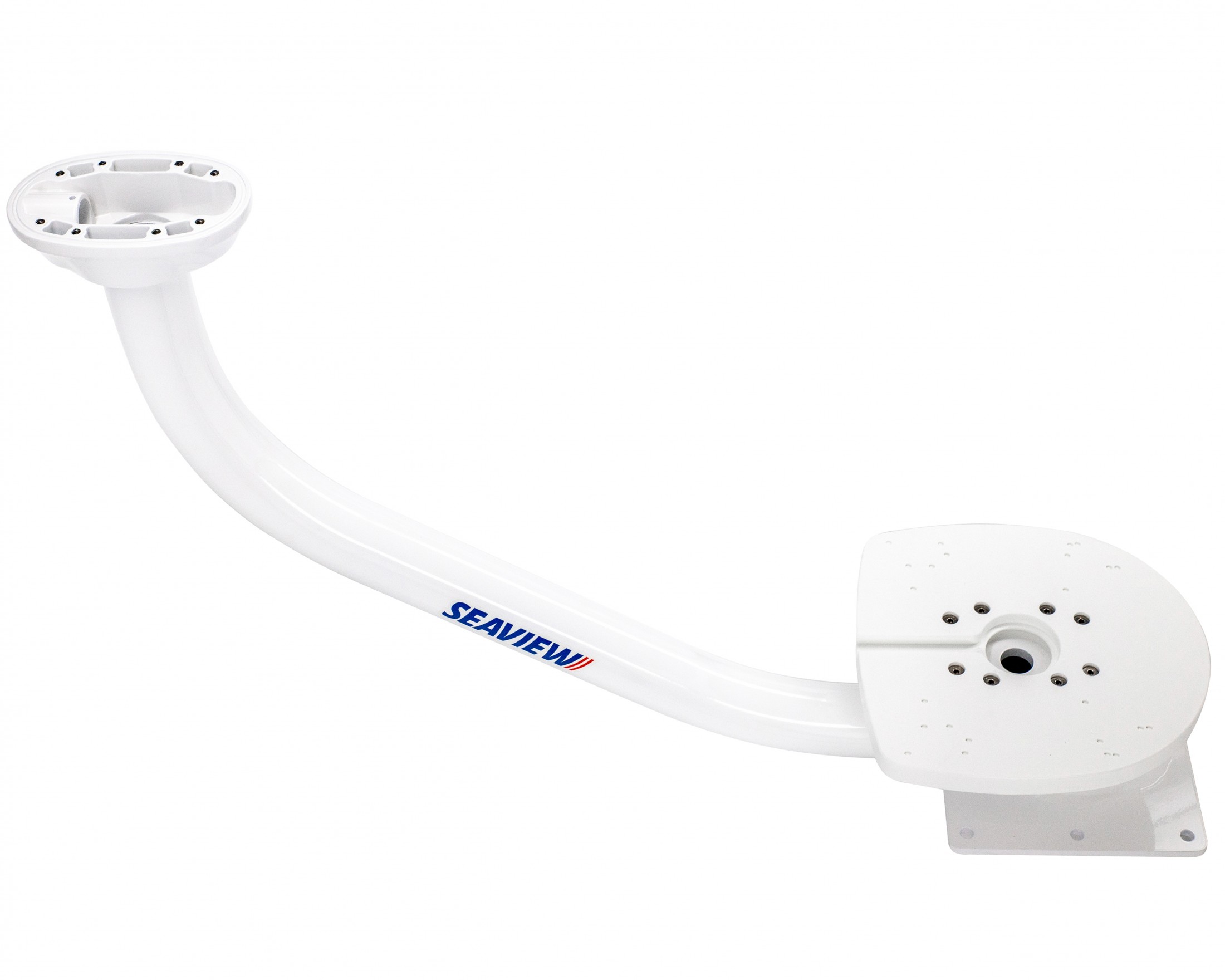

The 28" tall Seaview Dual Mount is pre-drilled for up to 4.5? Open Array Radar. The top is for Satellite domes. This Dual Mount is for Open Array Radars & Satdomes or Cameras. The oval hollow mast section allows for easy cable management. The small 10"x10" foot print design is a great solution for limited space. This modular mount is light bar compatible. Numerous accessories are also available for this mount such as spreaders, lightbars and floodlights. *Please note that a Top Plate is required (sold separately)*

Features:

No more unwanted visible holes in the mounting plate!
Easy 3 step modular system.
Aft, forward, vertical and dual mount designs..
Easily add on accessories such as lightbars, spreader kits, hinges, wedges and much more!

Step 1	Select Mount Type this will be the base for the system
Closed Dome Radar, Small Satdomes (16" or smaller) & Cameras
PMF-57-M1	5" Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required
PMF-107-M1	10" Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required
PMA-57-M1	5" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
PMA-107-M1	10" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
PMA-167-M1	16" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
PMA-247-M1	24" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
PMA-367-M1	36" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
AM5-M1	5" Modular Mnt/ Vertical / 8" Rnd base plate / Light bar compatible / Top plate required
AM12-M1	12" Modular Mnt/ Vertical / 8" Rnd base plate / Light bar compatible / Top plate required
AM18-M1	18" Modular Mnt/ Vertical / 8" Rnd base plate / Light bar compatible / Top plate required
Open Array Radar
PMA-57-M1	5" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
PMF-57-M1	5" Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required
Large Satdomes (18" - 24")
PMA-57-M1	5" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
PMA-1210-M2	12" Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required
PMA-1810-M2	18" Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required
Dual Mount & Arches
PMA-DM1-M2	12.5" Dual Mount pre-drilled for most closed dome Radars. Top for Satellite domes / Top plate required
PMA-DM124-M2 (***)	32.5" Extended Dual Mount pre-drilled for most closed dome Radars. Top for Satellite domes / Top plate required
PMA-DM2-M2	22.5" Dual Mount pre-drilled for up to 4.5 ft. Open Array Radar. Top for Satellite domes / Top plate required
PMA-DM3-M2	28" Dual Mount pre-drilled for up to 4.5 ft. Open Array Radar. Top for Satellite domes / Top plate required

Step 2	Choose Top Plate
Radar (closed dome & open array 4'-6')
ADA-R1	Modular plate for almost ALL closed dome and open array radars (Confirm proper fit with ref guide)
ADA-R2	Modular plate for 24" JRC / Lowrance 2400HD / Northstar & Simrad DX64S Domes
Satdome
ADA-S1	¹Modular plate for KVH M1/M2/M3 , Intellian i1/i2/i3, Raymarine 33/37STV, SeaKing 1500/1800-HD, SeaTel ST14
ADA-S2	Modular plate for KVH M5/M7, Intellian i4/i6/d6, Raymarine 45/60STV, SeaTel C18/C24
ADA-S3	² Modular plate for KVH M1, Intellian i1/i2, Raymarine 33STV, SeaKing 1500/1800-HD
ADA-S4	Modular plate for ALL FB150 & FB250 domes
ADA-F1	Modular plate for FLIR M or Ray T series thermal cameras

Step 3	Choose Optional Accessories
Light / GPS Bars	(Light bar top accessory required, see below)
LTB-R	1 1/4" Light bar for closed dome radar / folds over 90 deg. / Must pick a LTB TOP below
LTB-OA	1 1/4" Light bar for open array radar up to 4.5 ft. / Must pick a LTB TOP below
LTB-OA6	1 1/4" Light bar for open array radar at 6 ft. / Must pick a LTB TOP below
LTB-S	1 1/4" Light bar for 18" or smaller satdomes / folds over 90 deg. / Must pick a LTB TOP below
LTB-S24	1 1/4" Light bar for 24" satdomes / folds over 90 deg. / Must pick a LTB TOP below
LTB-SF (***)	1 1/4" Light bar for FLIR M or Raymarine T series thermal camera and light / Must pick a LTB TOP below
Light Bar Tops	(LTB TOP required with light bars above)
LTB-U	(LTB TOP) Standard 1-14 thread for GPS or similar
LTB-U1A	(LTB TOP) Universal Light bar top for mounting your own light and or GPS
LTBP-1197	(LTB TOP) Perko 1197 light with 7' of wire / USCG approved for boats up to 20 meters (65. 6 ft) in length.
LTBA-7800	(LTB TOP) Attwood LED 7800 ser. light with 7' of wire / USCG approved for boats up to 20 meters (65. 6 ft).
LTB-BOX	(LTB TOP) Universal box top for All-round, Masthead & Stern (lights not included)
Light Bar Accessories
PM-114LT-DLX	Floodlight kit for 1 1/4 in. dia. LTB (includes 4" X 6" 55-watt 14V quartz halogen floodlight & hardware)
PM-114LT-LED (***)	Floodlight kit for 1 1/4 in. dia. LTB (includes LED floodlight & hardware)
PM-U2A	Light bar adapter to mount a light and 2 GPS (electronics not included)
Base Wedge
PM-W4-7	4 degree wedge/ for 7x7 radar mount base plate
PM-W4-8	4 degree wedge/ for 8x8 radar mount base plate
Hinge Adapters for base plate
PM-H7	Hinge adapter/ for 7x7 base plate/ (fits most 5 -16 in. tall Radar Mounts)
PM-H8	Hinge adapter/ for 8x8 base plate/ (fits most 24 -36 in. tall Radar Mounts)

SKU: #341391632859549
Weight: 18.00 lbs
Brand: Seaview

Model: PMADM3M1
Shipping Dimensions: 0.00" x 0.00" x 0.00"
