Sitex Vector Pro G2 Compass IMO Certified GPS Compass

$4,199.00 $3,779.10 (Available - Call for Info 877-999-3699)
SALE!
Si-tex
Reviews (0)

Sitex Vector Pro G2 Compass IMO Certified GPS Compass

$4,199.00 $3,779.10 (Available - Call for Info 877-999-3699)

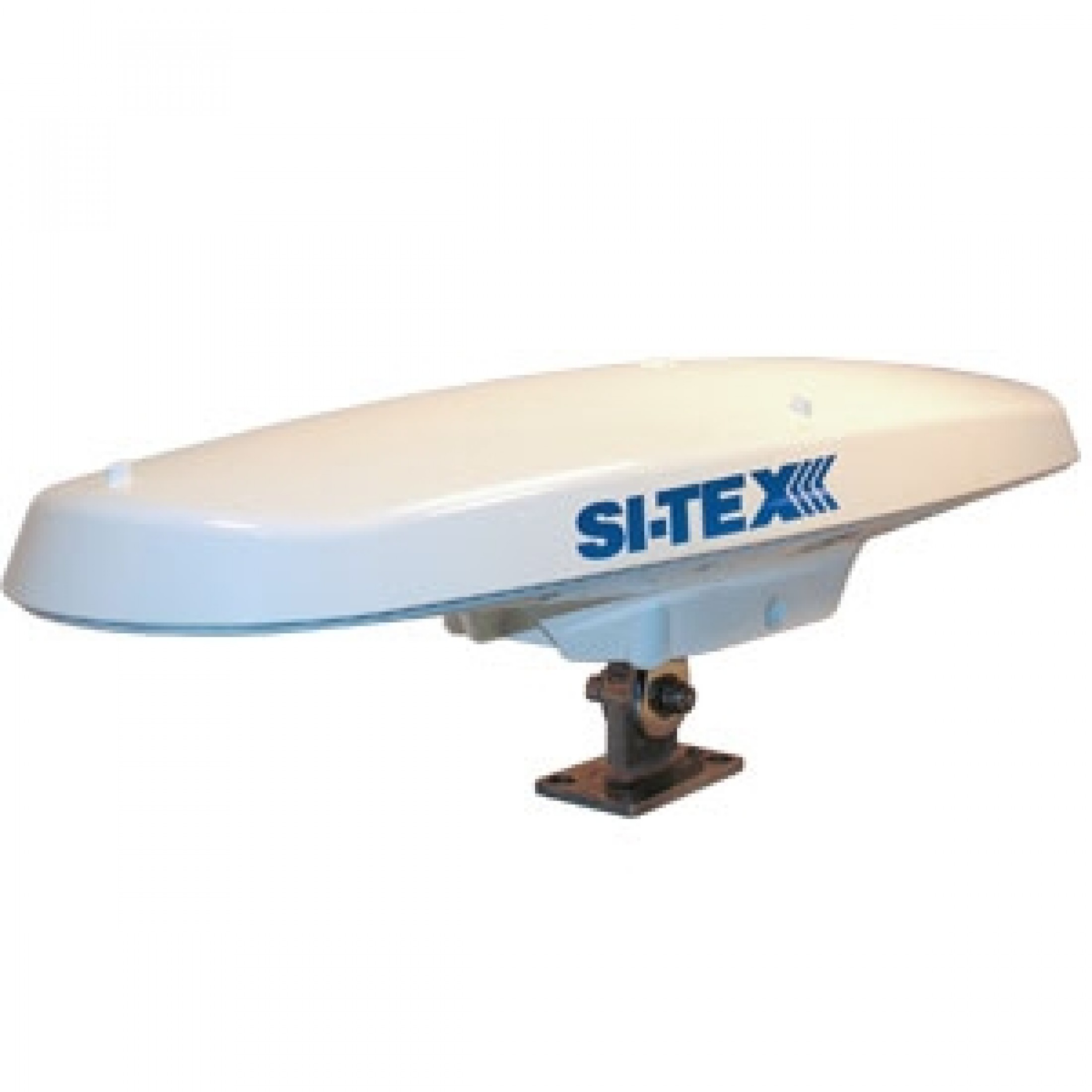

Si-tex Vector Pro G2 GPS Compass

Model: VECTOR PRO G2
  • The rugged enclosure combines GPS’ Crescent Vector board and two multipath-resistant antennas for simple installation
  • The half-meter length smart antenna mounts easily to a flat surface or... Read More...

SKU: #348731632861688 | Model: #VECTOR PRO G2

Share:

Description Returns

Si-tex Vector Pro G2 GPS Compass

Model: VECTOR PRO G2
  • The rugged enclosure combines GPS’ Crescent Vector board and two multipath-resistant antennas for simple installation
  • The half-meter length smart antenna mounts easily to a flat surface or pole
  • The stability and maintenance-free design of the Vector Pro replaces traditional gyrocompasses at a fraction of the cost
  • IMO Wheelmarked for Commercial applications

Experience superior navigation from the accurate heading and positioning performance available with the Vector Pro G2 Series GPS Compass.

Specifications
GPS SENSOR SPECIFICATION
Receiver Type Twin Receivers w/ L1, C/A code, with carrier phase smoothing
ChannelsTwo 1?channel, parallel tracking, (Two 10- ?channel when tracking WAAS)
Update Rate Standard 20 Hz Adjustable (position and heading)
Horizontal Accuracy< 0.6 m 95% confidence (*
< 2.5m 95% confidence (aiutonomous, no SA)**
Heading accuracy<0.3° rms
Pitch/roll accuracy< 1° rms
Rate of turn90°/s max
Start up time< 60s typical
Heading fix< 20s
Satellite reacquisition< 1s
Beacon Sensor Specifications (G2B version)
Channels2-channel parallel tracking
Frequency range283.5 to 325 kHz
Operating modesAutomatic (signal strength or range) and manual
ComplianceIEC 611 08-4 beacon standard
Communications
Srial ports2 full duplex RS-232 and 2 half duplex RS-422
Data I/O protocolNMEA 0183
Enviromental
Operating temperature rage-30°C to +70°C
Humidity100% non condensing
Input voltage9-36vDC
Power consumption<5w
IsolationPower supply isolated fromserial ports
Mechanical
Dimensions23.6" x 6.3" x 7.1"

  • SKU: #348731632861688
  • Weight: 20.00 lbs
  • Brand: Si-tex
  • Model: VECTOR PRO G2
  • Shipping Dimensions: 0.00" x 0.00" x 0.00"
