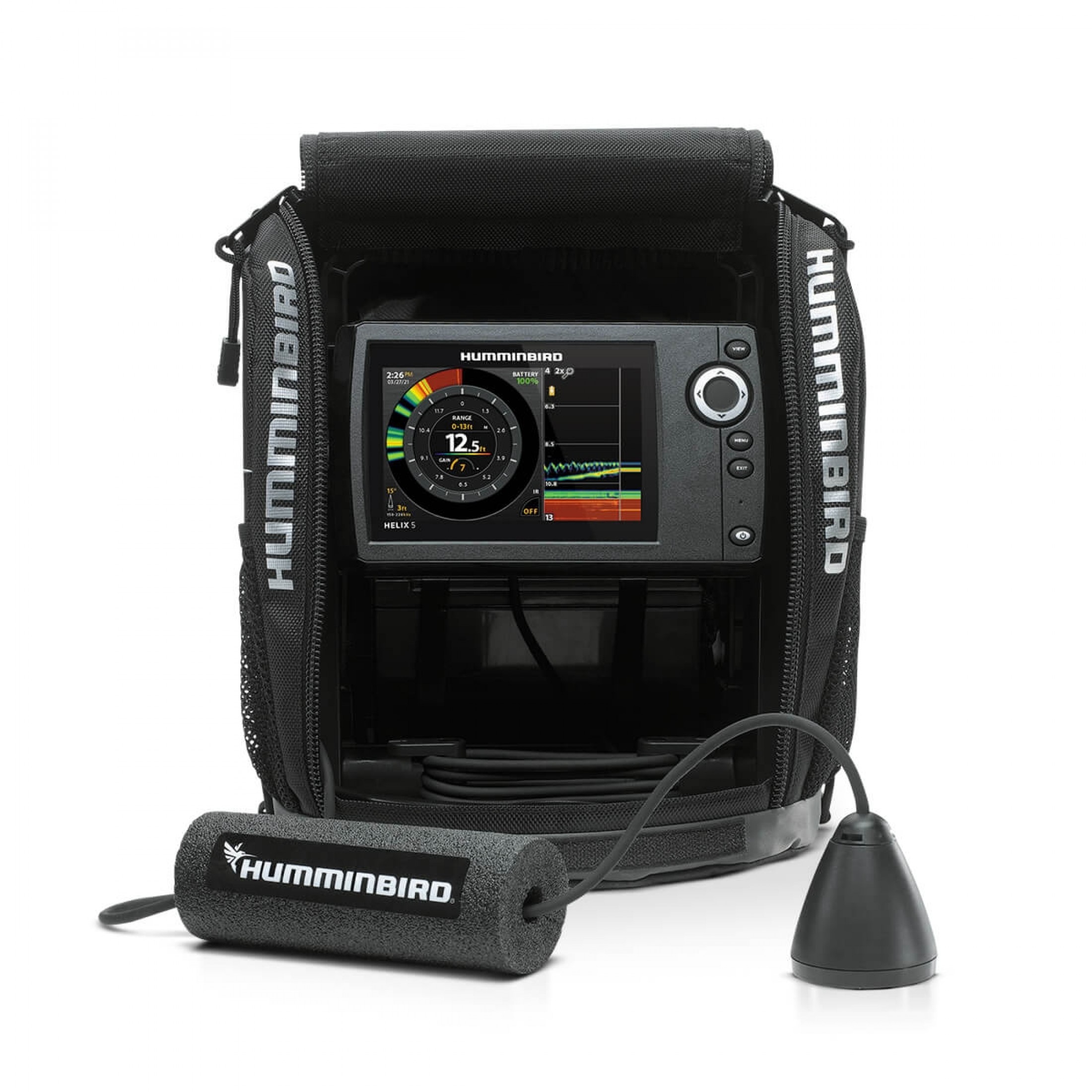

Humminbird HELIX5 CHIRP G3 Ice Sonar System

Humminbird ICE HELIX 5 CHIRP G3

Model: 411720-1

Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4".
CHIRP Interference Rejection: Six settings keep competing sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes.
Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen, or up to 16X zoom on 2D sonar view.
Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, you'll easily be able to see digital depth display, sonar returns and more exclusive features, all shown in real-time.
Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly.
Portable Shuttle and Carrying Case: The soft-sided carrying case and shuttle mount protect your Humminbird ICE HELIX for safe transport and include built-in cable and transducer management.
Year-Round Capable: The ICE HELIX 5 CHIRP G3 works with all compatible HELIX 5 CHIRP G3 transducers. Simply install an accessory transducer, power cord and gimbal mount on your boat and you'll be ready to hit the water even after the ICE melts.

The ICE HELIX 5 CHIRP G3 gives you a deeper understanding of what's below the ICE, with exclusive features you won't find on any other ICE sonar unit. Utilize crystal-clear Dual Spectrum CHIRP Digital Sonar with 3/4" target separation, CHIRP Interference Rejection, Adjustable Sonar Zoom, Jig Charge Mode and unprecedented viewing options specifically for the ICE angler. You'll watch it all take shape on a full color, 5" HD LCD display.

Specifications

Display Size - Diagonal	5"
Display Pixel Matrix	800H x 480V
Sonar-Standard	Dual Spectrum CHIRP
Sonar-Coverage	15° & 21° @ -3dB
Sonar-Optional	50 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported	50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported	50/80/200 kHz
Depth-Sonar	400 ft
Interface	Keypad Control
Features	Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable
Memory Card Slot	None
Power Draw	615 mA
Power Input	10.8-20 VDC
Power Output Peak-to-Peak	4000 Watts
Power Input	10.8-20 VDC
Power Output Peak-to-Peak	4000 Watts
Power Output RMS	500 Watts
Screen Snap Shot	Not Supported
Sonar Recording	Not Supported
Mount-Standard	Portable
Transducer Mount Location	Portable
GPS Chartplotting	Not Supported
GPS Trackplotting	Included
LakeMaster Compatibility	Yes
Coast Master Compatibility	No
Navionics Gold/HotMaps Compatibility	No
Navionics Platinum + Compatibility	No
Platinum Compatibility	No
Heading Sensor GPS Compatibility	Yes
Upgradable Software	No
View Preset Keys	No
X-Press Menu System	Yes
Custom View Selections	Yes
Custom Digital Readout	Yes
Speed	Not Supported
Temperature	Not Supported
Transducer Included	XI 9 1521

What's in the Box:

ICE HELIX 5 CHIRP G3 fish finder
Dual Spectrum CHIRP ICE transducer - XI 9 1521
9Ah battery and Charger
ICE shuttle
Hardware
Power cable
Portable bag.

SKU: #358501632859607
Weight: 13.00 lbs
Brand: Humminbird

Model: 411720-1
Shipping Dimensions: 0.00" x 0.00" x 0.00"
