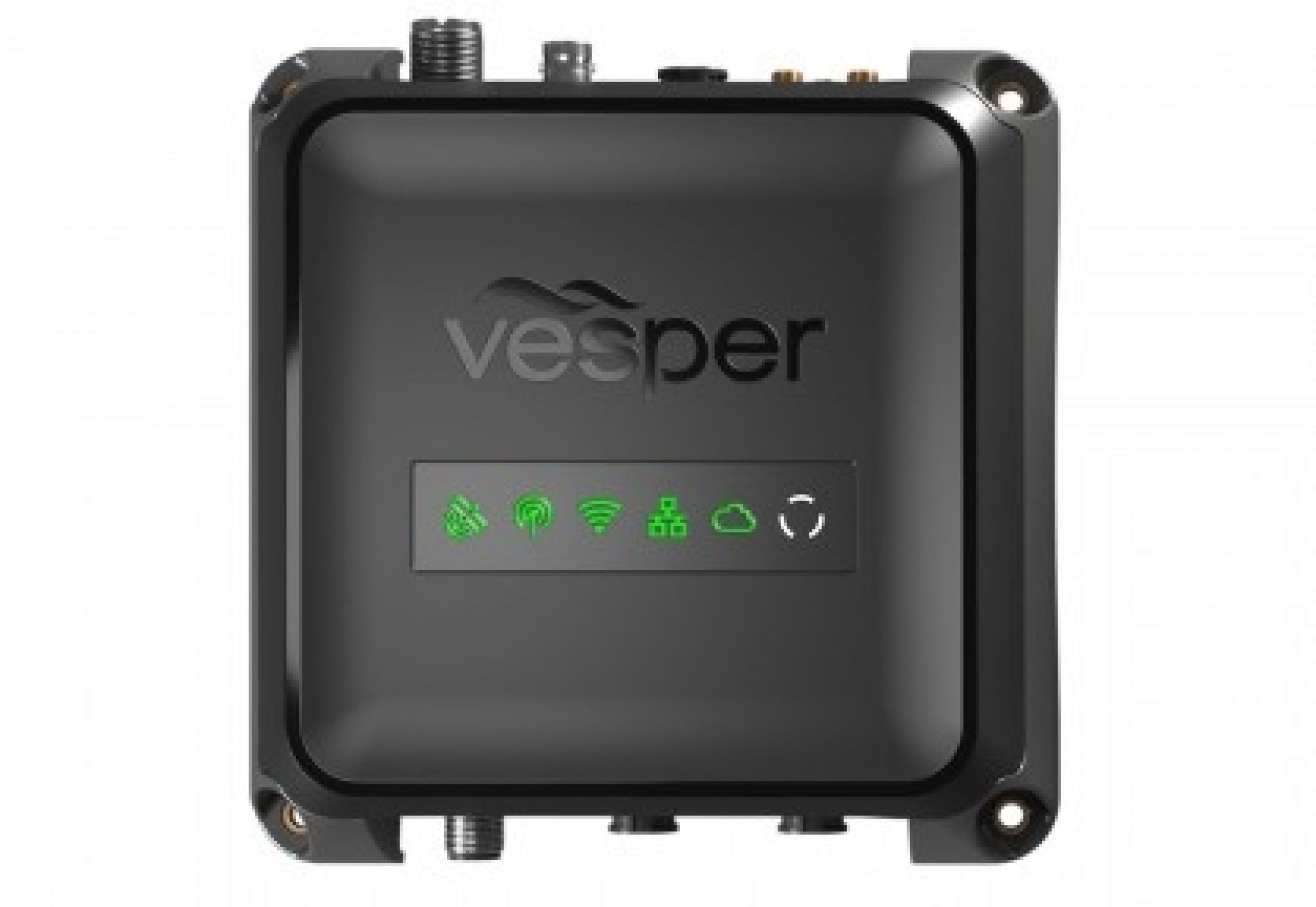

Vesper Coretex-M1 AIS Class B SOTDMA smartAIS

Vesper Cortex M1 SOTDMA smartAIS transponder with remote vessel monitoring

Model: 010-02815-00

Add H1P portable handset for full VHF capability
Built-in Class B SOTDMA with no-loss antenna splitter
Built-in WiFi and Cellular connectivity on monitoring on board and ashore
Low power consumption hub
10Hz GPS antenna
Monitor up to 5 sensors connected directly
Network to NMEA2000 to monitor sensors remotely and recieve Man Overboard alarms from other devices

Full Class B SOTDMA with smartAIS send and receive and integrated no-loss splitter. Monitor and control onboard systems and keep alerted on board or ashore from your smartphone.

Specifications

General
Size	168mm x 168mm x 58.7mm depth (6 5/8" x 6 5/8" x 2 5/16")
Power Supply	9-33V. 12V: 6A max, 500mA nominal
Weight	770g (1.7lbs)
Environmental	Waterproof (IPx7)
Operating Temperature	-25°C to +55°C (-13°F to 131°F)
Supported Protocols	AIS Class B SO-TDMA, VHF Voice, Class D DSC, ATIS (user configurable, EU region), NOAA Weather (US region)
Antenna Connector	SO239
Splitter	Max input power 25W, Insertion Loss RX 0dB, TX < 1dB
Splitter Connector	BNC (2W)
AIS
Class	SO-TDMA Class B
Dedicated Receive Channels	2
Frequency Range	156.025 — 162.025 MHz
Power Output	5W, 1W (High, Low)
AIS Sensitivity (20% Per)	-112 dBm
Networking
Nmea 2000 Gateway	1 x Isolated Micro-C male port, AIS and GPS PGN output, Gateway Translations to/from NMEA0183
Nmea 0183	1 x Isolated NMEA0183 ports, AIS and GPS sentences, Gateway Translations to/from NMEA2000, 4800 / 38400 baud
1 x Isolated NMEA0183 ports, AIS and GPS sentences, Gateway Translations to/from NMEA2000, 4800 / 38400 baud	Access Point for up to 10 devices, 2.4GHz, 802.11b/g/n, Integrated Antenna, SMA-RP external antenna port (optional)
Wireless Security	WPA2 Personal
Cloud Connectivity	LTE-Cat1 with 3G fallback (USA), 3G (Canada, EU, Asia), Integrated SIM, Integrated Antenna, SMA-RP external antenna port (optional)
Control Outputs	2 Outputs. Low side driven (max 200mA)

What's in the Box:

M1 Hub
GPS Antenna
Power Cable
Audio Cable
External Sensors Cable
External Wifi Cable
VHF patch cable

SKU: #400441647638175
Weight: 5.00 lbs
Brand: Vesper Marine

Model: 010-02815-00
Shipping Dimensions: 0.00" x 0.00" x 0.00"
