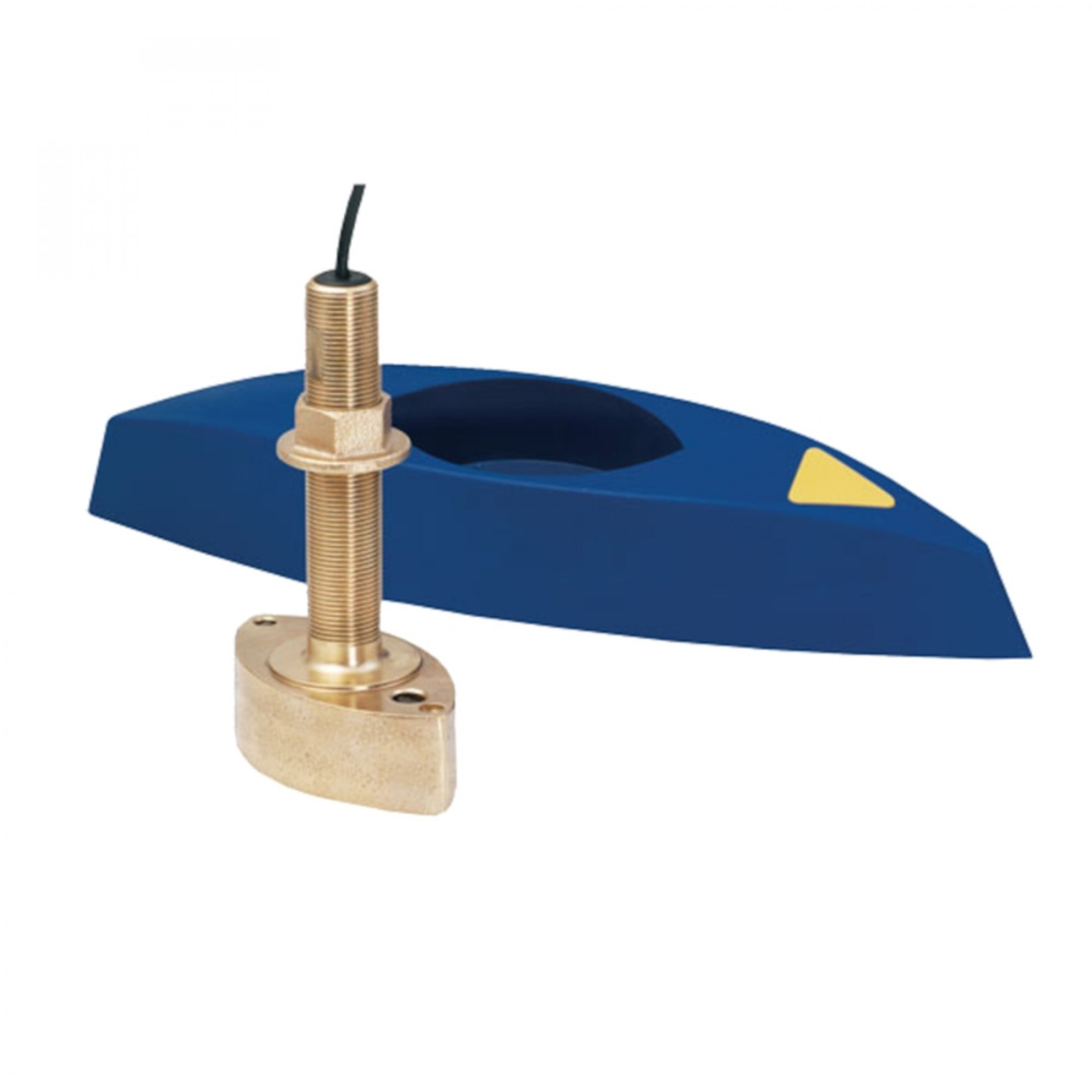

B45 Bronze Thru-Hull with Fairing Block - 50/200 kHz - 600W - 9-Pin Connector (Xsonic)

The B45 is Airmar’s smallest and most economical, dual-frequency, bronze, stem transducer. It features a single, 50/200 kHz ceramic element. The included fairing streamlines the transducer and increases the performance—even at higher speeds.

Features

• The depth and fast-response water-temperature sensing
• 600 W of power
• Dual-frequency element:
• 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
• 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
• Excellent performance and sensitivity in a small housing
• Bronze housing with High-performance Fairing for optimal performance at speed

Specifications

• Acoustic Window: Urethane
• Cable-Length: 10 m (33')
• Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing
• Connector: Simrad 9-Pin, Lowrance 9-Pin, Navico 9-Pin
• Conventional Beam: 45°/12°
• Country of Origin: USA
• Cross Reference: 000-13946-001
• Deadrise Range: Up to 28° with fairing
• Display Connector: 9N
• Frequency Band: 50/200 kHz
• Hole Size: 22 mm (7/8")
• Housing Material: Bronze
• Hull Material: Fiberglass or wood
• Max Deadrise: Up to 26° with fairing
• Max Deadrise Angle: 26°
• Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
• Max Vessel LOA: Up to 9 m (30')
• Mix and Match Series: 5-Pin 600 Watt
• Mounting Style: Thru-Hull with Fairing
• Power Rating: 600 W
• Sensor Connector: MM
• Single or Dual Frequency: Conventional Dual Frequency
• Tilted Element: No
• Transducer Functions: Depth, Temperature
• Usable Shaft Length: 92 mm (3.62")
• Weight: 2.5 kg (5.5 lb.)
