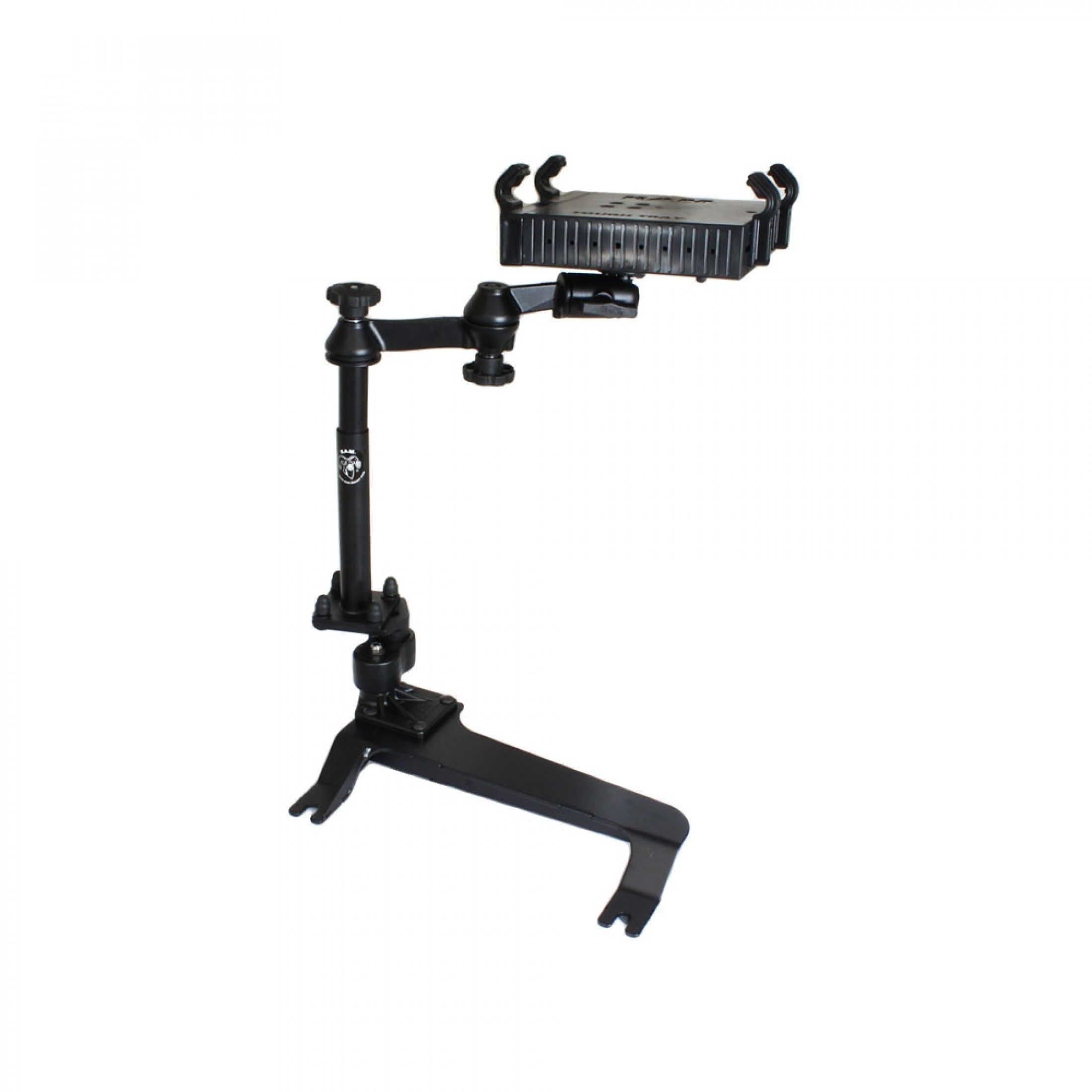

No-Drill™ Laptop Mount for the GMC Sierra, Yukon, Chevrolet Silverado, Suburban, 2500, 3500, Avalanche & Hummer H2

Vehicle Base - Chevy Trucks 2006-Newer
GMC Sierra (deluxe power seats) (2000-2006)
GMC Yukon (deluxe power seats) (2000-2006)
Chevrolet Silverado (deluxe power seats) (1999-2006)
Chevrolet Suburban (deluxe power seats) (2000-2006)
Chevrolet 2500 & 3500 c/k series truck (deluxe power seats) (2000-2006)
Chevrolet Avalanche (2000-2006)

Placement of Mount:
Passenger side on the floor, in front of seat

Drilling Requirements:
No - uses existing seat bolts

Seat Configuration:
Bucket

Pole:
Purchased Separately

Weight:
6.8 lbs.

Material:
Powder Coated Steel

Dimensions:
Hole Center = 15"

Notes:
Installs in minutes with no drilling required. Won't interfere with levers or factory-installed console or 4WD lever.

Features:
Quick installation with no drilling needed. Rock solid construction with a lifetime warranty.

The RAM Tough-Tray is spring loaded expandable tray that can accommodate 10 to 16 inch wide laptops. The tray includes four (4) side clamping arm with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS, PDAs or other electronics.

Tough-Tray Dimensions:
Tray Depth: 10.0"
Tray Thickness: 2.125"
Tray Width (Expansion): 10" to 16"
Side Clamp Arm Height: 0.5" (min) to 1.75" (max)

Material:
High Strength Composite

The RAM RAM-VP-SW1-89, combination swing arm/tele-pole system, will connect to any RAM vehicle base without a welded female tele-pole. Included is a tele-pole with a height range from 11.5" to 17"; it can be easily adjusted by turning the knob at the top of the post. Once the knob has been tightened, the tele-pole becomes a rigid support for any RAM cradle, holder or Tough-Tray.

The double swing arm with rotating plate, allows you to twist and tilt the viewing angle of your laptop, tablet, UMPC, monitor, or any other connected electronic device, when mounted on your RAM Vehicle Mount. Taking the highly successful RAM Vehicle Mounts to the next level, this rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place. The length of the double swing arm is 12".

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1.5" Rubber Ball "C" Size
