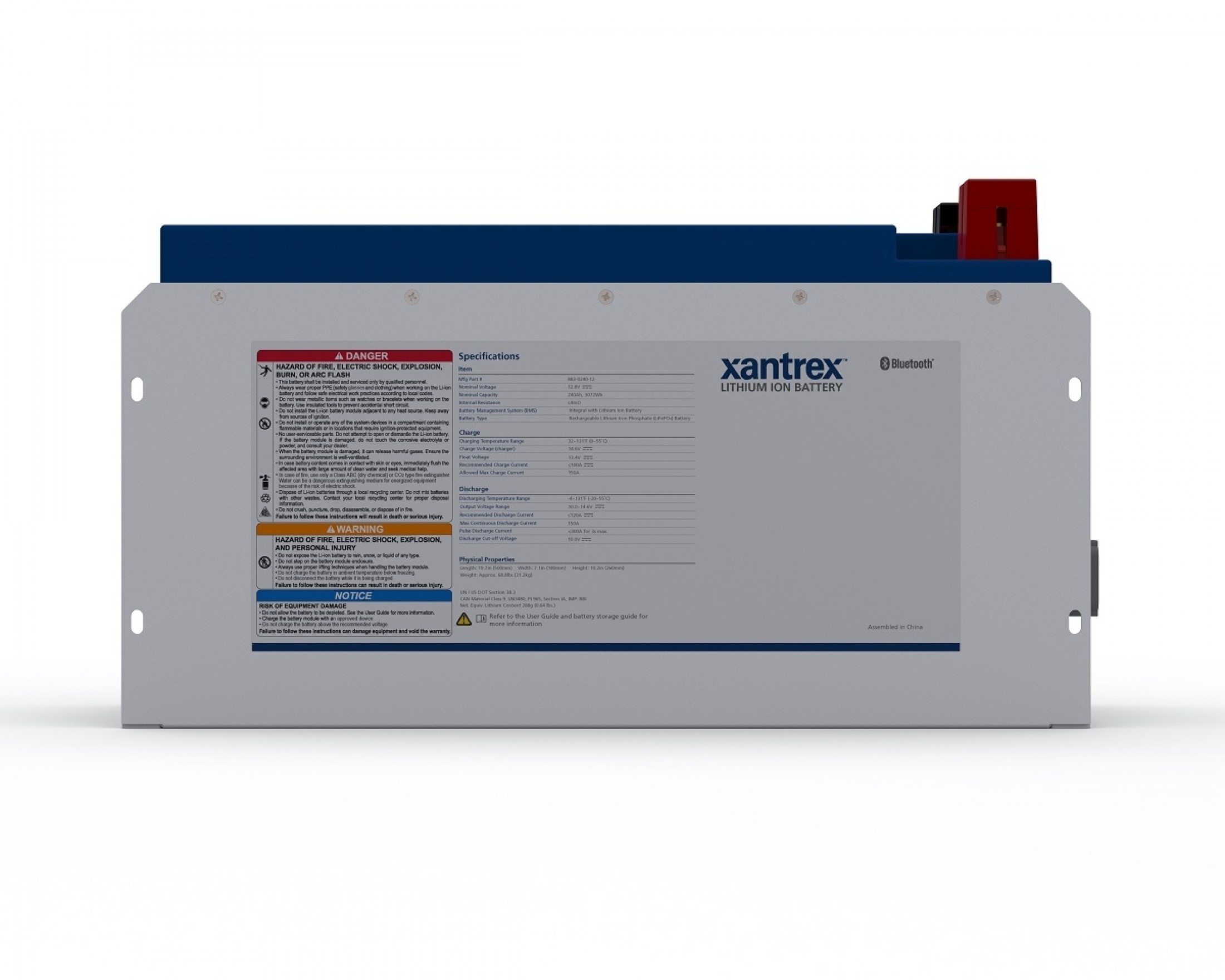

Xantrex 240AH 12v Lithium Battery

Xantrex Lithium Ion Battery 240AH, 12V

Model: 883-0240-12

Internal BMS - Reduces footprint
Cell Balancing - extends lifetime of battery
LED's to Monitor State of Charge
Optional Remote Panel - view status of battery, turn battery on and off
Bluetooth - connect to the Xantrex mobile app to view status of battery
Parallel Stack up to 4 batteries

Xantrex manufactures a variety of lithium ion batteries for mobile applications including marine, RV, truck and specialty vehicles.

Many RV manufacturers, boat builders and specialty vehicle manufacturers exclusively use Xantrex batteries and other solutions for their power needs.

The Xantrex Lithium Ion Iron Phosphate (LiFePO ) battery uses UL1973 certified cells. Equipped with redundant safety features, the Xantrex lithium battery is the safest in the market today. Specifically designed to withstand the harsh operating environments of mobile and marine applications, the Xantrex lithium battery lasts up to 6,000 cycles compared to a traditional lead acid or AGM battery, which typically lasts 400-500 cycles. The Xantrex lithium battery offers exceptional power density and is also available with a heating blanket option if installation is outside the main cabin. With the Bluetooth connection enabled gathering real time data from the battery is incredibly simple and always accurate.

Specifications

Battery Voltage	12V
Nominal True Capacity	240Ah
Nominal Voltage	12.8 Volts
Nominal Watt Hours	3072Wh
Internal Impedence	<4m Ohms
Charge Voltage	14.6V
Recommended Float Charge Voltage	13.6V
Recommended Charge Current	?100A
Max Continuous Discharge Current	150A
Pulse Discharge Current	300A (3s)
Discharge Cut-off Voltage	10V
Cycle Life to 80% Health	2800 (0.5C, 25°C, 100% Depth of Discharge) - increased cycle life with ideal conditions
ENVIRONMENTAL
Charging Temperature Range	32 - 131°F (0 - 55°C)
Discharging Temperature Range	-4 - 131°F (-20 - 55°C)
Storage Period 1 Week	-4 - 113°F (-20 - 45°C)
Storage Period 1 Month	14 - 113°F (-10 - 45°C)
Storage Period 6 Months	50 - 77°F (10 - 25°C)
MECHANICAL
Dimensions	19.7in x 7.1in x 10.3in (500mm x 180mm x 260mm)
Weight	69.4lbs (31.5kg)
Battery Terminals	M8 x 1.25
Carrying Capability	Two metal handles
Moutning Orientation	Standing

What's in the Box:

Xantex Battery
Quickstart guide
2x Bolt M8 x 1.25cm
2x Lock Washer
2x captive washer

SKU: #423991659453742
Weight: 73.90 lbs
Brand: Xantrex

Model: 883-0240-12
Shipping Dimensions: 0.00" x 0.00" x 0.00"
