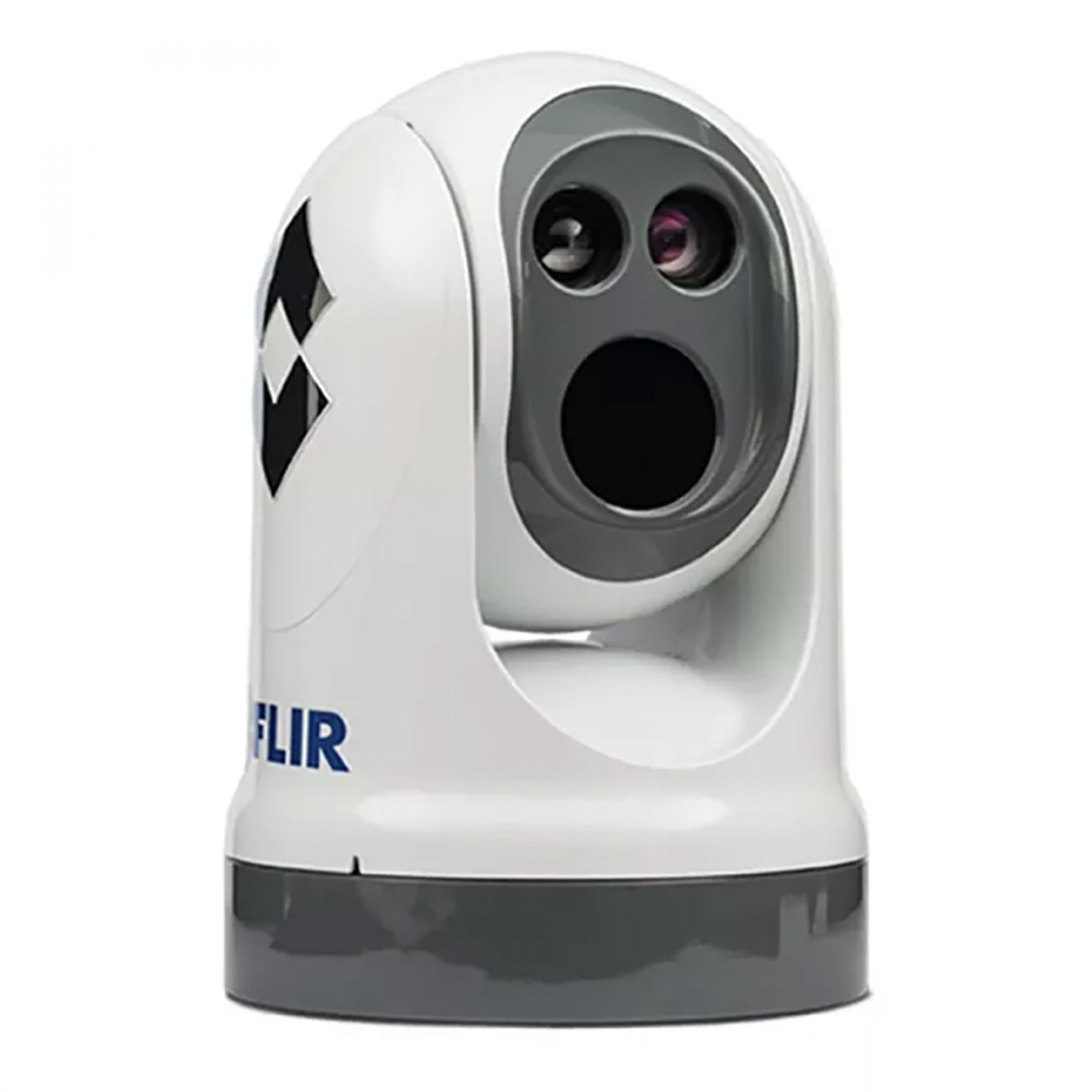

M400XR Thermal/Visible Camera - 9 Hz
Especially designed for first responders, the FLIR M400XR offers detailed 640 × 480 thermal videos, a long-range HD color camera, and a tight-beam LED spotlight for improved target identification. In addition to active gyro-stabilization and radar tracking, the M400XR’s integrated video tracking can lock onto and follow objects within its field of view. Firefighting mode displays a target temperature meter and isotherms to aid firefighters in battling blazes.
Short & Long-Range Detection
M400XRs thermal camera features a 4x optical zoom lens so targets remain in clear, crisp focus right up to maximum magnification.
Thermal & Visible Light Payloads
Combination thermal sensor with up to 3X optical zoom and HD Color camera with 30X zoom.
Built for Harsh Conditions
A rugged, waterproof gimbal enclosure with automatic window heaters keeps the image clear, while gyro-stabilization ensures steady viewing in heavy seas.
Enhanced Awareness for First Responders
The FLIR M-400XR provides exceptional situational awareness for first responders. It includes custom firefighting software that displays a target temperature meter and isotherms. InstAlert™ mode depicts the hottest objects in shades of red and orange for easy identification, while IceAlert™ turns the coolest objects in view blue and green.
Specifications:
Thermal Camera:
- Image Processing: FLIR Proprietary Digital Detail Enhancement
- Optical Zoom: 1× to 4×
- Thermal Detector Type: 640 × 480 VOx Microbolometer
- Thermal E-Zoom: 1× to 4×
- Thermal Field of View: 24° to 6° HFOV / 1.5° HFOV with e-zoom
- Thermal Focal Length: 26 mm (Wide) to 105 mm (Narrow)
- Video Refresh Rate: <9 Hz or 30 Hz (NTSC and PAL)
Visible Camera:
- Lines of Resolution: Up to 1920 x 1080 @ 30fps
- Minimum Illumination: 0.1 lux (ICR off, slow shutter off, high sensitivity off) / 0.006 lux (ICR on, slow shutter off, high sensitivity off)
- Visible Detector Type: 1/2.8” Exmor R CMOS
- Visible E-Zoom: 12x
- Visible Field of View: Optical 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV
- Visible Focal Length: 129 mm to 4.3 mm
- Zoom: 30× Optical Zoom
Spotlight Specifications:
- Type Lumens and Beam: LED, 580 Lumens, 5° Divergence Angle
System Specifications:
- Analog Video Connector Types: F-type BNC with BNC-to-RCA adapter included for video out
- Analog Video Output: NTSC or PAL, 30 Hz or <9 Hz
- Firefighter Mode: Yes
- Gyro Stabilized: Yes
- HD-SDI Lossless Video Output: Yes
- Network Video Output: Four, Independent H.264 Network Video Streams
- Pan-Tilt Adjustment Range: 360° Continuous Pan, ±90° Tilt
- Power Consumption: <50 W nominal; 130 W peak, 250 W 2/heaters
Environmental:
- Automatic Window Defrost: Standard at Power-Up
- EMI: IEC 60945
- Lightning Protection: Standard
- Operating Temperature Range: -13°F to +131°F (-25°C to +55°C)
- Salt Mist: IEC60945
- Sand & Dust Ingress: MIL-STD-810E
- Shock: 15 g vertical, 9 g horizontal
- Storage Temperature Range: -56° F to + 176°F (-50°C to +80°C)
- Vibration: IEC 60945; MIL-STD-810E
- Water Ingress: IPX 6
- Wind; 100 knots (115.2 mph)
Physical
- Size: Camera: 10.8 in. (273mm) x 15.7 in. (398mm) / Camera with Top-Down Riser: 12.8 in. (324mm) x 18.1 in. (459mm)
- Weight: 28 lbs (12.7 kg) (w/o top-down riser)
Range Performance:
- Detect a 30-foot Vessel: 3.7nm (6850m)
- Detect Human-Sized Target: 1.0nm (1800m)
- NATO Target 2.3m x 2.3m at 50 Percent: 2.5nm (4720m)
