Wichard Diamond Pad Eye - Round - 98mm Length (3-55/64") - M8 Screw

Discontinued - There may be a replacement item available, please call us 877-999-3699

SALE!

Wichard Marine

Reviews (0)

Wichard Diamond Pad Eye - Round - 98mm Length (3-55/64") - M8 Screw

Discontinued - There may be a replacement item available, please call us 877-999-3699

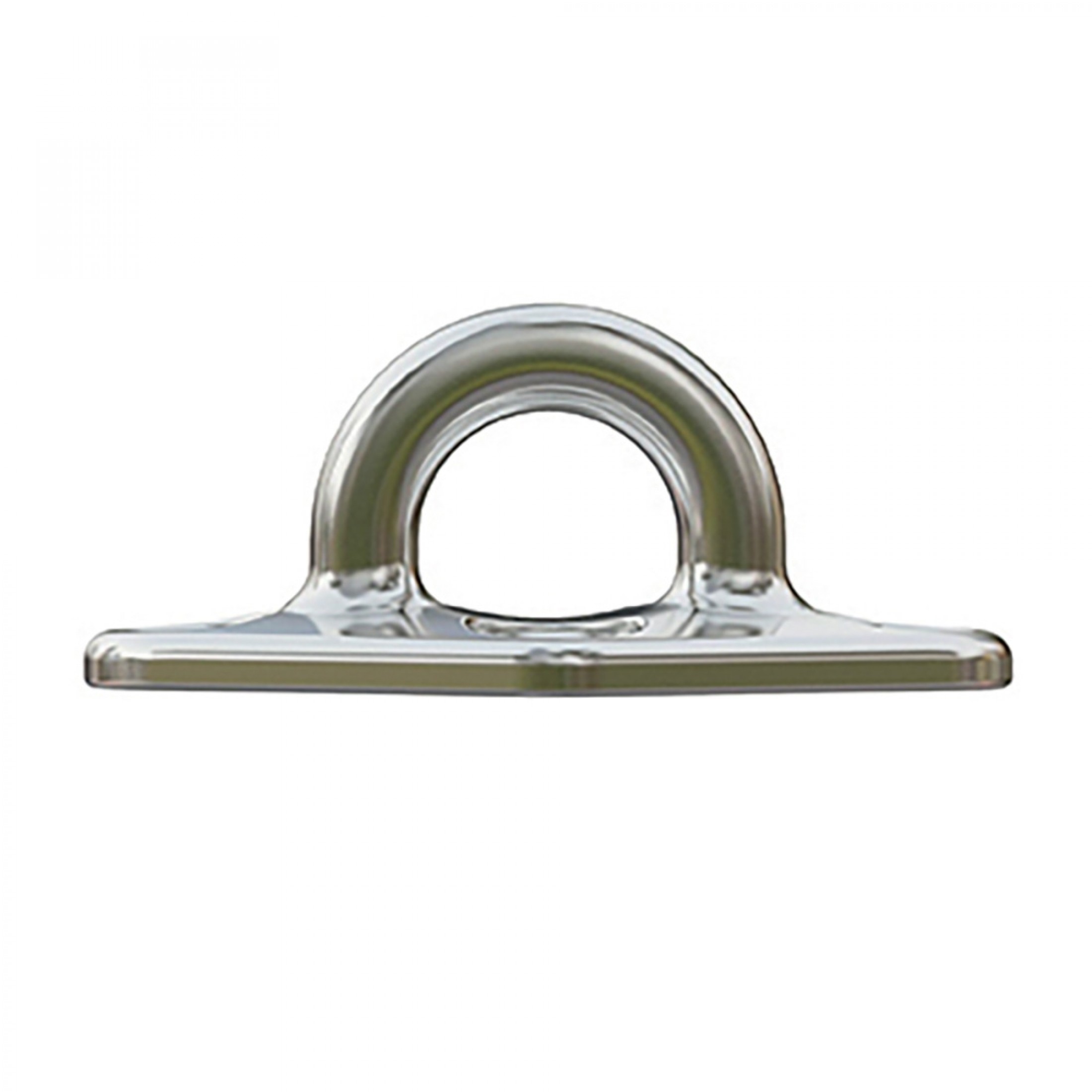

Diamond Pad Eye - Round - 98mm Length (3-55/64") - M8 Screw

Features:

Mechanical resistance versus corrosion resistance ratio
Optimized dimensions
For M8 screw

Applications:

Mast foot... Read More...

SKU: #453241686639864 | Model: #6646

Description Returns

Diamond Pad Eye - Round - 98mm Length (3-55/64") - M8 Screw

Features:

Mechanical resistance versus corrosion resistance ratio
Optimized dimensions
For M8 screw

Applications:

Mast foot blocks
Reefing blocks
Various fastenings

Specifications:

Materials: Duplex stainless steel grade
Working Load: (lb) 9259.4 / (kg) 4200
Breaking Load: (lb) 24691.7 / (kg) 11200
Weight: (lb) 0.551 / (g) 250
W.L 1 (90 degrees): (lb) 9259.4 / (kg) 4200
W.L 2 (45 degrees): (lb) 9259.4 / (kg) 4200
W.L 3 (0 degrees): (lb) 9038.9 / (kg) 4100
B.L 1 (90 degrees): (lb) 24691.7 / (kg) 11200
B.L 2 (45 degrees): (lb) 24691.7 / (kg) 11200
B.L 3 (0 degrees): (lb) 24250.8 / (kg) 11000

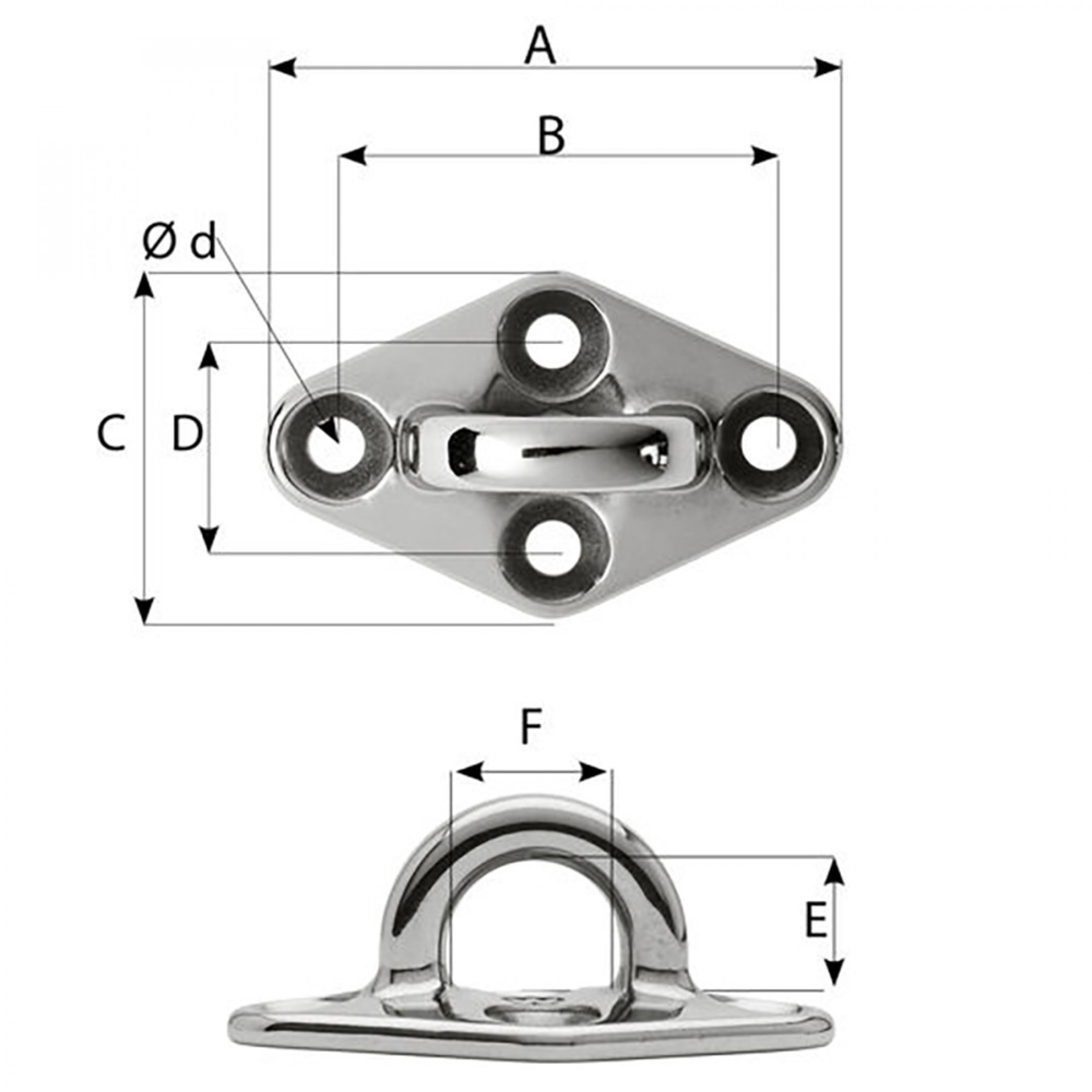

Dimensions:

A: (inch) 3 55/64" / (mm) 98
B: (inch) 2 7/8" / (mm) 73
C: (inch) 2 21/64" / (mm) 59
D: (inch) 1 3/8" / (mm) 35
E: (inch) 55/64" / (mm) 22
F: (inch) 1 1/16" / (mm) 27

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

SKU: #453241686639864
Weight: 0.00 lbs
Brand: Wichard Marine

Model: 6646
Shipping Dimensions: 0.00" x 0.00" x 0.00"
