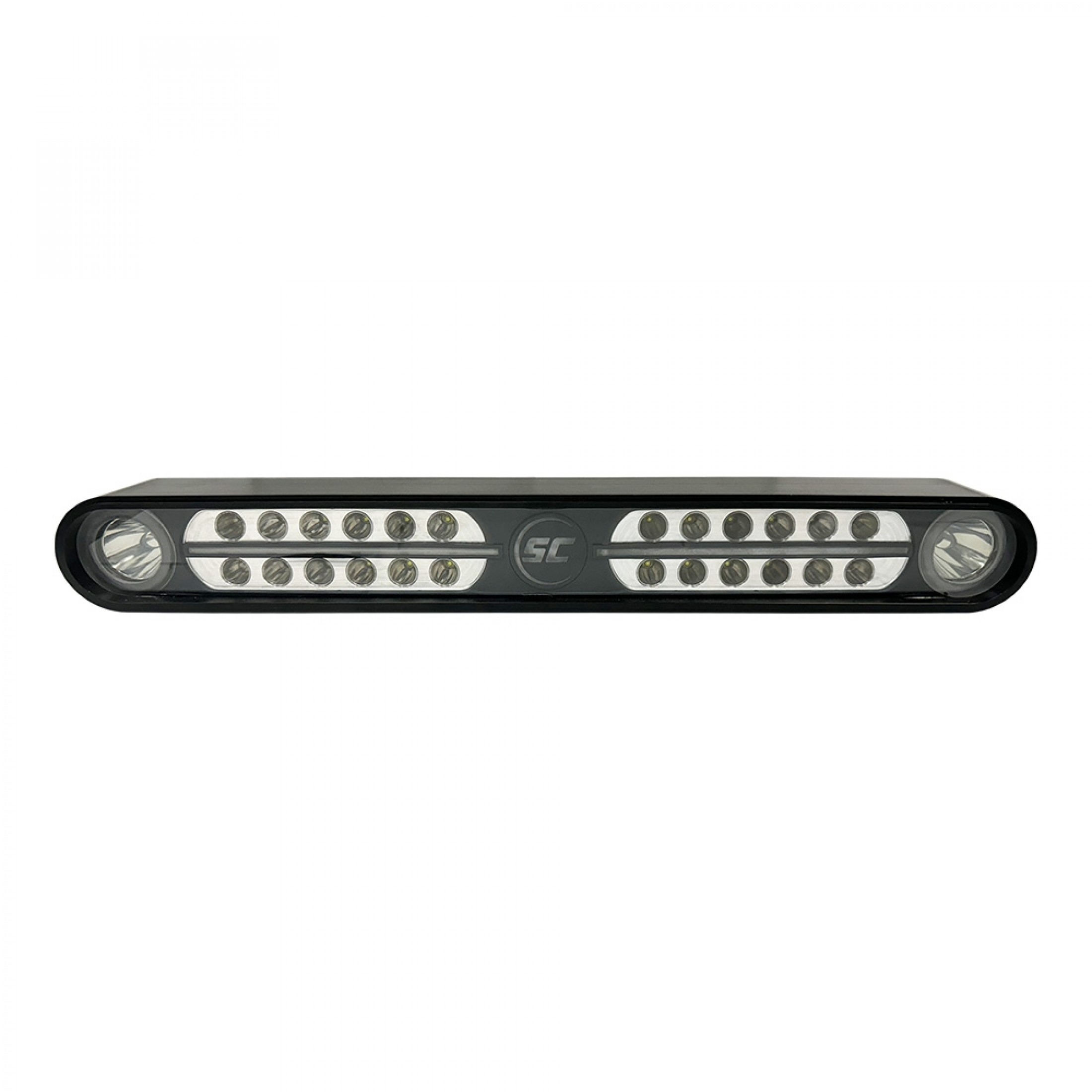

Eagle Ray LED Light Bar - Black Housing & Dual Optics
Utilizing automotive lighting technology and novel beam shaping optics, Shadow-Caster has created the Eagle Ray – a unique light bar with a combination of focused laser-driven white light beams and a wide 60-degree LED flood array to efficiently light the way.
The focused white lights are ideal for long-distance viewing and penetrating fog, rain, and mist. The beam angle and brightness are adjustable with a push button or the Shadow-Caster® NMEA 2000 Light Commander interface.
Laser Features:
- Automotive-grade laser-driven white lights
- Blue halo illumination around optics indicates a power state
- Adjustable 5-100° beam angle control with a switch or MFD interface
Flood Features:
- 24 bright white LEDs
- Blue accent light strips indicate the brightness level
- 60-degree beam angle
- Adjustable brightness control with a switch or MFD interface
Technical Information:
- 20,000 lumens
- Billet Aluminum housing in black finish
- Remote power trigger to provide simpler installation (main current supply is not controlled through a switch)
- Borosilicate glass window
- 10-30V input
- 200W max power
- 16.5A current draw at 12V DC
- 2.5” H x 20” W x 5.4” D [65.3 x 506.5 x 136.9mm]
Control Options
On/off Push Buttons
Click the on/off button to turn the laser/flood lights on. Press and hold the button to adjust the beam angle (laser) or brightness (flood). Click the on/off button to turn the laser/flood lights off.
Standard Marine Rocker Switch
Click the rocker switch up/down button to turn the laser/flood lights on. Press and hold the switch up/down to adjust the beam angle (laser) or brightness (flood). Click the rocker switch up/down button to turn the laser/flood lights off.
Shadow-NET®/ NMEA 2000 Control
Full feature control through a Multi-Function Display (MFD). The Shadow-NET® Light Commander allows for easy and independent control of brightness and beam angle for the Eagle Ray Light Bar. Create and store pre-configured light settings for use as part of a lighting ‘scene’ for convenience at night.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
