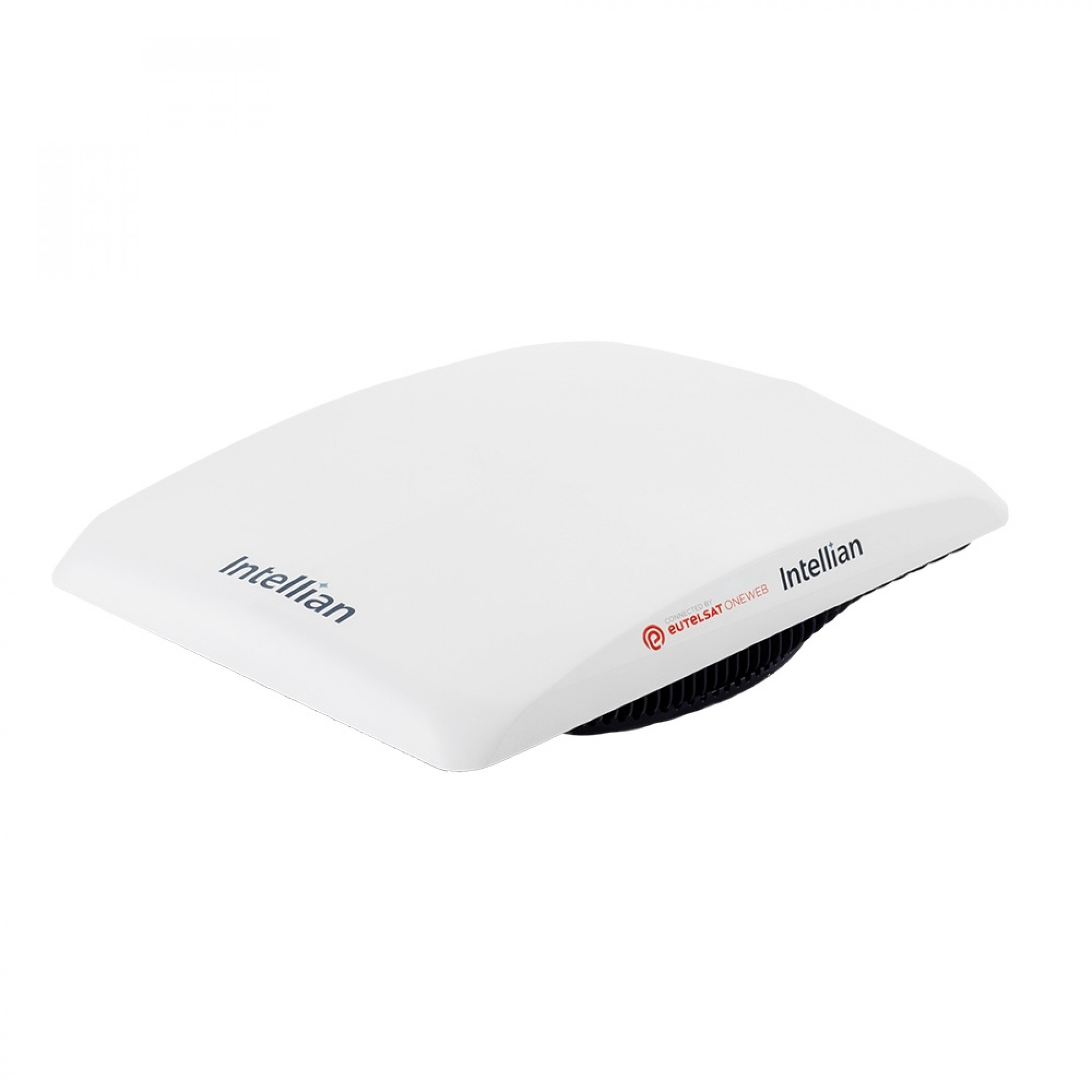

Compact Land Mobile Outdoor Antenna Unit

The OW10HV is the ideal Flat Panel UT for the first responder, forestry, and transportation markets, offering a small, lightweight, and sleek form factor, designed to outperform existing connectivity solutions.

Features:

• Optimized Performance - Utilizing Intellian’s innovative antenna design, the OW10HV delivers optimal performance in a compact form factor, making it the ideal connectivity solution for use cases that are SWaP-constrained. The resulting solution provides the user experience and service levels that customers expect.
• Seamless Connectivity - The OW10HV features Intellian’s advanced tracking technology, improving connection reliability and availability, even on heavy seas and at the lowest elevation angles encountered in equatorial regions. Ensuring minimal loss over scan, the innovative flat panel technology facilitates smooth, reliable handovers, which ensure seamless and uninterrupted connectivity.
• Harsh Environment Performance - The OW10HV is designed to ensure dependable performance in even the most demanding environments, operating in extremely low temperatures down to -40 °C and up to +55 °C (-40 °F to 131 °F). Integrated radar rejection filtering ensures performance in high-interference installations and reliable broadband services for customers situated in the most remote locations.
• Simplified Installation - Lightweight and sleek design with a single coaxial cable for both power and encrypted data, connects the UT to the CNX. Embedded differential dual GNSS antennas enable automated True North calibration and Tilt Error compensation.
• Customer Network Exchange - Intellian’s Customer Network Exchange (CNX) units are a critical component of the user terminal installation, providing both the power and data connectivity to the Flat Panel, and the connectivity to customer equipment and networks. For Compact Flat Panels, there are four CNX variants offered for specific deployments: CNX-BB, CNX-WIFI, CNX-RACK, and CNX-MOBILITY.
• Easily Deployable System - The lightweight design and compact form factor enable easy installation by a single person. Designed for use with standard off-the-shelf mounting solutions, the OW10HV can be deployed in a variety of locations to suit the application and environment. Installation is further simplified through the use of combined power and data over a single coax cable connecting the indoor and outdoor units. The use of Intellian’s mobile app for site survey, automated configuration, and monitoring further reduces the time required to get online.

Technical Specifications:

• Panel Dimensions - 22" x 17.7" x 4.7"
• Panel Weight - 26.9 lbs
• Operating Temperature - -40 °C to +55 °C (-40 °F to +131 °F)
• EIRP (Dual Carrier) - +36.6 dBW
• Ingress - 1P66
• G/T - 9 dB/K
• Interface - F-Type Port SMA Port (R-GNSS)
• Peak Downlink Data Rate - *75 Mbps
• Peak Uplink Data Rate - *14 Mbps

*Performance subject to network configuration. Please consult your Eutelsat OneWeb contact for service offerings in your region.
