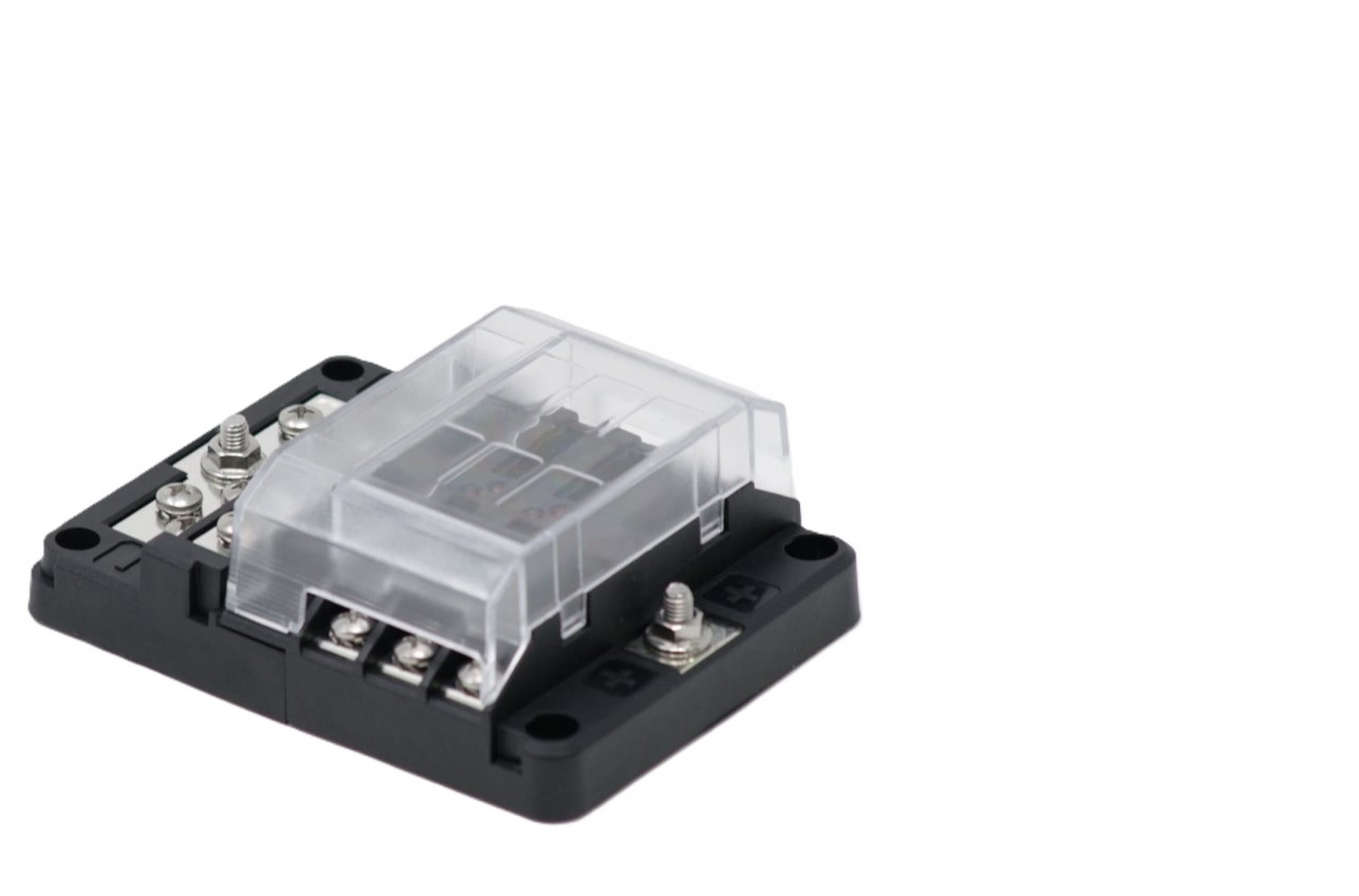

EGIS RT Fuse Block 6 Circuit with Ground and LED Indication

EGIS RT Fuse Block 6 Circuit with Ground and LED Indication

Model: 8025

Spare Fuse Locations Two locations per 6 circuits for spare or test resistors for reducing siren volumes during evaluation.
Stainless Steel Self-Locking Hardware 100 % Non Ferrous corrosion resistant materials. All attachment screws and nuts are self locking.
LED Fuse Diagnostics Blown fuse LED indication for each output circuit provides clear indication of faulty circuits and eases trouble-shooting issues remotely.
Cover/ Label Recesses Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
Ground Block Included Includes 12 position ground return block with multi level low amp terminal screws for improved mounting.
Ground Block Separates Ground block section optionally separates from fuse block section affording increased deployment options for challenging installations.

Bullet-proof Construction: Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on vehicle.

Protects Branch Circuits by accepting ATO style fuses ranging from 1 through 40 Amps.

Supports SAE Circuit Protection Standards for thermal/short circuit events.

Specifications
Max Current - Entire Block (Amps)

100
MAX CURRENT - Per Circuit (AMPS)	30
MAx Output Wire Size	#10 AWG
VOLTAGE RANGE (V DC)	0-36
Number of Fuse Positions	6
Compatible Fuse Types	ATO / ATC / ATF

SKU: #550051775759964
Weight: 0.90 lbs
Brand: Egis Mobile Electronics

Model: 8025
Shipping Dimensions: 0.00" x 0.00" x 0.00"
