B&G Hydraulic Ram T2 24V Drive Unit

$2,858.90 (Available - Call for Info 877-999-3699)
B & G
Reviews (0)

B&G Hydraulic Ram T2 24V Drive Unit

$2,858.90 (Available - Call for Info 877-999-3699)

B & G Hydraulic Ram T2 24V

Model: RAM-T2-24V

The RAM T2 Hydraulic linear actuator combines a cylinder, pump, motor, clutch and reservoir in a pre-filled, sealed unit. Designed to be used on vessels fitted with mechanical primary steering that can be back-driven. When the... Read More...

SKU: #550891775759746 | Model: #RAM-T2-24V

Share:

Description Returns

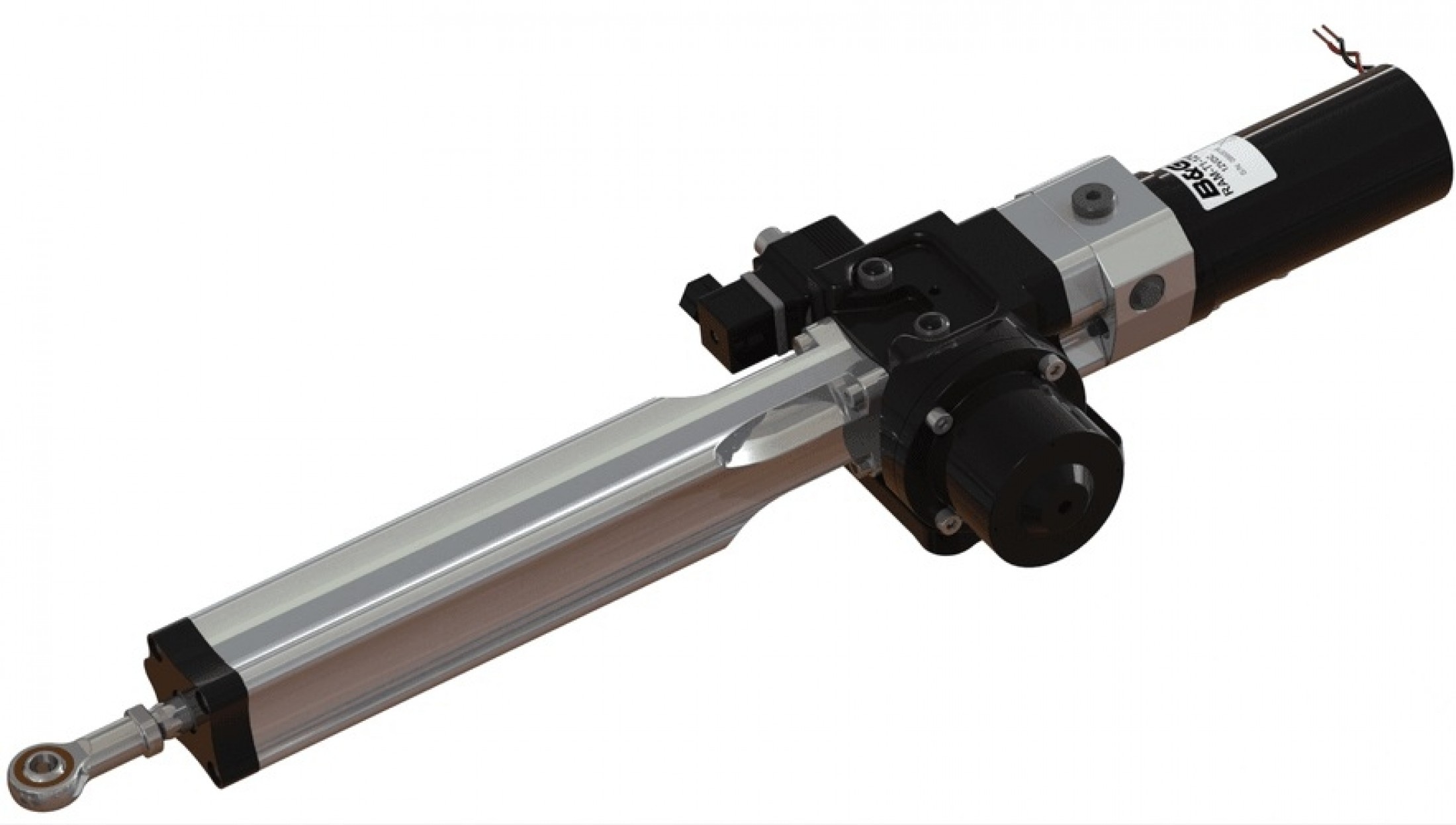

B & G Hydraulic Ram T2 24V

Model: RAM-T2-24V

The RAM T2 Hydraulic linear actuator combines a cylinder, pump, motor, clutch and reservoir in a pre-filled, sealed unit. Designed to be used on vessels fitted with mechanical primary steering that can be back-driven. When the clutch is disengaged the cylinder is free and moves with the primary steering. To operate the unit in autopilot mode the course computer energizes the clutch solenoid coil and runs the bi-directional motor to extend and retract the ram. Internal relief valves protect the unit and its mountings from rudder strikes, grounding etc.

Specifications
Maximum thrust (intermittent)
675 kg
Hard over time nominal RAM-T29 sec
Temperature rating minimum-20oc
Temperature rating maximum+65oc
Relief valve setting62 bar
Back-drive at 12 sec Hard-over7kg
Electrical
Compatible computersH5000 / NAC3
Motor voltage nominal24v DC
Motor power100 watt
Max current 12v 25% duty11.2 A
RotationReversing
ProtectionIP44
Connection1m 2 Core Flying Lead
Ignition protectionBS EN 28846:1993
Coil power continuous12 watt
Recommended oilMineral based hydraulic ISO VG10
Materials
BodyAluminium BS 1490
Piston rodChrome Plated Stainless Steel
SealsNitrile & PTFE
Body ProtectionSP270

  • SKU: #550891775759746
  • Weight: 24.30 lbs
  • Brand: B & G
  • Model: RAM-T2-24V
  • Shipping Dimensions: 0.00" x 0.00" x 0.00"
