Fusion Apollo MS-RA800 Marine Stereo
Model: 010-02937-00
- SLEEK, MODERN DESIGN FEATURES EDGE-TO-EDGE GLASS DISPLAY
- ENJOY PREMIUM WI-FI STREAMING WITH HIGH-RESOLUTION LOSSLESS AUDIO
- BUILT-IN CLASS-D AMPLIFIER BOASTS 50% MORE POWER OUTPUT
- SEE QUICKER RESPONSE WITH 8 TIMES FASTER DIGITAL PROCESSING SPEED
- SHARE ONBOARD AUDIO SOURCES WITH STEREO GROUPING
- REMOTELY CONTROL YOUR MUSIC FROM COMPATIBLE DEVICES
It's the most powerful and technologically advanced Fusion(R) marine stereo ever. With audiophile-level components and a built-in amplifier providing twice the power of the predecessor RA770, this system delivers lossless audio performance of unmatched clarity. Plus, its Wi-Fi(R) connectivity supports seamless AirPlay(R) audio streaming on your boat.
Our first marine stereo to support high-resolution lossless audio (up to 24 bits at 96 kHz), RA800 offers unparalleled sound quality - supported by Wi-Fi technology for seamless audio streaming.
The built-in Class-D amplifier can deliver 4 x 40 watts RMS (all channels driven) with less than 0.1% total harmonic distortion at 4 ohms - producing more than 50% more power output1 than its predecessor.

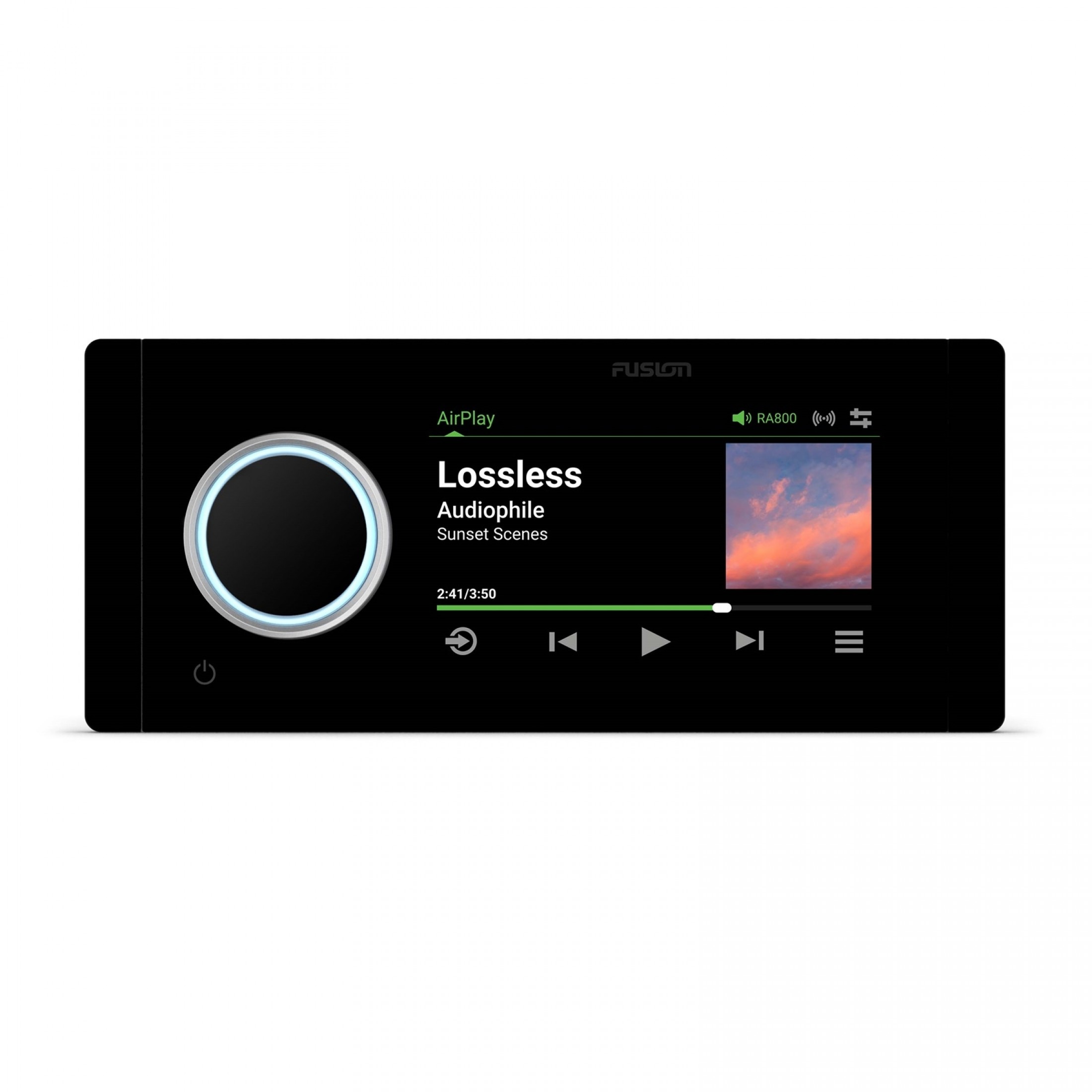

The stereo's 4.3-inch LCD touchscreen display offers notable improvements1 in image resolution, color saturation, viewing angles and readability in bright daylight.
Connect your RA800 stereo with other Apollo Series stereos to create a network on board your boat. Enjoy advanced features, including stereo grouping, combined volume control, power options and Home Zone control.
Take advantage of a wide variety of source options available, including AirPlay streaming from Apple(R), BLUETOOTH(R) connectivity, HDMI ARC, DAB+ radio tuner, USB connections, AM/FM radio and AUX inputs.
Easily network your RA800 stereo with a compatible Garmin MFD via NMEA 2000(R) networking for integrated audio control at the helm. Or use the Fusion(R) Audio app to wirelessly control your music from a compatible Garmin smartwatch or other smart device.
QUICK SWITCH FROM RA770 TO RA800: With an identical form factor and wiring loom as the predecessor RA770, upgrading and installation are simple with RA800.
SpecificationsPhysical dimensions (Height)| 3.23 (82 mm) | | Physical dimensions (Width) | 7.56 in (192 mm) |
| Physical dimensions (Depth) | 4.7 in (119.4 mm) |
| Weight | 1.37 lbs (620 g) |
| Control Surface Dust/Water Rating (when properly installed) | IPX6 and IPX7 |
| Rear Dust/Water Rating (when properly installed) | IPX3 |
| Operating temperature range | -20 to 70 deg C |
| Current draw (max) | 25 A at 14.4 V; 15A at 28.8 V |
| Warranty | 3 years |
| Networking |
| NMEA 2000(R) LEN | 2 (65 mA) |
| BLUETOOTH(R) wireless range | up to 30 ft |
| ANT(R) wireless range | Up to 10 ft |
| Wireless frequencies/protocols | WiFi 2.4Ghz : +12dBm nominal MIMO 2 x 2 |
