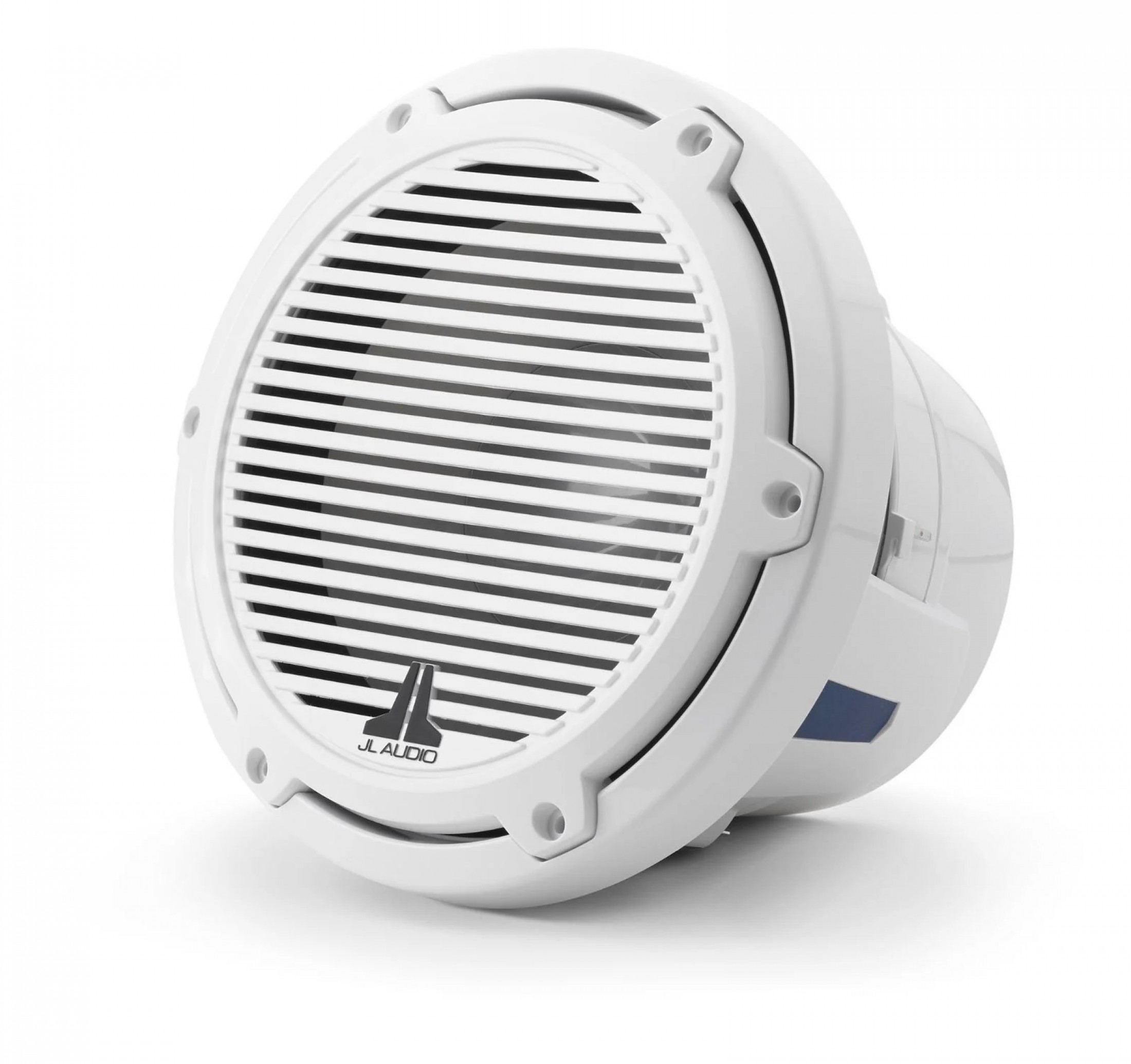

JL Audio M6 8in Subwoofer with White Classic Grille Infinite Baffle
93615
Model: M6-8IB-C-GwGw-4
M6 8-inch Marine Subwoofer for Infinite-Baffle Use (200 W, 4 ohms) - Gloss White Trim Ring, Gloss White Classic Grille
With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.
Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system.
The M6-8IB is best used with amplifier power in the 50W - 200W range and is optimized to operate with a large volume of air behind it (at least 1.5 cu. ft. / 42.5 l). If you prefer to use a dedicated enclosure, refer to one of the suggested designs located in the Specifications section for optimum performance.
Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.
Production of all M6 loudspeakers takes place in JL Audio's Miramar, Florida factory, using global components and materials.
Sold individually.
USA Limited Warranty: Two (2) years from the original date of purchase.
SpecificationsContinuous Power Handling (RMS)| 200 W | | Nominal Impedance (Znom) | 4 ohms |
| Physical Specifications |
| Nominal Diameter | 8.0 in / 200 mm |
| Overall Diameter | 8.80 in / 224 mm |
| Bolt Hole Circle Diameter | 7.97 in / 202 mm |
| Frontal Grille Protrusion | 1.45 in / 37 mm |
| Mounting Hole Diameter | 7.375 in / 187 mm |
| Mounting Depth | 5.00 in / 127 mm |
| Driver Displacement | 0.033 cu ft / 0.93 L |
| Net Weight | 8.70 lb / 3.90 kg |
| Parameters |
| Free Air Resonance (Fs) | 54.92 Hz |
| Electrical "Q" (Qes) | 0.852 |
| Mechanical "Q" (Qms) | 10.314 |
| Total Speaker "Q" (Qts) | 0.787 |
| Equivalent Compliance (Vas) | 0.54 cu ft / 15.29 L |
| One-Way Linear Excursion (Xmax)* | 0.53 in / 14 mm |
| Reference Efficiency (no) | 0.28% |
| Efficiency (1 W / 1 m)** | 86.7 dB SPL |
| Effective Piston Area (Sd) | 35.15 sq in / 0.0227 sq m |
| DC Resistance (Re) | 2.993 ohms |
| * Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. |
| ** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer's output capability and should not be used as a comparison to other subwoofers to determine which one is "louder". |
| Sealed Enclosure Specifications |
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| External Width (W) | 16 in / 406 mm |
| External Height (H) | 16 in / 406 mm |
| External Depth (D) | 18.25 in / 464 mm |
| F3 | 51.78 Hz |
| Fc | 61.89 Hz |
| Qtc | 0.8869 |
| Ported Enclosure Specifications |
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 1.50 cu ft / 42.5 L |
| External Width (W) | 16 in / 406 mm |
| External Height (H) | 16 in / 406 mm |
| External Depth (D) | 15.125 in / 384 mm |
| Internal Port Diameter (ID) | 4 in / 102 mm |
| Port Length (L) | 3.50 in / 343 mm |
| Tuning Frequency (Fb) | 37 Hz |
| F3 | 31.26 Hz |
