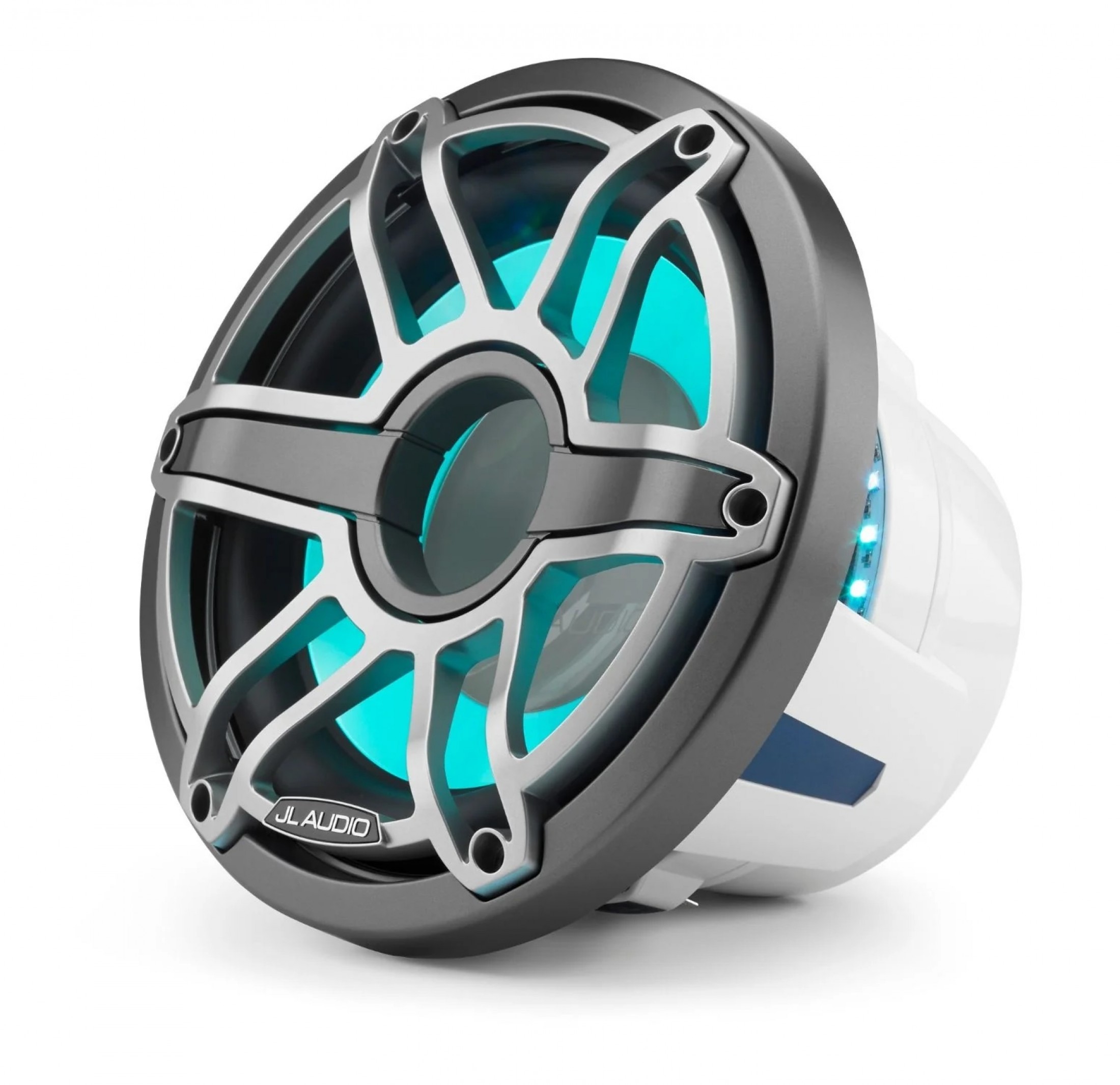

JL Audio M6 10in Subwoofer with Titanium Sport Grille Infinite Baffle, RGB LED
93638
Model: M6-10IB-S-GmTi-i-4
M6 10-inch Marine Subwoofer with TransflectiveTM LED Lighting for Infinite-Baffle Use (250 W, 4 ohms) - Gray Metallic Trim Ring, Titanium Sport Grille
With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.
Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system.
The M6-10IB is best used with amplifier power in the 75W - 250W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l). If you need a Subwoofer that operates in a small sealed enclosure, select our M6-10W, instead.
Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.
Production of all M6 loudspeakers takes place in JL Audio's Miramar, Florida factory, using global components and materials.
Sold individually.
USA Limited Warranty: Two (2) years from the original date of purchase.
SpecificationsContinuous Power Handling (RMS)| 250 W | | Nominal Impedance (Znom) | 4 ohms |
| Physical Specifications |
| Nominal Diameter | 10.0 in / 250 mm |
| Overall Diameter | 10.75 in / 273 mm |
| Bolt Hole Circle Diameter | 9.70 in / 247 mm |
| Frontal Grille Protrusion | 1.66 in / 42 mm |
| Mounting Hole Diameter | 8.875 in / 225 mm |
| Mounting Depth | 5.90 in / 150 mm |
| Driver Displacement | 0.052 cu ft / 1.47 L |
| Net Weight | 12.60 lb / 5.70 kg |
| Parameters |
| Free Air Resonance (Fs) | 43.76 Hz |
| Electrical "Q" (Qes) | 0.907 |
| Mechanical "Q" (Qms) | 11.315 |
| Total Speaker "Q" (Qts) | 0.84 |
| Equivalent Compliance (Vas) | 0.54 cu ft / 15.29 L |
| One-Way Linear Excursion (Xmax)* | 0.52 in / 13.2 mm |
| Reference Efficiency (no) | 0.28% |
| Efficiency (1 W / 1 m)** | 86.1 dB SPL |
| Effective Piston Area (Sd) | 50.11 sq in / 0.0323 sq m |
| DC Resistance (Re) | 4.54 ohms |
| * Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. |
| ** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer's output capability and should not be used as a comparison to other subwoofers to determine which one is "louder". |
| Sealed Enclosure Specifications |
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 2.00 cu ft / 56.6 L |
| External Width | 17 in / 432 mm |
| External Height | 17 in / 432 mm |
| External Depth | 16.25 in / 413 mm |
| F3 | 41.54 Hz |
| Fc | 53.41 Hz |
| Qtc | 1.0253 |
| Ported Enclosure Specifications |
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 2.50 cu ft / 70.8 L |
| External Width | 17 in / 432 mm |
| External Height | 17 in / 432 mm |
| External Depth | 20.50 in / 676 mm |
| Internal Port Diameter | 4 in / 102 mm |
| Port Length | 12 in / 305 mm |
| Tuning Frequency (Fb) | 37 Hz |
| F3 | 25.09 Hz |
