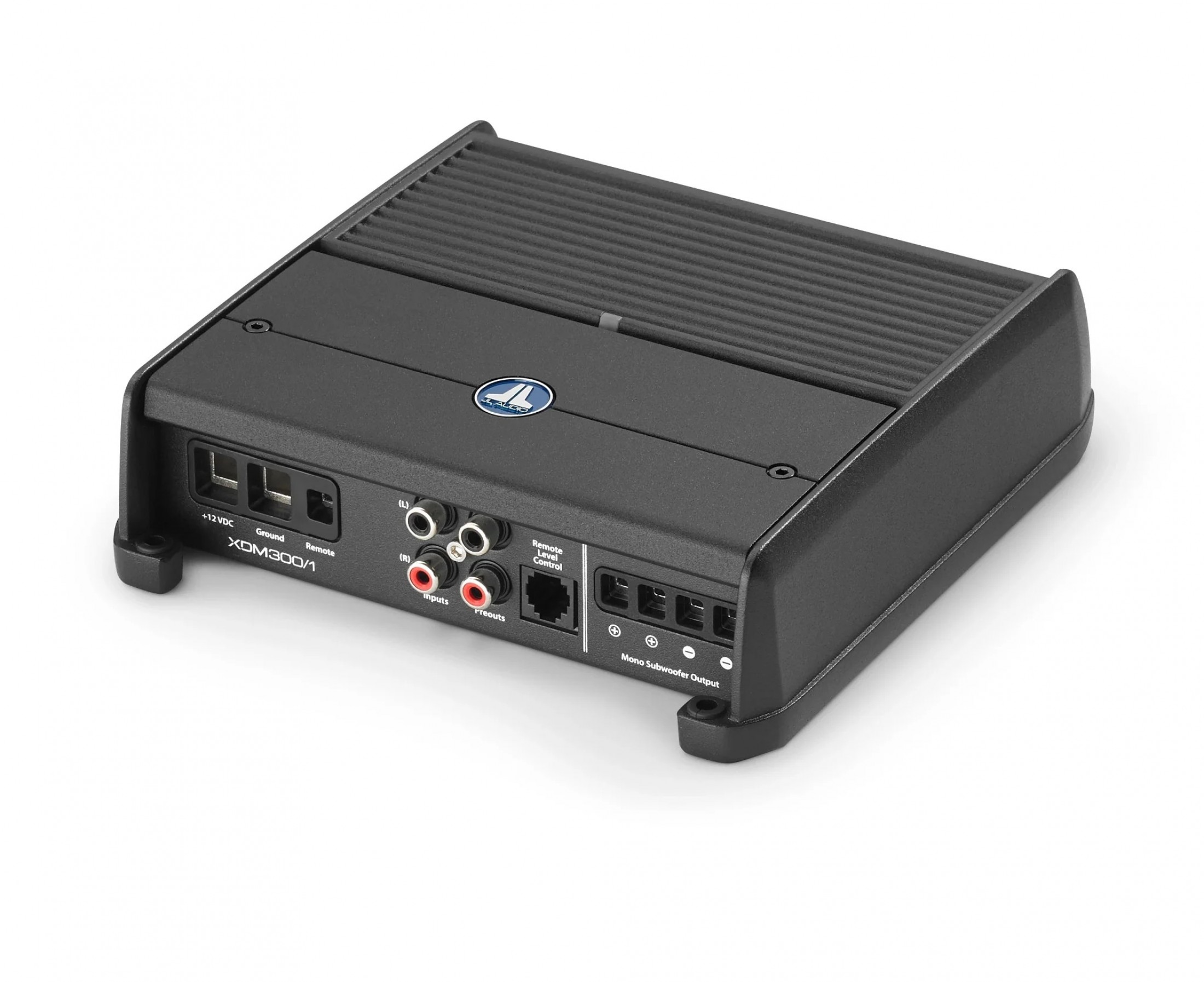

J Audio XDM300/1 Monoblock, Class D, Car/Marine Subwoofer Amplifier, 300 W
Model: XDM300/1
This little monoblock powerhouse employs our high-speed NexDTM switching design to achieve unprecedented efficiency and amazing power output for its size. It is small enough to fit in most tight space applications, including small boats, pickups, motorcycles and UTV's (in a weather-tight compartment).
Designed for car or boat installations, the XDM300/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
Targeted specifically for subwoofer applications, the XDM300/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain's chair.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications@ 4 Ohms| 200 W RMS x 1 | | @ 3 Ohms | 250 W RMS x 1 |
| @ 2 Ohms | 300 W RMS x 1 |
| @ 1.5 Ohms | N/A |
| Rated Continuous (RMS) Power @ 12.5 V |
| @ 4 Ohms | 160 W RMS x 1 |
| @ 3 Ohms | 210 W RMS x 1 |
| @ 2 Ohms | 270 W RMS x 1 |
| @ 1.5 Ohms | N/A |
| General Specifications |
| Frequency Response | 10 Hz - 1 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >100 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 ? | >120 / 50 Hz |
| Damping Factor @ 2 ? | >60 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 ? per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV - 4 V RMS |
| Min.Copper Power / Ground Wire Gauge | 8 AWG wire |
| Fuse Rating | 30 A (AFS, AGU or MaxiFuseTM) |
| Signal Processing |
| Filter Mode(s) | Low-Pass only |
| Filter Slope(s) | 12/24 dB/octave |
| Filter Frequency Range | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | Yes |
| Filter Defeat Function | Yes |
| Infrasonic Filter | none |
| Bass Boost EQ | No |
| Output Polarity Switch | No |
| Remote Subwoofer Level Control | Optional HD-RLC or MHD-RLC (water-resistant) |
| Remote Bass EQ Boost Control | No |
| Pass-Through Preamp Output | Buffered |
| Physical Specifications |
| Height (H) | 2.05 in / 52 mm |
| Width (W) | 6.85 in / 174 mm |
| Depth (D) | 7.09 in / 180 mm |
| Net Weight | 3.8 lb / 1.72 kg |
