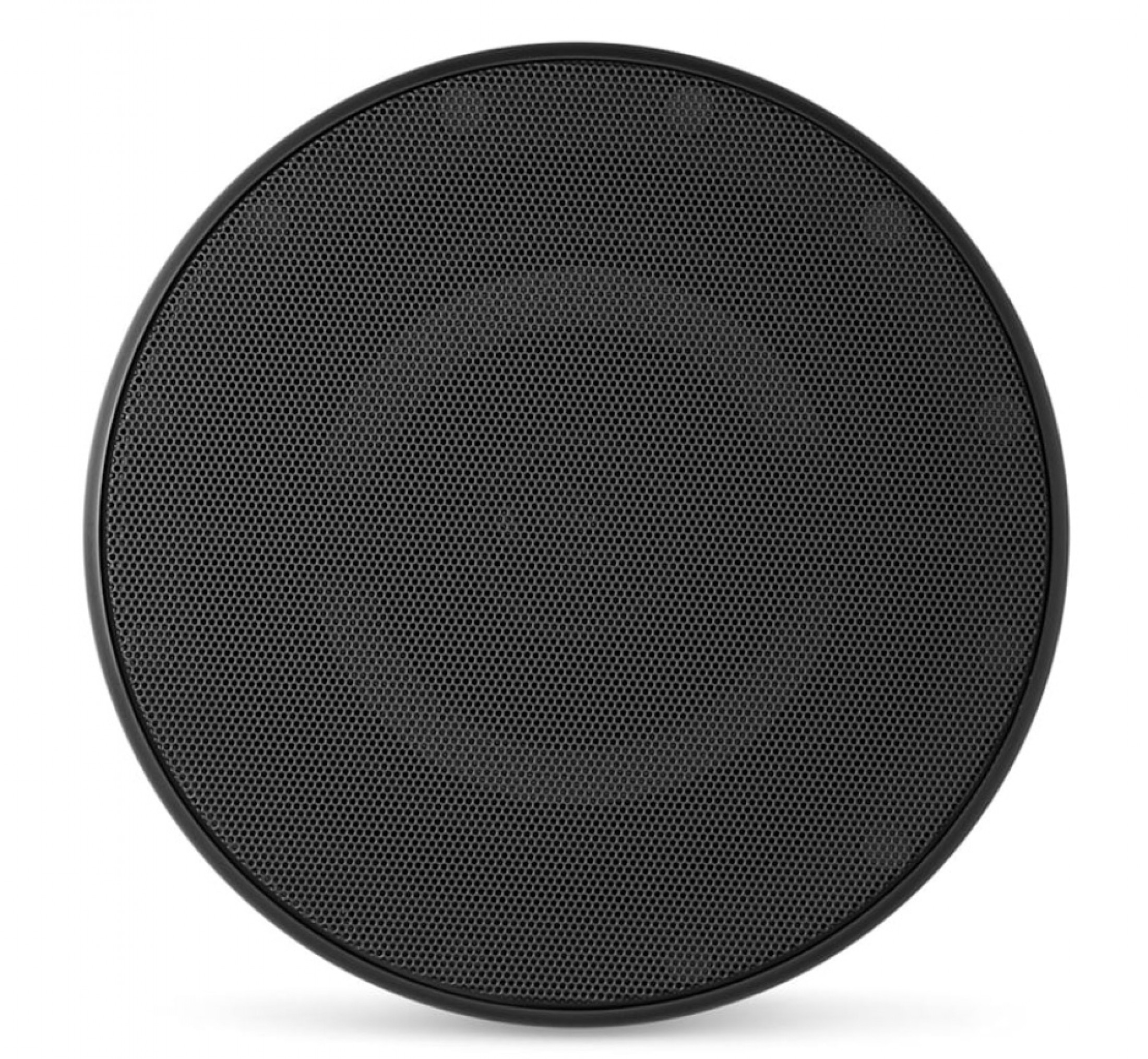

JL Audio M6 7.7in Coaxial Speakers Black LUXe Grille Single Speaker

$499.99 $467.49 (Available - Call for Info 877-999-3699)
SALE!

JL Audio M6 7.7in Coaxial Speakers Black LUXe Grille Single Speaker

$499.99 $467.49 (Available - Call for Info 877-999-3699)

JL Audio M6 7.7in Coaxial Speakers Black LUXe Grille Single Speaker

M6-770X-L-SbSb-Single

Model: 010-03866-00
  • DMA-OPTIMIZED WOOFERS: Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient... Read More...

SKU: #559101775760042 | Model: #010-03866-00

Share:

JL Audio M6 7.7in Coaxial Speakers Black LUXe Grille Single Speaker

M6-770X-L-SbSb-Single

Model: 010-03866-00
  • DMA-OPTIMIZED WOOFERS: Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.
  • MATCHING SILK DOME TWEETERS: Precisely tuned tweeters, uniquely sized for each woofer's diameter, produce sparkling detail and excellent off-axis response for balanced coverage in the entire listening area.
  • ADVANCED FILTER NETWORKS: Each woofer chassis houses a multi-order, true two-way crossover optimized for each speaker size and electronic tweeter protection circuit to minimize the possibility of tweeter failure.
  • POWERFULLY EFFICIENT: M6 marine speakers are designed to benefit from operation with quality amplification.
  • REAL MARINE DUTY: For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

Featuring a long-excursion woofer design paired with a suspended tweeter, M6 marine speakers are designed to yield unmatched frequency response and linear performance at all listening levels.

Specifications
Size
7.7 in
ColorBlack
Speaker typeCoaxial
Continuous power handling (RMS)100 W
Sensitivity (SPL @ 1 W/1 m)91.0 dB
Frequency response (+/- 3 dB)45 Hz-25 kHz
Nominal impedance4 Ohm
Recommended amplifier power (RMS) 40-200 W/Channel
Cone materialInjection-molded, mica-filled polypropylene
Tweeter typeSilk Dome
Tweeter size1 (25 mm)
Warranty3 years
Speaker connectionsSpade Connectors
Mounting Dimensions
Mounting depth clearance4.26 in (108 mm)
Frontal grille protrusion0.38 in (10 mm)
Mounting hole7.50 in (191 mm)
Bolt hole circle8.18 in (208 mm)

What's in the Box:
  • Marine coaxial loudspeaker
  • Six stainless steel mounting screws
  • Six stainless steel screws washers
  • Grille removal tool
  • Mounting template
  • "

  • SKU: #559101775760042
  • Weight: 7.00 lbs
  • Brand: JL Audio
  • Model: 010-03866-00
  • Shipping Dimensions: 0.00" x 0.00" x 0.00"
