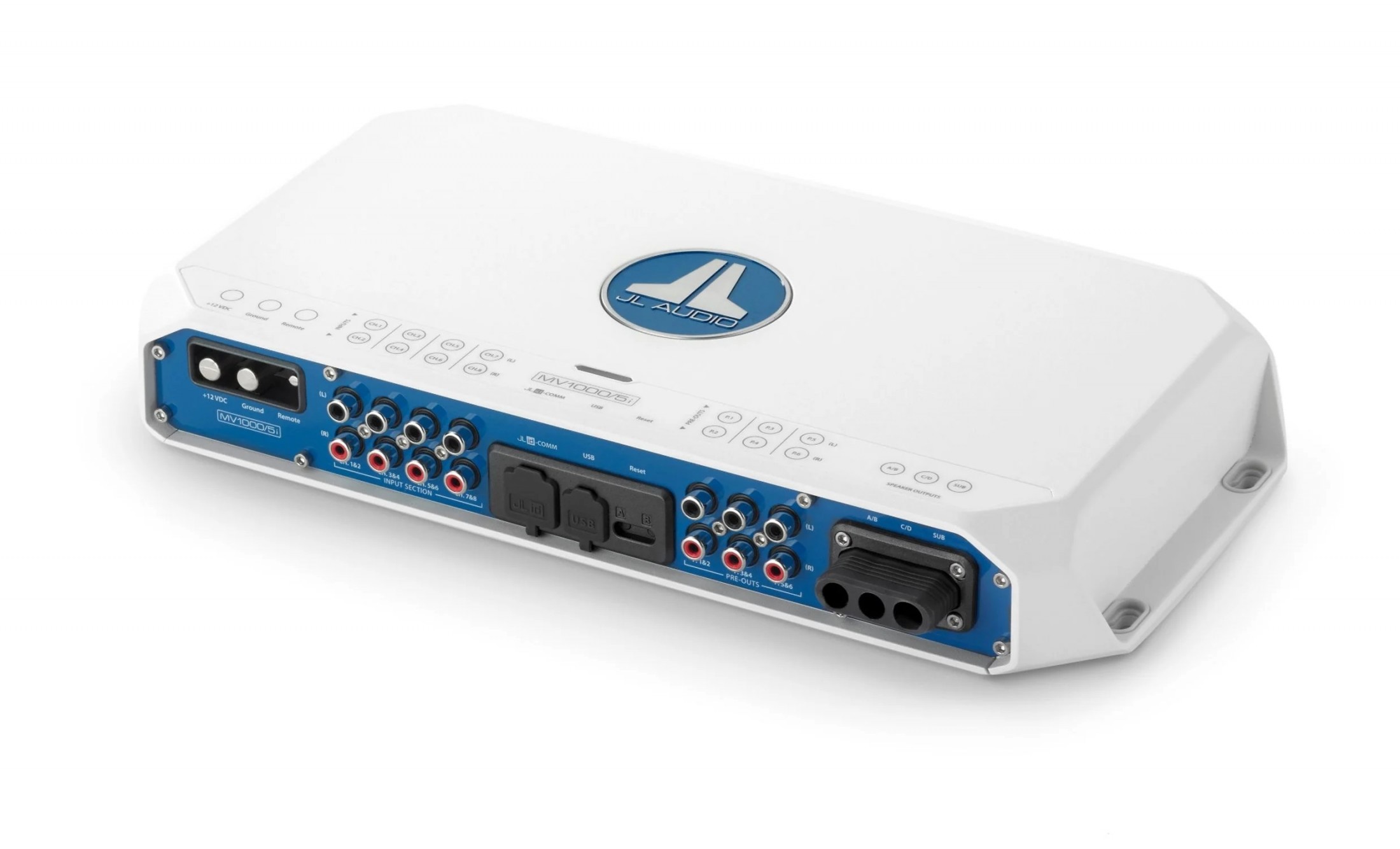

JL Audio MVi Marine Amplifier 5 Channel Full-Range 1000 Watts 12v Integrated DSP
98651
Model: MV1000/5i
5-Channel Class D Marine System Amplifier with Integrated DSP, 100 W x 4 @ 2 ohms + 600 W x 1 @ 2 ohms - 14.4V
Engineered to deliver reference-grade audio performance in marine environments, every MVi amplifier unites our cutting-edge NexD2TM switching amplifier technology with an integrated, full-featured digital signal processor.
Equipped with our second-generation NexD2TM technology, the MV1000/5i is capable of powering a complete marine audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms, while also powering a subwoofer with up to 600W @ 2 ohms. Bridging the main channels transforms it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 600W @ 2 ohms on the subwoofer channel.
The NexD2TM full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFETTM outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2TM technology. The amplifier chassis is a ultra-compact, cast alloy design with marine-grade powder coat finish and corrosion-resistant hardware.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN(R) Software application installed.
USA Limited Warranty: Two (2) years from the original date of purchase.
SpecificationsMain Channels @ 4 ohms| 75 W RMS x 4 | | Main Channels @ 2 ohms | 100 W RMS x 4 |
| Main Channels - Bridged @ 4 ohms | 200 W RMS x 2 |
| Subwoofer Channel @ 4 ohms | 400 W RMS x 1 |
| Subwoofer Channel @ 3 ohms | 500 W RMS x 1 |
| Subwoofer Channel @ 2 ohms | 600 W RMS x 1 |
| Subwoofer Channel @ 1.5 ohms | N/A |
| Rated Continuous (RMS) Power @ 12.5 V |
| Main Channels @ 4 ohms | 60 W RMS x 4 |
| Main Channels @ 2 ohms | 90 W RMS x 4 |
| Main Channels - Bridged @ 4 ohms | 180 W RMS x 2 |
| Subwoofer Channel @ 4 ohms | 360 W RMS x 1 |
| Subwoofer Channel @ 3 ohms | 480 W RMS x 1 |
| Subwoofer Channel @ 2 ohms | 600 W RMS x 1 |
| Subwoofer Channel @ 1.5 ohms | N/A |
| General Specifications |
| Frequency Response (Main Channels) | 12 Hz - 24 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels) | 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel) | 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Analog Inputs - Main Channels) | 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel) | 72 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 2 ohms | >50 / 50 Hz |
| Damping Factor @ 4 ohms | >150 / 50 Hz |
| THD+N @ Rated Power (Main Channels) | <1% @ 2 ohms per Ch. |
| THD+N @ Rated Power (Subwoofer Channels) | <1% @ 2 ohms per Ch. |
| Input Voltage Range @ RCA Inputs | 250 mV - 16 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 80 A (AFS, AGU or MaxiFuseTM) |
| Physical Specifications |
| Height | 2.05 in / 52 mm |
| Width | 13.96 in / 355 mm |
| Depth | 6.93 in / 176 mm |
| Net Weight | 5.6 lb / 2.54 kg |
What's in the Box:- MV1000/5i Amplifier
- Power Connector (for 4 AWG wire)
- Speaker Output Harnesses (2)
- Subwoofer Output Harness
- 6 ft A/B USB Cable
