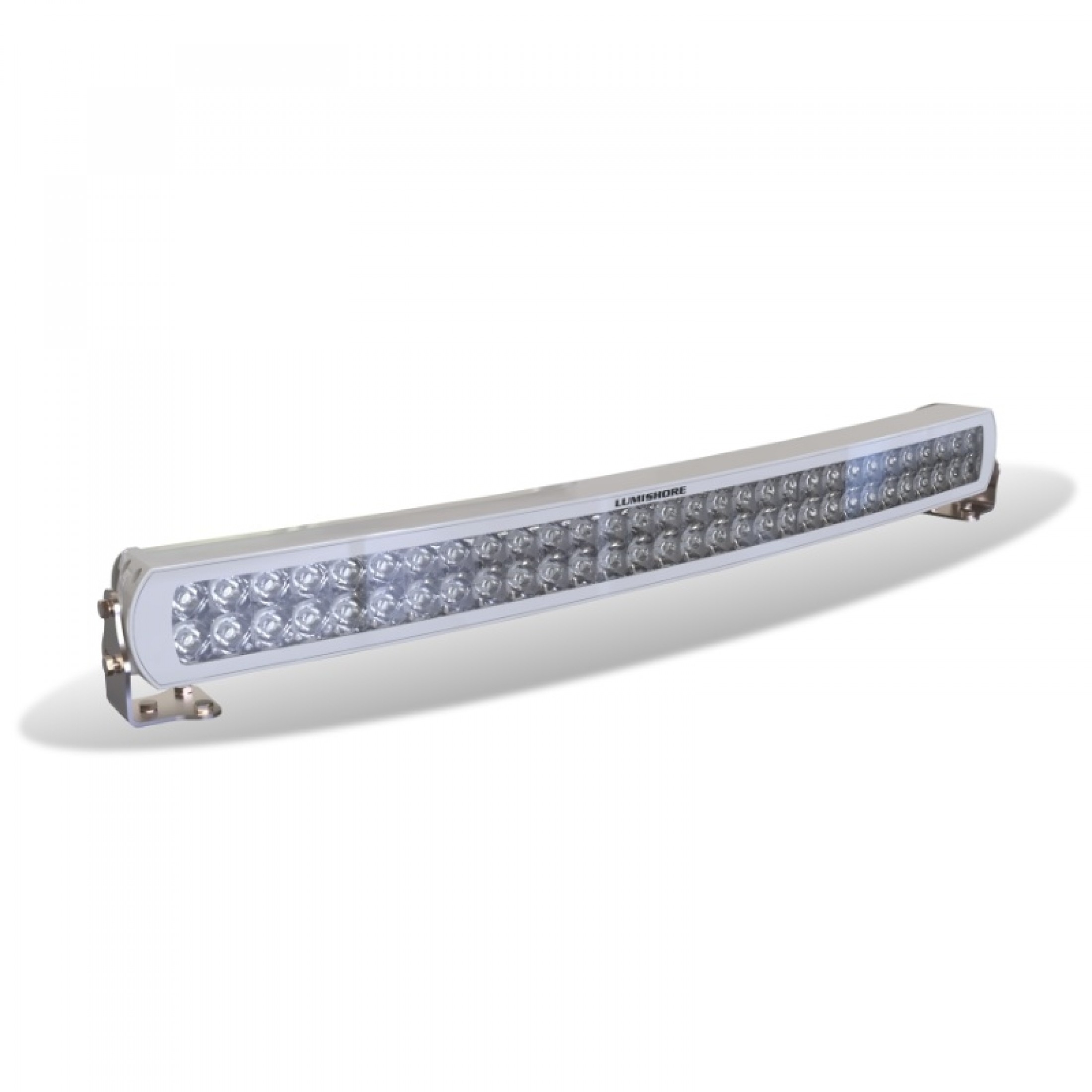

Lumishore 30in Curved Lightbar White LED, White Housing 12/24vDC
Model: 010-04463-00
Lumishore's new collection of Light Bars are designed to offer a high-intensity light source, covering a wide spread area.
The 30 feet' (80cm) Light Bar delivers an incredible output (23,760 fixture lumens) of crisp, white light to illuminate your boat deck and beyond. Available in 20 in, 30 in, 40 in and 50 in models, allowing for versatile placement onboard.
Designed to withstand the harshest marine environments, completely water tight (IP68 compliant) and constructed with marine-grade powder coated aluminium. Suitable for T-Tops, helm roofs, fishing towers and bow platforms.
Controllable via an on/off switch, ECLIPSE Command Center
or EOS-LUX Command Center.
SpecificationsAvailable colors| White (5500 K) | | Lumens | 53,460 |
| Fixture Lumens | 23,760 |
| Number & Type Of LED | 60 x 10W White LED |
| LED Power HICOB Array | Yes |
| Typical LED Life | 50,000+ Hours |
| User Control Options | On/Off Switch (Third party supplied), ECLIPSE Command Center or EOS-LUX Command Center |
| Electrical Installation | Simple 2 Wire Connection (3 Wires when used with EOS-LUX Command Center) |
| Housing Type | Powder Coated Aluminium Body with Makrolon Lens |
| Driver | Internal |
| Supply Voltage Range | 10.5-31 V DC |
| Max Current Draw 12/24V | 19.3 A/9.6 A |
| Beam Angle | 9 deg - 32 deg Letterbox Beam (Vert - Horiz) |
| Water Ingress Protection Rating | IP68 |
| Warranty | 3 Years |
What's in the Box:- One (1) Light Bar - Curved 30
- Stainless steel bracket and fasteners
"
