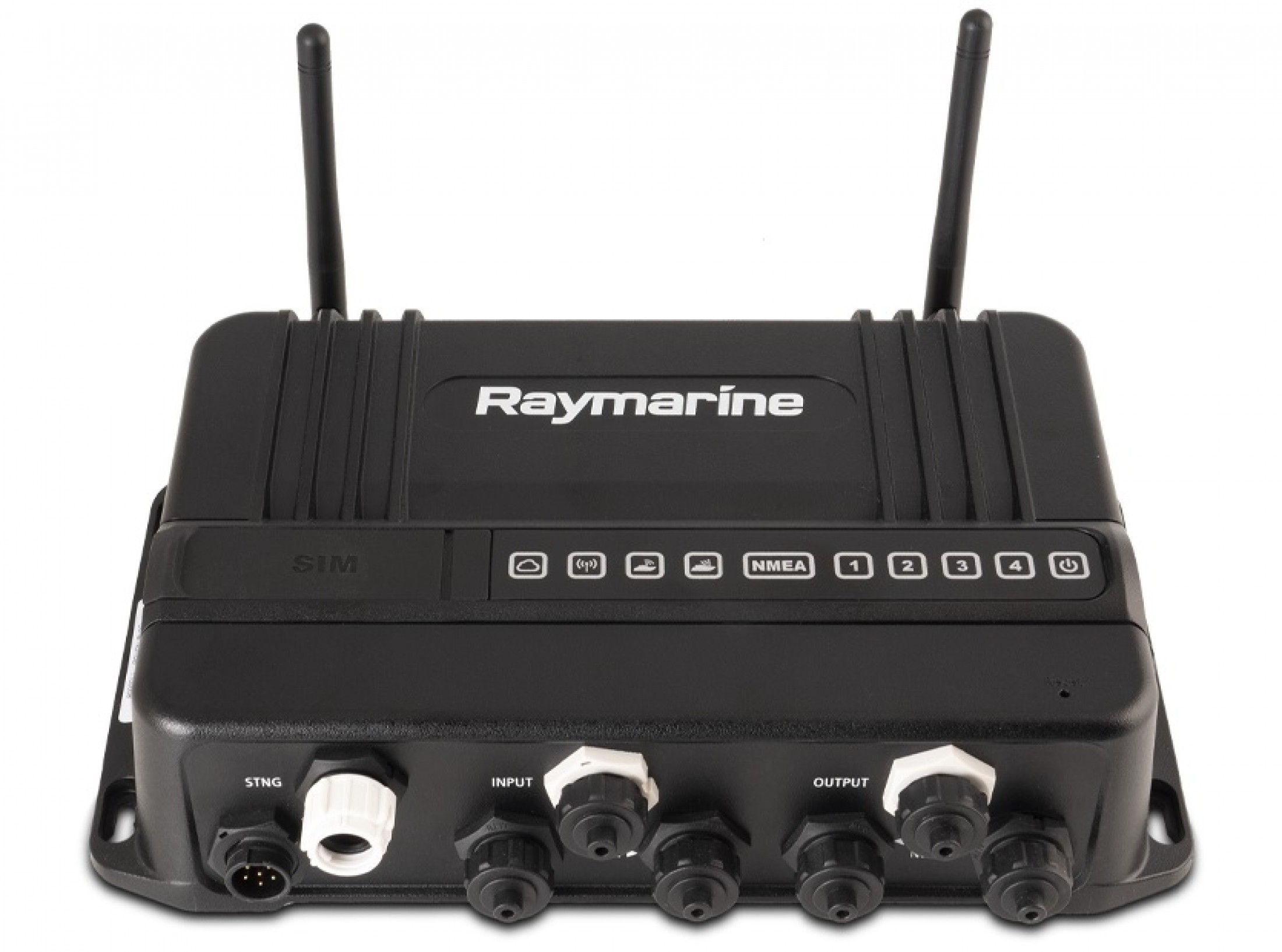

Raymarine Yachtsense Link Marine Mobile Router

Raymarine Yachtsense Link Marine Mobile Router

Model: E70640

REMOTE MONITORING
ALWAYS CONNECTED
STAY INFORMED

YachtSense Link is a multi-purpose marine mobile router equipped with Raynet Ethernet ports, mobile broadband connectivity, and onboard Wi-Fi. YachtSense Link allows crew and family to connect Axiom(R) displays, phones, tablets, and PCs to a unified onboard network. YachtSense Link automatically switches between marina Wi-Fi and mobile networks to ensure you are always connected. Combine YachtSense Link with the Raymarine mobile app for remote access to your Raymarine network and enjoy the added security of remote GeoFence vessel monitoring. YachtSense Link also features low-voltage digital switching / monitoring channels for controlling and monitoring onboard electrical devices like pumps, batteries, lighting, and more.

Specifications
Nominal supply voltage:

12 Vdc / 24 Vdc
Operating voltage range:	8 Vdc to 32 Vdc
Environmental Specification
Operating temperature range:	-25 degC (-13 degF) to + 55 degC (131 degF)
Storage temperature range:	-30 degC (-22 degF) to + 70 degC (158 degF)
Humidity:	up to 93% @ 40 degC (104 degF)
Water ingress protection:	IPx6
Physical Specification
Dimensions (w x h x d):	242.00 mm (9.53 in) x 162.20 mm (6.39 in) x 63.00 mm (2.48 in)
Weight	1.03 Kg (2.26 lb)
Wireless Network Specification
Boat Wi-Fi:	Wi-Fi access point mode frequencies: 2.4 GHz (2412 MHz to 2472 MHz 2422 MHz to 2462 MHz): 13.28 dBm
Dock WLAN:	Wi-Fi station mode frequencie 2.4 GHz:(2412 MHz to 2472 MHz / 2422 MHz to 2462 MHz): 14.79 dBm 5 GHz (5150 MHz to 5350 MHz / 5470 MHz to 5725 MHz): 14.94 dBm 5.8 GHz (5725 MHz to 5875 MHz): 13.74 dBm
Cellular / Diversity:	2G/3G/4G frequencie LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18 /B19/B20/B25/B26/B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8

What's in the Box:

YachtSenseTM Link Marine Cloud Router (supplied with grounding point fixings and protective caps fitted).
x4 mounting fixings (PA 4 x 25 mm self tapping screws).
Documentation pack
5-in-1 antenna (GNSS, Cellular, Diversity, DOCK WLAN) with 5 m (16.4 ft) cables and M20 nut and mounting gasket.
x2 Dipole antenna (BOAT Wi-Fi).
RayNet to RJ45 cable 1 m (3.3 ft).
SeaTalkng(R) spur cable 1 m (3.3 ft).
8Power cable with 8 A fitted fuse 1.5 m (4.9 ft).
x2 Input/Output (I/O) cables 0.5 m (1.64 ft).

SKU: #567201775759807
Weight: 5.40 lbs
Brand: Raymarine

Model: E70640
Shipping Dimensions: 0.00" x 0.00" x 0.00"
