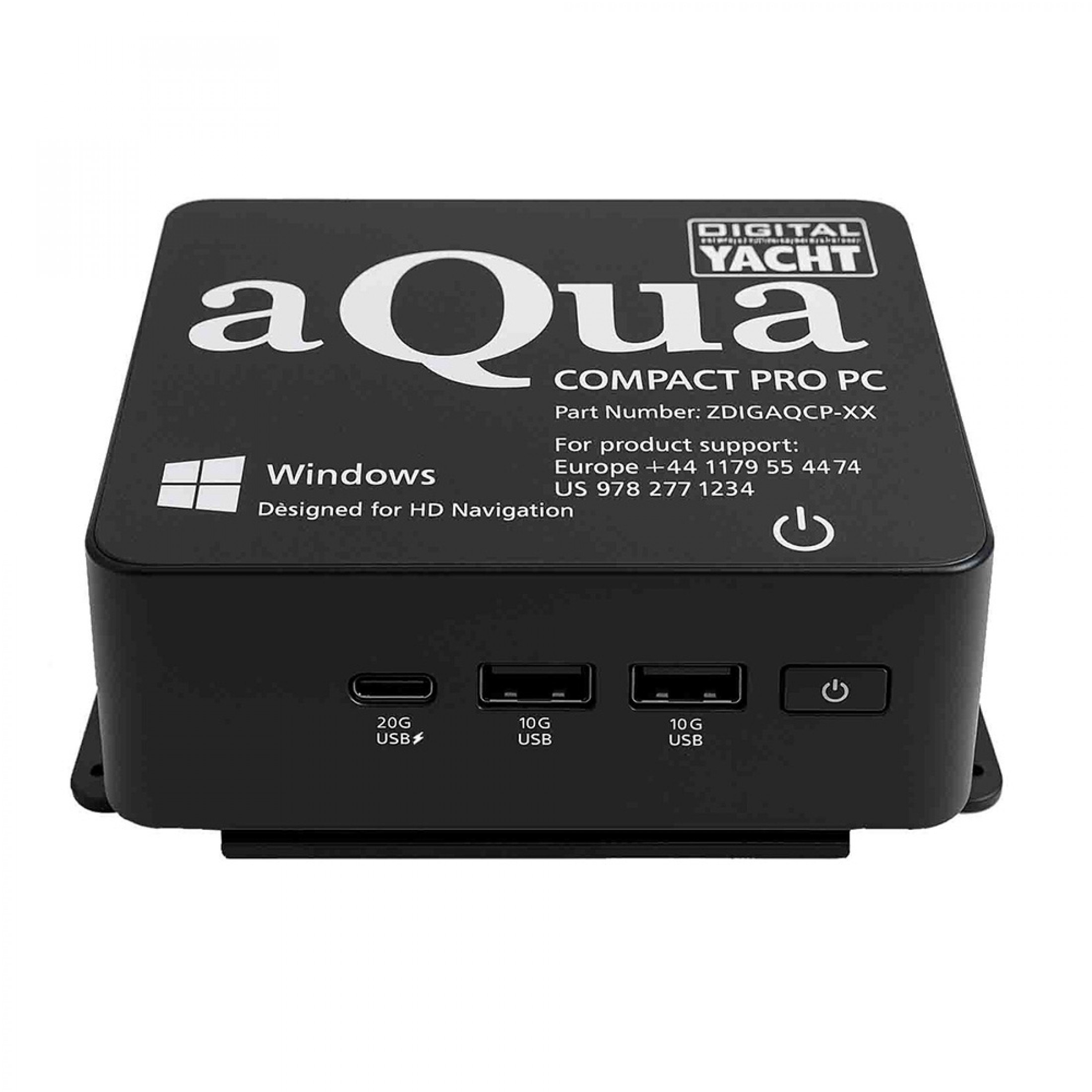

Aqua Compact Pro+ PC
The Aqua Compact Pro+ utilizes the latest generation Intel Core i7 processor for modern 3D charting and radar overlay applications. Despite this, average power consumption is around 25W, keeping battery drain to a minimum.
The new Aqua Compact Pro+ now has a larger rugged 480GB solid state hard drive too, and it's fitted with 8GB of RAM. In terms of connectivity, there are 4 x USB ports and an audio headset connector.
The new unit supports up to 3 displays via a dedicated HDMI connector and also a Thunderbolt/USB-C connector, which can support displays with an appropriate cable. 7.1 multichannel digital audio is supported over these display connections, too, so it’s ideal as an on-board media entertainment center.
Network connectivity is provided by a wired Ethernet Gigabit port as well as the latest Intel wifi card, which supports 802.11ax protocols (2.4 and 5GHz with up to 3x bandwidth) and has built-in Bluetooth 5 for easy connectivity.
The Aqua Pro+ has found markets in commercial fishing where users want charting, radar, and bathymetry/sonar overlays, which demand fast 3D graphics. The Aqua Compact Pro+ is optimized for Maxsea TimeZero systems. We are also seeing many ocean racing yachts opt for these systems for the best-in-class animated weather routing displays. The new Aqua Compact Pro+ is also supplied with an external voltage stabilizer to ensure 100% reliability on low-voltage systems, which are affected by voltage drops.
Specifications
- The perfect solution for demanding navigation applications like MaxSea/Nobeltec TimeZero, even with radar and 3D integration
- Direct 12v DC Operation (8-19v input), approx 25W power consumption
- Intel i7 processor (latest generation)
- 8GB RAM and super-fast 480GB rugged solid-state drive
- 3 x display outputs – full-size HDMI and USB-C
- Bluetooth 5 and Dual Band WiFi built in (plus wired gigabit network port)
- 4 x USB Type-A ports with charging mode on the front panel port
- 2 x Thunderbolt ports
- 1 x Ethernet port
- Front panel-mounted audio jack for audio in/out – ideal as a media center
- Windows 11 operating system
- Built-in mic for Cortana speech control and recognition
- Just 115mm x 110mm x 50mm
- Easy installation with supplied mounting bracket, power cable, and Windows License
- LINUX option at no extra charge
