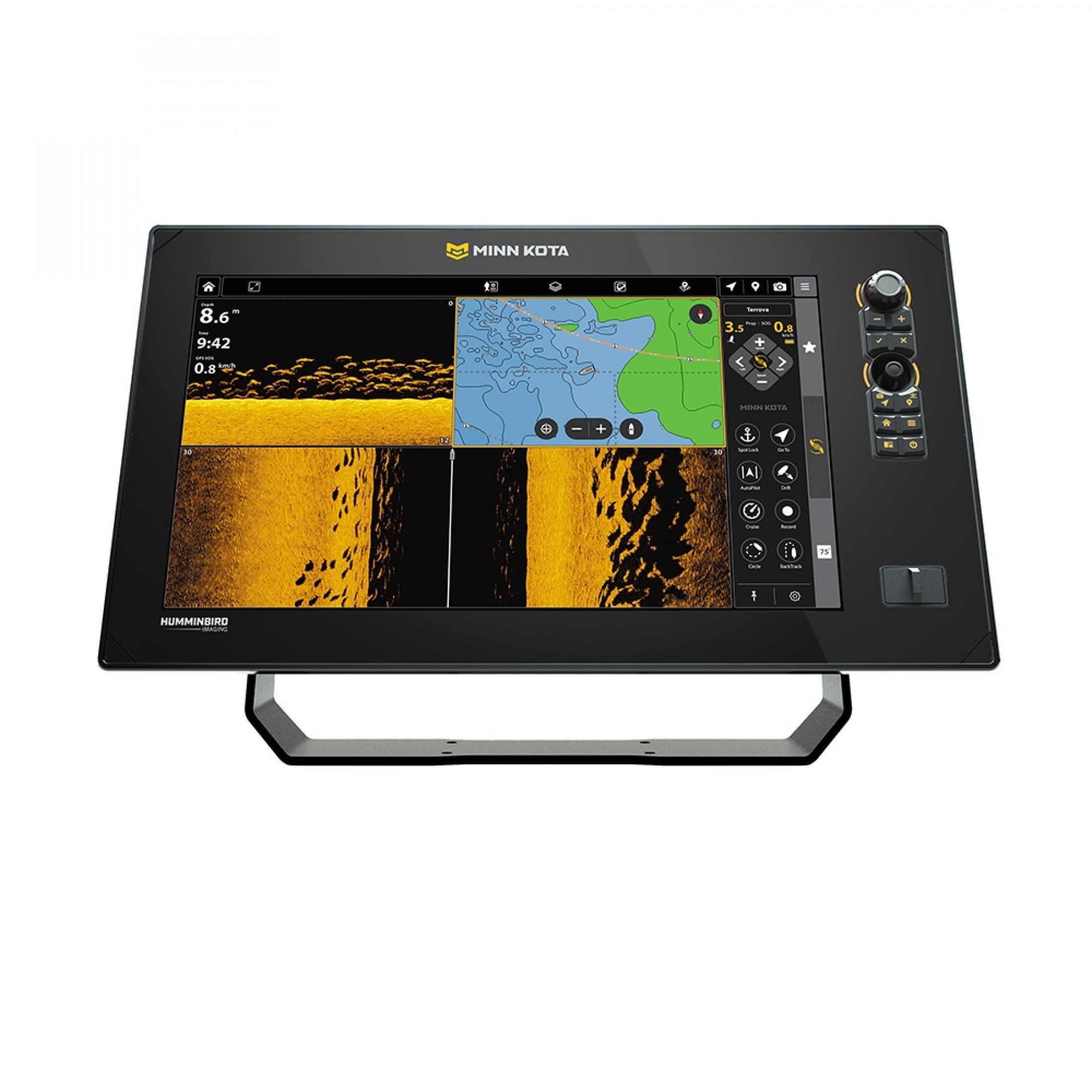

A16 CHO VX 16" GPS/Fishfinder without Transducer

The Minn Kota™ A Series is a top-of-the-line fish finder that gives you one of the industry’s largest full-HD screens. With high-level detail to get you on the fish faster, you can easily connect more displays, devices, and transducers with HDMI in and out ports and dual ports for both Ethernet and sonar. State-of-the-art Humminbird Imaging™ technology gives you a clearer, more complete picture of structure and fish with cutting-edge sonar, including Dual Spectrum CHIRP, Side Imaging, and Down Imaging. Innovative navigation features like Draw and Navigate™ make getting to your spot simple—just draw a course with your finger on the fish finder screen, and the trolling motor takes you to your spot. A Series clarity means you see the sharpest images, even in rain, high sun, or when wearing polarized lenses. It all comes together seamlessly and easily, with wireless integration controlled by the Minn Kota Fishing App. Make your fish finder the brains of your boat. Let it operate your Minn Kota trolling motor, sonar, and shallow water anchors so you can focus on the fish.

Features:

• High-Def Display Engineered for Polarized Eye Relief
• Intuitive Cross Touch®
• Quick-Launch Home Screen
• NMEA 2000® | Bluetooth®
• Ethernet | Wi-Fi | HDMI Video In/Out
• Dual Ports For Ethernet And Sonar
• Dual Spectrum CHIRP
• Side/Down Imaging
• Supported Frequencies: 50/83/200/455/800 kHz, DSC CHIRP, MEGA
• Down Imaging Depth: 125 ft (38 m)(800 kHz), 250 ft (76 m) (MEGA), 400 ft (122 m) (455 kHz)
• Side Imaging Range (Side-To-Side): 250 ft (76 m) (800 kHz), 500 ft (152 m) (MEGA), 800 ft (244 m) (455 kHz)

Control Head Only Model

This model does not include a transducer. Connect to compatible Minn Kota® trolling motors with built-in sonar, add accessory transducers including live sonar, or share sonar data from a networked Minn Kota® or Humminbird® fish finder for enhanced navigation and boat control.

Industry-leading Sonar - Powered by Humminbird Imaging™

Unlock more fish, more structure, and unprecedented underwater clarity with Side Imaging® and Down Imaging®, providing views up to 400 feet below and out to either side of your boat. See and stay on the fish with Dual Spectrum CHIRP sonar– providing exceptional 2D sonar with superior target separation.

One Seamless Fishing System

Minn Kota® trolling motors, fish finders, maps, sonar, and shallow water anchors all work together for one purpose—fishing. The Minn Kota system seamlessly integrates what your fish finder sees with what your trolling motor does, turning sonar and mapping data into automated and precise boat positioning so you can stay focused on fishing.

Intelligent Depth Control™

Avoid shallow water and protect your equipment—this feature detects depth changes, alerts you immediately, and if necessary, automatically engages Spot-Lock® and deploys your shallow water anchors.

Wireless Connectivity

From innovative navigation features to precise boat positioning, built-in connectivity lets you wirelessly manage compatible gear seamlessly across your Minn Kota® system. Simplify the setup and use of your integrated system without complex rigging or cables—keeping everything connected, cleaner, and more organized.

Display with Best-in-Class Clarity and Brightness

Never miss a thing with the incredible detail of sonar and chart images. Plus, the high-resolution touchscreen not only responds instantly in wet conditions—it makes it easy to see the sharpest images even in rain, high sun, or when wearing polarized lenses.

Minn Kota® Fishing App Manages Your Boat

Manage your boat on or off the water, for total command of your Minn Kota® fish finder, waypoints, trolling motor, and shallow water anchors right at your fingertips. Sync the app to your fish finder to help you scout, group, sort, and edit waypoints with ease.

AutoChart® Live

Create real-time maps of your fishing spots, with access to Minn Kota® Maps features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart® Zero Line SD cards for virtually endless AutoChart® Live mapping capacity.

Simplified Software Updates

Simplify your software updates by downloading over Wi-Fi, offering a faster solution than physical SD cards or Bluetooth. Simply connect your Minn Kota fish finder to Wi-Fi, download updates on your fish finder, then push them through to networked fish finders, trolling motors, and advanced sonar.

Cross Touch® Interface

Enjoy eye-popping detail with a display that lets you control your view to match the way you fish, touchscreen or keypad—it's up to you.

Media Tool – Capture & Share Underwater Views

It's easy to share your best on-water moments. Capture screenshots and record the imaging on your screen 30 seconds into the past, or up to two minutes into the future. Then easily view, transfer, edit, and share using the Minn Kota® Fishing App.

Compatible with Live Sonar

Watch fish move, react, and strike your lure with the clarity of Live Sonar in Forward, Down, or Landscape Mode. (sold separately)

Ethernet Networking

High-speed Ethernet allows you to easily build a powerful fishing system to help you make the most of your time on the water. It's simple to connect multiple fish finders, or upgrade to add-on technologies like Live Sonar and radar.

Compatible with Minn Kota® Maps Premium

Minn Kota® provides the most complete offering of premium chart options to anglers everywhere. Give your mapping capabilities a boost with a more complete view of the world below with optional Minn Kota® Maps Premium.

NMEA 2000 Networking Built-in

From boat performance to weather and water conditions, get even more information when you connect an accessory NMEA 2000 network to your control head. NMEA 2000 networking helps you easily make sense of it all.

Warranty

2-year limited warranty included, extended to a 3-year limited warranty with product registration.

In The Box:

• A16 CHO
• Power adapter
• Gimbal bracket

Display

• Display Size - Diagonal: 15.6"
• Dimension w/ Gimbal: 17.65" W x 11.05" H x 4.93" D
• Dimension w/o Gimbal: 17.65" W x 10.13" H x 5.48" D
• Display Pixel Matrix: 1920H x 1080V
• Display Type: Color TFT
• Display Colors Grayscale: 24-bit
• HDMI Compatible: Yes

Sonar

• Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
• Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
• Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
• CHIRP - Frequencies Supported: Full Mode (150-220 kHz), Narrow Mode (180-240 kHz). Wide Mode (140-200 kHz), Optional Deepwater (28-250 kHz)
• Sonar Frequencies Supported: 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
• Depth-Sonar: 1,200 ft (standard transducer), 3,500 ft (optional Airmar CHIRP)
• CHIRP - Imaging-Frequencies Supported (MIN): 455 kHz DI+ (420-520 kHz), 800 kHz DI+ (800-860 kHz), MEGA DI+ (1100-1200 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz SI+ (780-840 kHz), MEGA SI+ (1050-1175 kHz)
• Depth-Down Imaging (MIN): 125 ft (800 kHz), 250 ft (MEGA), 400 ft (455 kHz), 3,500 ft
• Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 500 ft (MEGA), 250 ft (800 kHz)
• Screen Snapshot: Included
• Sonar Recording: Included
• GPS Chartplotting: Included
• GPS Receiver: Internal
• GPS Trackplotting: Included
• Waypoints, Routes, Tracks/Points: 10,000, 50, 50/20,000
• NMEA2000: Included
• Custom Digital Readout: Yes
• Custom View Selections: Yes
• Speed: Included
• Temperature: Built-in
• Temperature Alarm: Yes
• Temperature Graph: No

Technical Specifications:

• Memory Card Slot: Dual Micro SD
• Power Draw: 3.5 Amps
• Power Input: 10.8-20 VDC
• Power Output Peak-To-Peak: 8000 Watts
• Power Output RMS: 1000 Watts
• Minn Kota Talon Shallow Water Anchor Compatibility: Yes
• Radar Compatibility: Yes
• 5-Port Ethernet Switch Compatibility: Yes
• AIS Compatibility: Optional
• Autopilot Compatibility: Yes
• Heading Sensor GPS (NMEA 0183) Compatibility: No
• Heading Sensor GPS (NMEA 2000) Compatibility: Yes
• View Preset Keys: Yes
• X-Press Menu System: Yes
