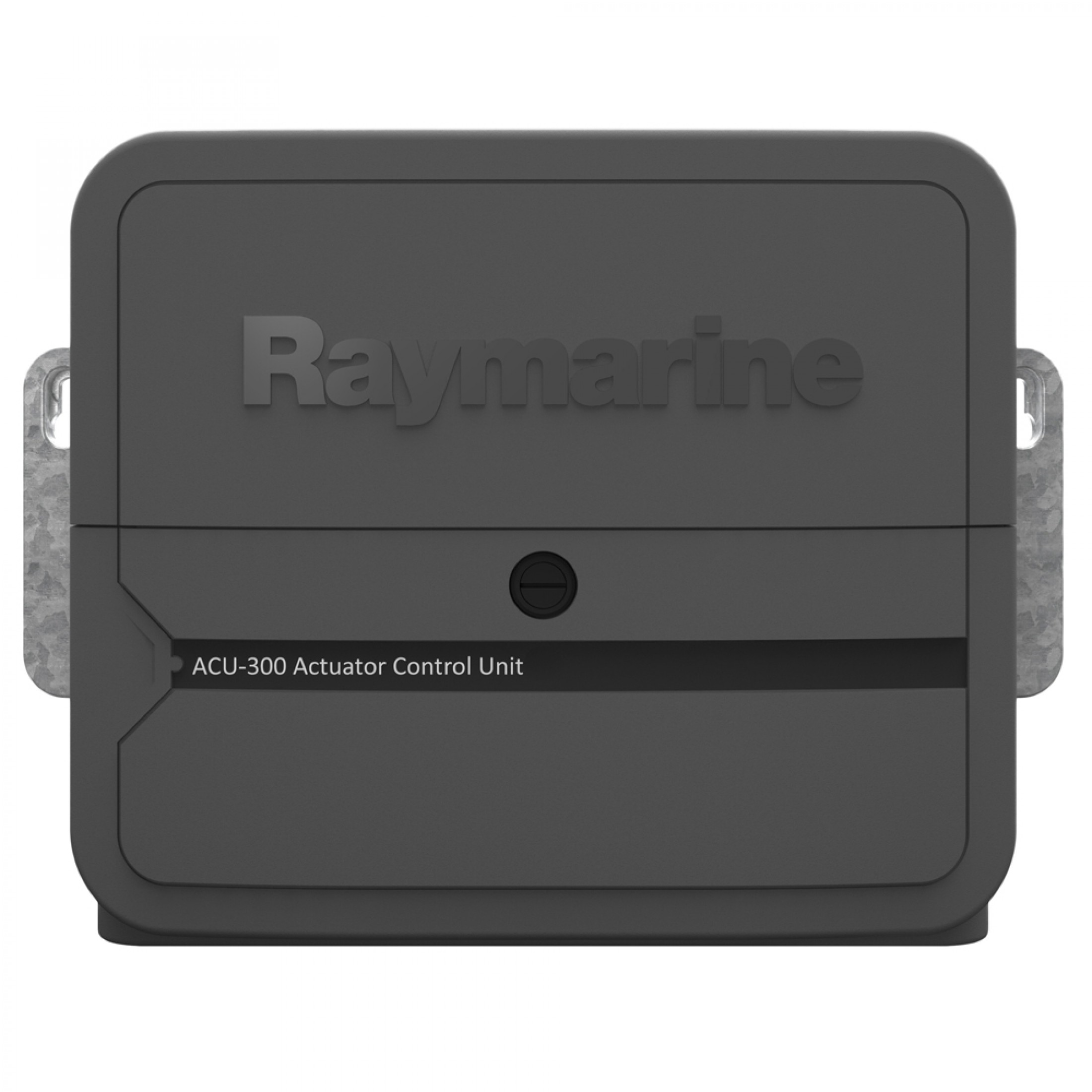

Raymarine ACU-300 Actuator Control Unit f/Solenoid Contolled Steering Systems & Constant Running Hydraulic Pumps

Raymarine Evolution ACU Specifications

Model	ACU-100	ACU-200	ACU-300	ACU-400
	E70098	E70099	E70139	E70100

Drive Current Output	Maximum continuous 7 A at supply voltage	Maximum continuous 15 A at supply voltage	Maximum continuous 5 A at supply voltage	Maximum continuous 30 A at supply voltage
Drive Clutch Output	No clutch connection	Up to 2.0 A continuous, selectable between 12 /24 V	No clutch connection	Up to 4 A continuous at 12 V on 12 V systems, Up to 4 A continuous at 24 V on 24 V systems, Up to 4 A continuous at 12 V on 24 V systems
Connections	Rudder reference sensor Power Drive motor Ground	Rudder reference sensor Sleep switch Power Drive motor Drive clutch Ground	Rudder reference sensor Sleep switch Power Solenoid drive out / return Ground	Rudder reference sensor Sleep switch Power Drive motor Drive clutch 723193767962 Ground Digital Input / Output (DIO)
Nominal supply voltage	12 V	12 V or 24 V
Operating voltage range	10.8 V to 15.6 V dc	10.8 V to 31.2 V dc
Power consumption (standby) - main power supply	300 mA (12V)	300 mA (12/24 V)
Power consumption (standby) - SeaTalk^ng power supply	No power supply to SeaTalk^ng&nbs p;	20 mA (12V)
SeaTalk^ng LEN (Load Equivalency Number)	1
SeaTalk^ngPower out	No power supply to SeaTalk^ng	3 A at 12 V (fuse protected at 3 A)
Data connections	SeaTalk^ng
Installation environment	Operating temperature: -20°C to +55°C (-4°F to +131°F) Storage temperature: -30°C to +70°C (-22°F to +158°F) Relative humidity: max 93%
Waterproof rating	Connector panel: IPX2 Drive electronics: IPX6	Drip resistant
Dimensions (W x H x D)	180 mm x 140 mm x 52 mm (7.1 in x 5.5 in x 2.0 in)	285 mm x 211.5 mm x 64.5 mm (11.2 in x 8.3 in x 2.5 in)
Weight	0.6 kg (1.32 lbs)	2.2kg (4.84 lbs)
Conformance	Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2

SKU: #68031632859362
Weight: 7.20 lbs
Brand: Raymarine

Model: E70139
Shipping Dimensions: 8.00" x 17.00" x 12.00"
