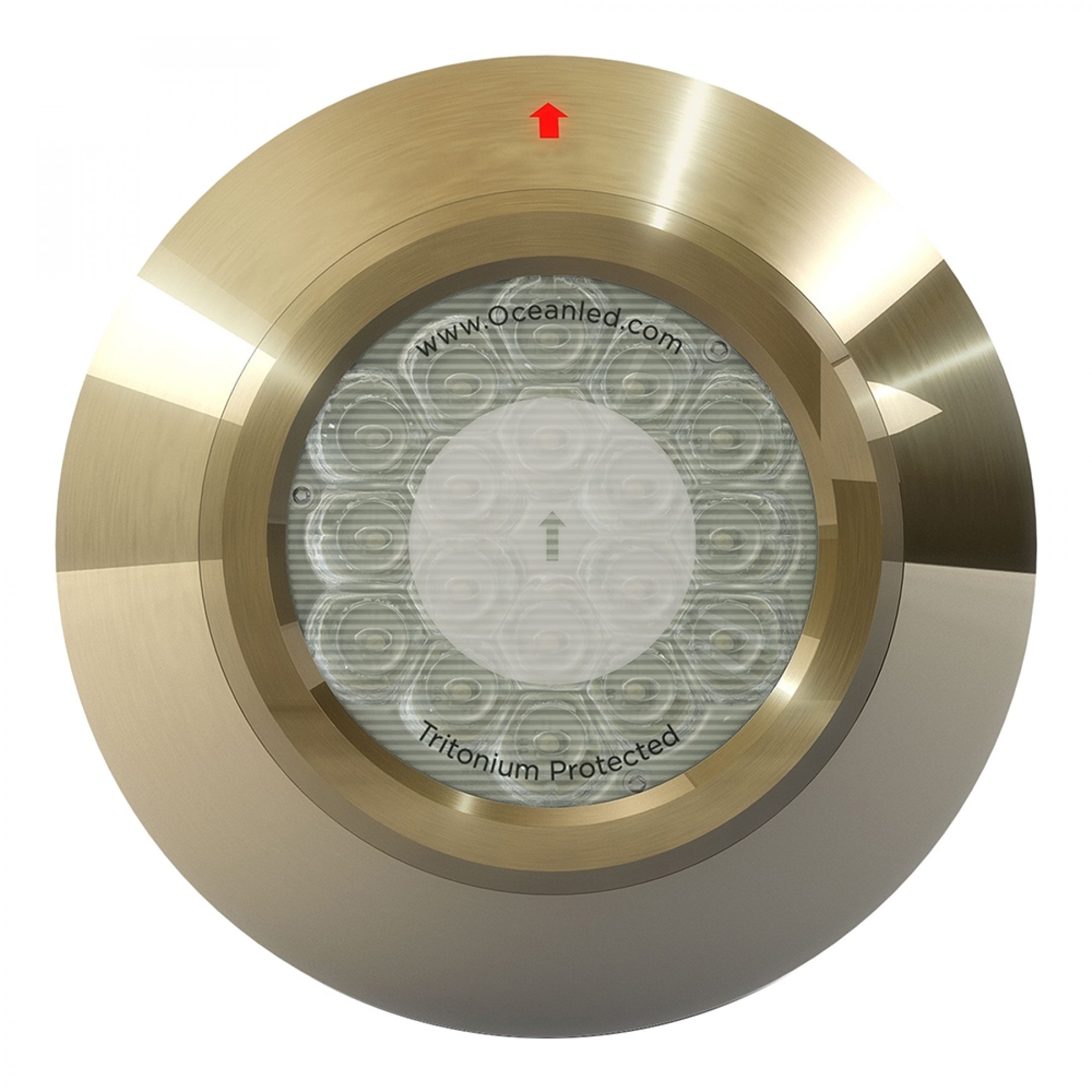

Pro Series TH HD Gen2

The original Thru-Hull with the world's smallest hole cut-out for a thru

hull light at only 1" is now brighter again - the 2010TH HD Gen2 model is

67% brighter than its predecessor by exploiting the next generation of High

Definition LEDs from Cree.

With 7,000-fixture lumen brightness and a 1-inch (25mm) profile head make

the 2010TH the ideal underwater light for transom mount applications.

Suitable for all hull types up to and over 65' (20m) using 2-6 lights with

spacing of 3-5' (1-1.5m) - for metal hulls, choose the Delrin Isolation

Sleeve accessory. Deutsch plug-and-play quick connectors make this light a

quick fit. Maintenance is easy; just wipe away marine growth from its

scratch resistant TritoniumT glass lens. Three super bright LED color

options.

For an even brighter light choose 3010TH HD Gen2. For a light with a lower

profile head for hull mount applications, or that can be exchanged without

hauling, choose from our XFM models. For a light with color-change

capabilities choose from our Colours models.

• 12/24vDC (AC Upgrade Available)
• 40,000+ Hour Life
• Tritonium™ Marine Growth Protection
• Plug & Play
• Aluminium Bronze AB2
• Factory Sealed
• Reverse Polarity Protected

Mounting Recommendations:

Boat Size:up to 65' (20M)

Transom Spacing:3-5' (1.0-1.5M)

Transom Quantity: 2-6

Hull Spacing:3-6' (1.0-1.8M)

Installation Depth (to top of fixture): 8-10" (200-250mm)

Technical

Light Output Equivalent To: 250W HID Metal Halides

Fixture Lumens (total light output from a finished fixture): 7,000

Current/Amp Draw (DC) (AC Upgrade Available): 12VDC 5.8A / 24VDC 2.9A

Current/Amp Draw (AC): 110VAC 50/60HZ 0.76 / 240VAC 50/60HZ 0.35A
